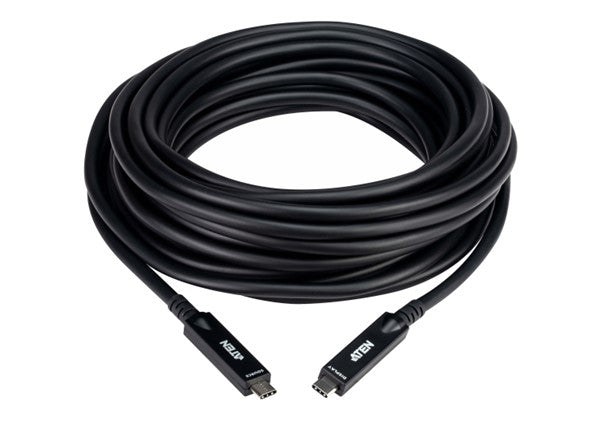

Aten UE3410F USB-CActive OpticalCable

Aten UE3410F — 10m USB-C full-featured active optical cable supporting 60W Power Delivery, dual operating modes for DP 2.1 or USB 3.2 Gen2, and EMI/RFI resistance for medical, conference, and education environments.

The UE3410F carries USB-C signals over optical fibre for 10 metres with no signal degradation, supporting 60W Power Delivery simultaneously. Two operating modes address different use cases: 2-lane mode provides DisplayPort 1.4 plus USB 3.2 Gen2 at 10 Gbps for full-bandwidth data transfer alongside video; 4-lane mode switches to DisplayPort 2.1 UHBR10 for the highest video quality (up to 4K @ 60 Hz) alongside USB 2.0 at 480 Mbps. The optical fibre construction provides high resistance to EMI and RFI interference, making it suitable for sensitive environments including hospitals and medical facilities. The UE3415F extends this to 15m if a longer run is needed.

Key features

• 10m USB-C active optical cable with 60W Power Delivery
• 2-lane mode: DP 1.4 + USB 3.2 Gen2 (10 Gbps)
• 4-lane mode: DP 2.1 UHBR10 + USB 2.0 (480 Mbps) — up to 4K @ 60 Hz
• High EMI/RFI resistance — suitable for medical and sensitive environments
• Full-featured USB-C: video, data, and power over one cable

Specifications

• Length: 10m
• Cable type: Active optical (AOC)
• Connector: USB-C to USB-C
• Power Delivery: Up to 60W
• Mode 1 (2-lane): DP 1.4 + USB 3.2 Gen2 @ 10 Gbps
• Mode 2 (4-lane): DP 2.1 UHBR10 + USB 2.0 @ 480 Mbps, up to 4K @ 60 Hz
• See also: UE3415F for 15m version
