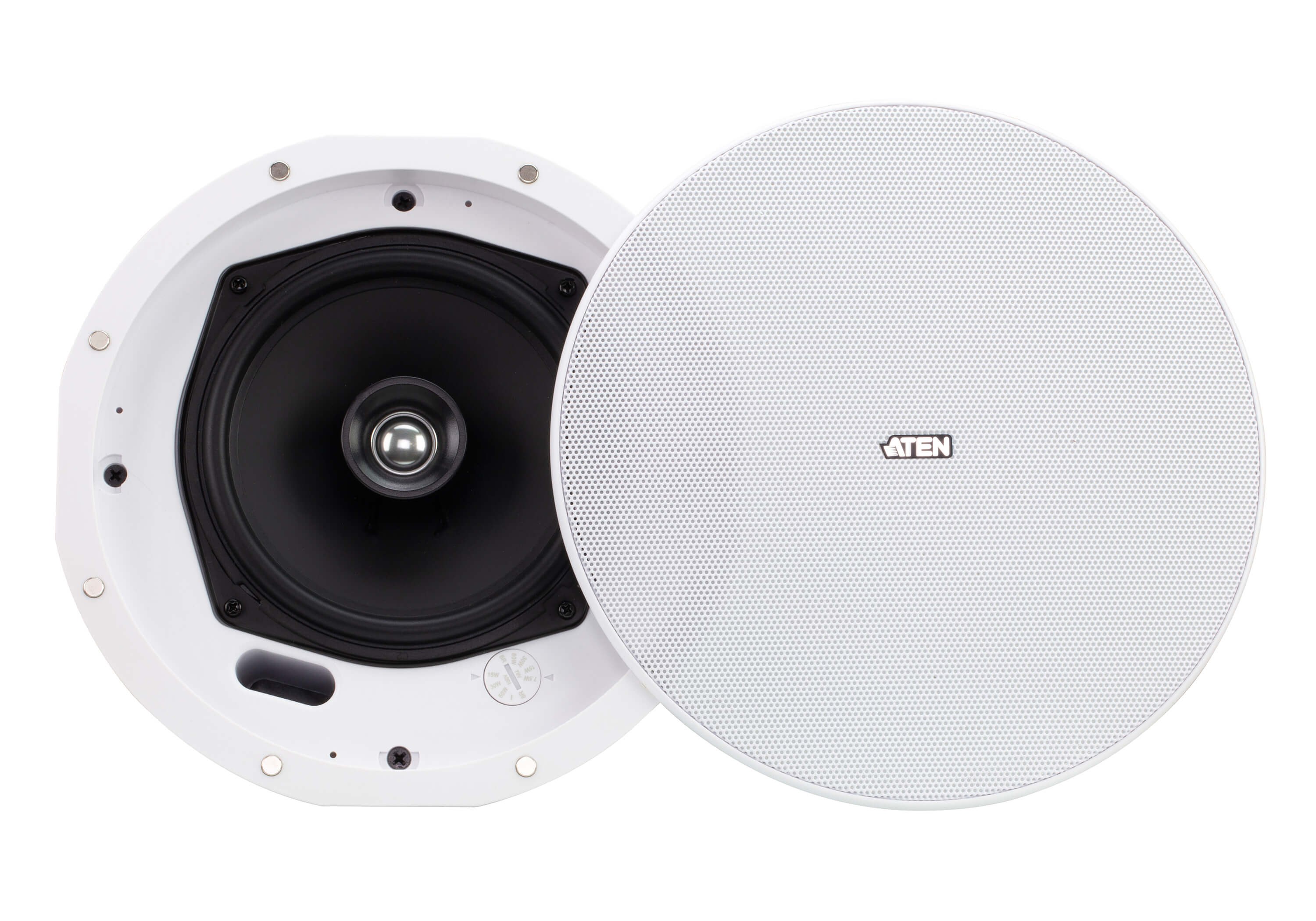

Aten AS1066.5-inch CeilingSpeaker

Aten AS106 — pair of 6.5-inch coaxial 2-way ceiling loudspeakers with 60 W RMS power handling, neodymium drivers, and 70 V/100 V line or 8Ω operation for commercial AV installations.

The AS106 is sold as a matched pair of coaxial 2-way ceiling speakers, each fitted with a 6.5-inch woofer and a 20 mm dome tweeter. The coaxial neodymium magnetic driver minimises phase issues by ensuring sound waves from both the woofer and tweeter originate from the same point, delivering coherent, consistent coverage across the listening area. Each speaker handles 60 W RMS / 120 W peak (8Ω) across a 100 Hz to 20 kHz bandwidth. The integrated matching transformer supports 70 V and 100 V distributed audio lines as well as direct 8Ω connection, suiting a wide range of commercial installation types — classrooms, meeting rooms, hospitality, and retail.

Key features

• 6.5-inch coaxial 2-way design — woofer and tweeter share the same acoustic centre
• Coaxial neodymium magnetic driver for minimised phase issues
• 60 W RMS / 120 W peak power handling (8Ω)
• 100 Hz – 20 kHz frequency response
• Built-in matching transformer: 70 V / 100 V line or 8Ω operation

Specifications

• Woofer: 6.5 inch
• Tweeter: 20 mm dome
• Power: 60 W RMS / 120 W peak
• Impedance: 8Ω
• Frequency response: 100 Hz – 20 kHz
• Line voltage: 70 V / 100 V distributed line or 8Ω direct
• Sold as: Pair
