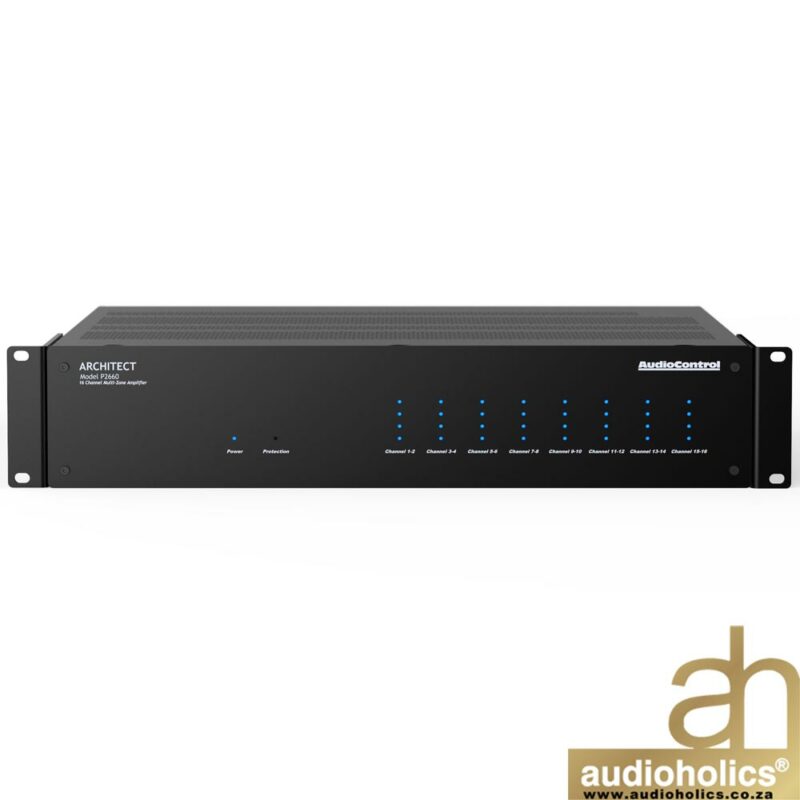

AudioControl ACP-AZ-P2660 — 16-channel Class D multi-zone amplifier delivering 100W per channel at 8 ohms (200W bridged at 4 ohms) for high-power distributed audio across residential and commercial installations.
The ACP-AZ-P2660 is a 16-channel variant in AudioControl's Architect Zone amplifier series, designed for installations where both high channel count and headroom are required. At 100W per channel into 8 ohms, it drives demanding speaker loads with clarity, and the bridged 4 ohm mode provides 200W for zones requiring additional power. Suitable for large homes, multi-room commercial systems, and hospitality environments. See the ACP-AZ-P2680 for a variant with different power rating.
Key features
- 16-channel Class D amplification
- 100W per channel at 8 ohms; 200W bridged at 4 ohms
- Multi-zone: up to 16 independent zones
- Suitable for high-power distributed audio requirements
- Analogue inputs
Specifications
- Model: ACP-AZ-P2660
- Channels: 16 (Class D)
- Power output: 100W/ch at 8 ohms; 200W bridged at 4 ohms
- Networking: Analogue inputs
Need help choosing? Contact us at 010 288 2024 or support@audicoonline.co.za.
( Specifications )
| Frequency Response | 20Hz - 20kHz |
| Additional Features | Daisy Chain Capability |
| Adjustable Gain | Yes |
| Amplifier Class | Class D |
| Application | Home, Commercial Audio Systems |
| Auto Turn-On | Yes |
| Brand | AudioControl |
| Bridgeable | Yes |
| Bridged Power Output @ 8 Ohm | 400W |
| Certifications | CE, RoHS |
| Color | Black |
| Controllable via App | Yes |
| Country of Manufacture | USA |
| Customizable | Yes |
