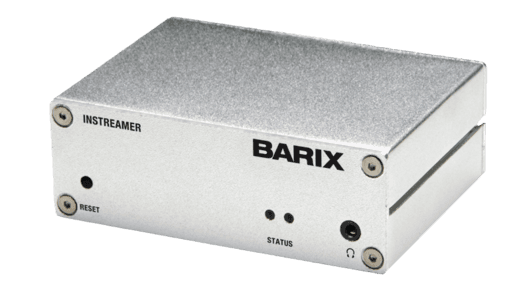

Barix Instreamer - Network Audio Encoder

The Barix Instreamer is a high-quality network audio encoder that converts analog audio sources into configurable digital formats (MP3, PCM, G.711, G.722) and streams them in real time via TCP, UDP, Shoutcast, or Multicast RTP. Ideal for broadcast, surveillance, and VoIP applications, it offers reliable and low-latency Audio over IP encoding.

Key Features

• Supports G.711, G.722, PCM linear encoding
• Low latency MP3 encoding
• Shoutcast/Icecast source capability
• Audio level supervision with SNMP trap generation
• IP streaming via TCP, UDP, RTP, Multicast
• Stereo line level input (RCA connectors)
• RS-232 serial port for control and metadata input
• Powered via micro USB with included external power adaptor

Applications

• Live IP audio encoder for streaming applications
• Source encoder for IP audio distribution
• Background music and music-on-hold encoder for VoIP
• Shoutcast/Icecast source encoder
• Low latency IP audio encoder for multichannel applications
• Confidence monitoring and VOX switch for broadcast

Specifications

Electrical

• 5V, max. 1A via Micro-B USB connector
• External power adaptor, 100-240VAC, 5W (included)

Ethernet

• RJ45, 10/100Mbps auto, Link & Activity LEDs
• Protocols: TCP/IP, UDP, RTP, DHCP, SNMP, SIP
• AutoIP, SonicIP, IPZator for easy address assignment

RS-232

• 300 to 230,400 Baud asynchronous, 7/8 bit
• DSub 9 pin male connector
• Serial tunnel, control and metadata input support

Audio Input

• RCA connectors, unbalanced, 2 kΩ impedance
• Clipping level: 5.3 dBu, 4 Vpp
• Frequency response (-3dB): 20 Hz to 20,000 Hz*
• Signal to Noise Ratio: 89 dB, THD <0.03%
• Stereo crosstalk: -89 dB
• Input signal attenuable by software (-3 to +19.5 dB)

Headphone Output

• 3.5 mm jack
• Volume adjustable via browser
• IP address announcement (SonicIP)
• General purpose audio output depending on codec

Audio Formats

• MP3 encoding/decoding up to 192/320 kbps
• VBR and CBR support
• PCM 16-bit @ 8, 16, 22.05, 24, 32, 44.1, 48 kHz
• G.711 uLaw and aLaw (sample rates same as PCM)

Mechanical

• Aluminium case, 225 g, separate mounting bracket included
• Dimensions: 108 mm x 38 mm x 78.7 mm (4.25" x 1.5" x 3.1")

Software Environment

• Proprietary multitasking OS
• Application firmware packages available from Barix
• Development environment for custom functionality (ABCL development kit) available free of charge

MTBF

• Minimum 540,000 hours (calculated according to MIL217F at 25°C)

* Frequency response depends on used codec; best results at 48 kHz PCM.
