Product image set4 images
01Verified catalogue source

Product copy, images, availability cues, and policy labels are drawn from Audico's catalogue records.

02Specialist purchase path

Visible-price products are prepared for cart handoff; complex or POA products route to Audico guidance.

03Matched to your world

Category 101 within Uncategorised.

Compatibility engine

Check the fit before you buy.

Best assessed as category 101 for the customer's actual room, source and budget.

Works well with

  • Amplifiers or receivers matched to the speaker load and room size.
  • Suitable speaker cable, wall brackets or stands where required.

Check first

  • Confirm amplifier power, impedance and the listening distance.
  • Check placement, mounting and cable route before ordering.

Visible-price product with specialist fit still recommended before final checkout.

Why it belongs here

A confident final check before the cart.

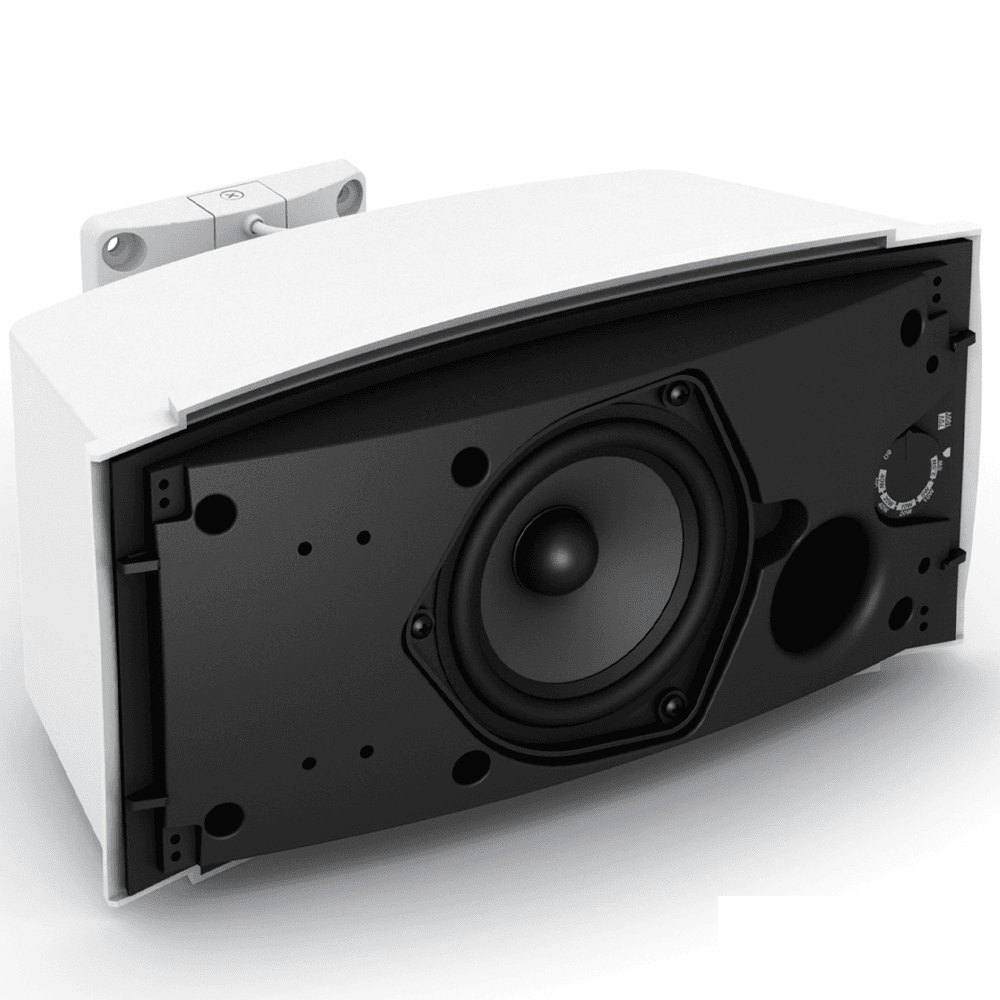

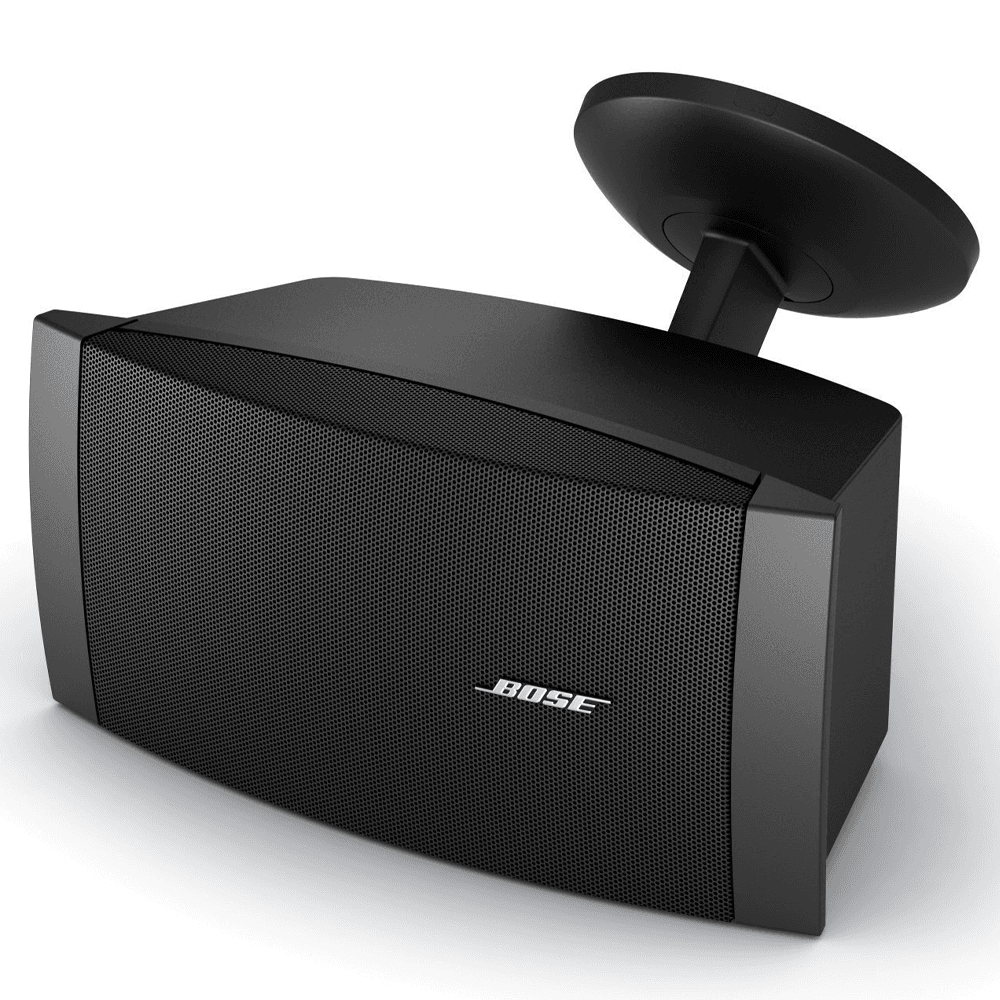

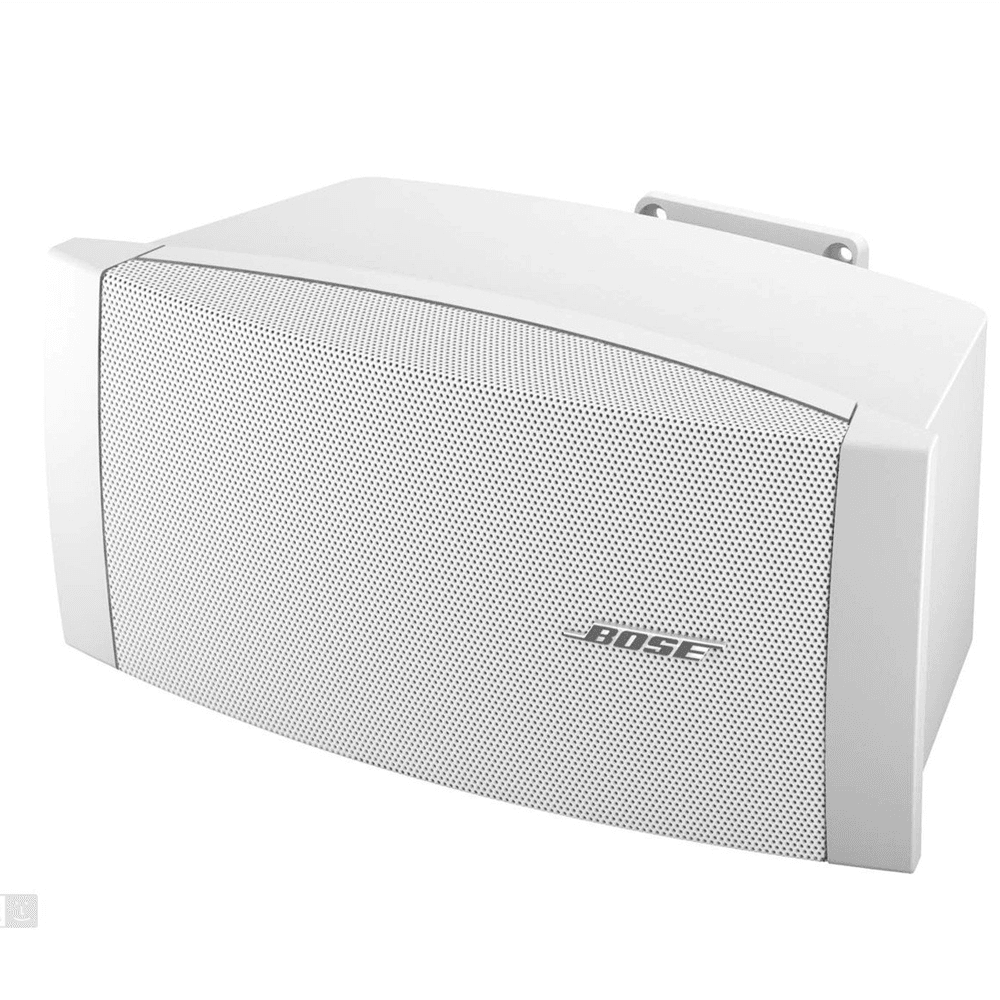

The Bose FreeSpace DS40SE Wall Mount Speaker delivers clear, full-range sound, perfect for foreground and background music as well as paging applications. Designed for easy installation and versatile mounting, it ensures consistent tonal quality across the FreeSpace DS product family. Key Features 4.5" (114 mm) full-range driver in a ported enclosure for surface mounting Simple 1->2->3 installation system with adjustable pitch and yaw Integrated multi-tap transformer with thumb wheel adjustment for easy tap changes Consistent voicing across DS16, DS40, and DS100 loudspeakers for seamless system integration Supports multiple mounting options: wall, ceiling, pole, and junction boxes Durable PC/ABS textured enclosure with IP55 outdoor rating Specifications Frequency Response (+/-3 dB): 80 Hz - 17 kHz Frequency Range (-10 dB): 70 Hz - 19 kHz Nominal Dispersion: 125° H x 125° V Long-Term Power Handling: 40 W (160 W peak) Sensitivity (SPL / 1 W @ 1 m): 87 dB SPL Maximum SPL @ 1 m: 103 dB SPL (109 dB SPL peak) Nominal Impedance: 8 Ω (transformer bypassed) Enclosure: PC/ABS, textured Environmental Rating: Outdoor per IEC 529 IP55 Connectors: Three-terminal barrier strip integrated on mounting bracket; optional ceramic connector and thermal fuse available Wire Gauge: 18 AWG (0.8 mm) to 14 AWG (2.0 mm) Mounting: Included bracket supports horizontal or vertical mounting with pitch and yaw adjustment; rear insert sized for M4 x 14 mm screw for safety chain Dimensions: 159 mm H x 326 mm W x 175 mm D (6.3" x 12.8" x 6.9") Depth with Wall Mount Bracket: 238 mm (9.4") Net Weight: 3.9 kg (8.5 lb) Colour Options: Black, White, Paintable What's in the Box 1 x Bose FreeSpace DS40SE Loudspeaker 1 x Mounting Bracket

Product details

Name
Bose Freespace DS40SE - Wall Mount Speaker
Brand
Bose
Model
BOSE-DS40SE
SKU
Not supplied
MPN
Not supplied
Commerce action
local-proof-only

Product images

Product details

Name
Bose Freespace DS40SE - Wall Mount Speaker
Brand
Bose
SKU / MPN
/
Breadcrumb world
Uncategorised
