BSS EC-8BVSoundweb ContrioEthernet

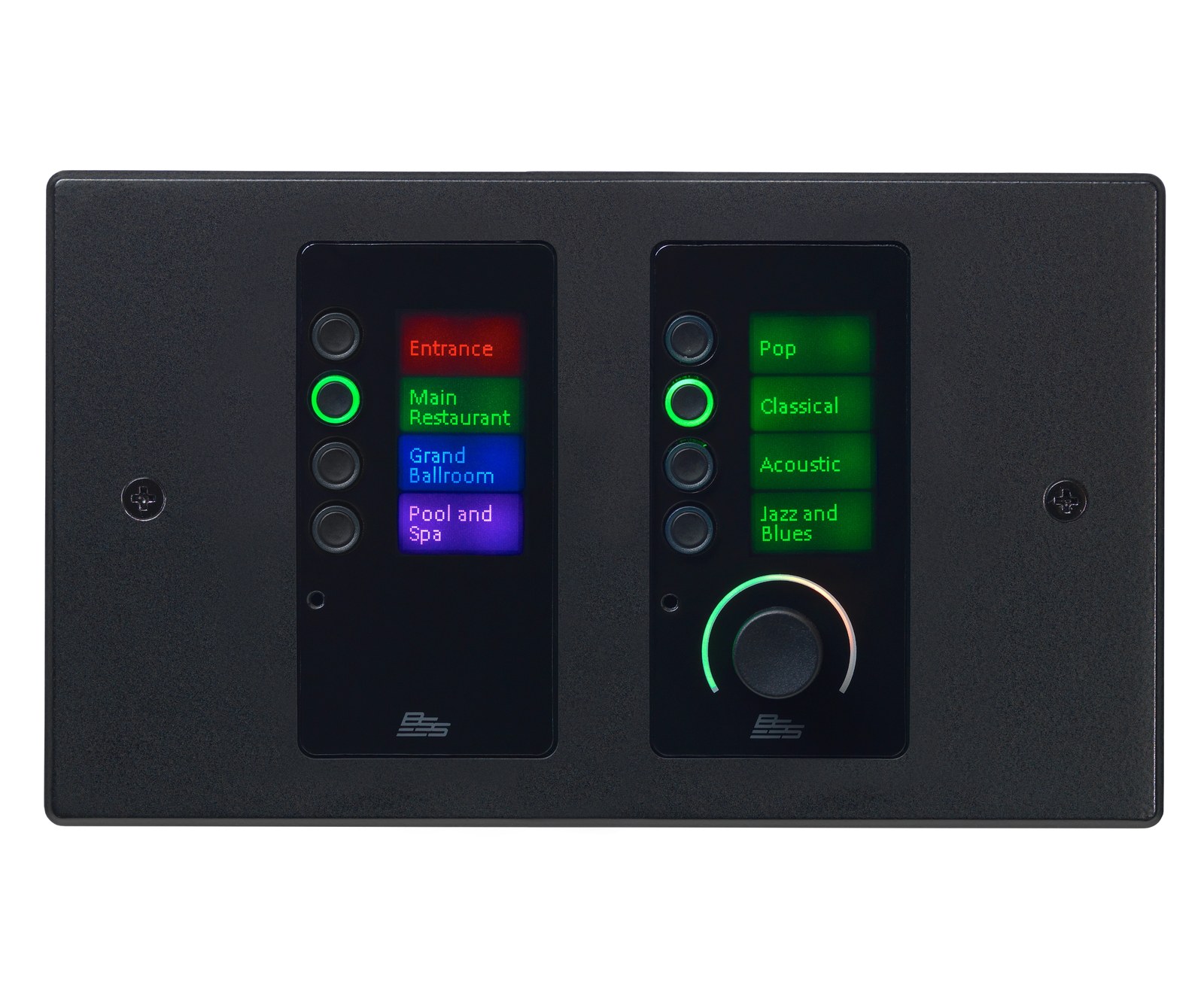

The BSS Soundweb Contrio EC-8BV is an Ethernet wall controller for Harman HiQnet systems. It can control and monitor parameters in BSS Soundweb London and other HiQnet devices, including Crown DCi series amplifiers. This listing is the black, dual-gang EU version (BSSEC8BV-BLK-M-EU).

A single Ethernet port handles configuration, control, monitoring and power via PoE. The controller is set up with simple drag-and-drop in HiQnet Audio Architect.

Controls and display

• 1 programmable push/rotary encoder: rotate for continuous control such as volume, press for mute or preset recall
• 1 programmable multi-colour encoder ring that can show an audio meter, volume setting or mute status
• 8 programmable multi-colour buttons for mute, preset recall or source selection
• 2 programmable 64 x 128 pixel multi-colour LCD screens that can show custom text
• Backlighting in eight colours with adjustable intensity

Features

• Ethernet wall controller, dual-gang EU size
• Compatible with BSS Soundweb London, Crown DCi and other HiQnet devices
• PoE (Power over Ethernet)
• Configured in Audio Architect via drag-and-drop
• Sleep function turns off all LEDs after a set time without input
• Security: remote lock/unlock and local unlock via four-digit PIN on the buttons
• Multiple modes of operation, so controls can be reassigned to different parameters
