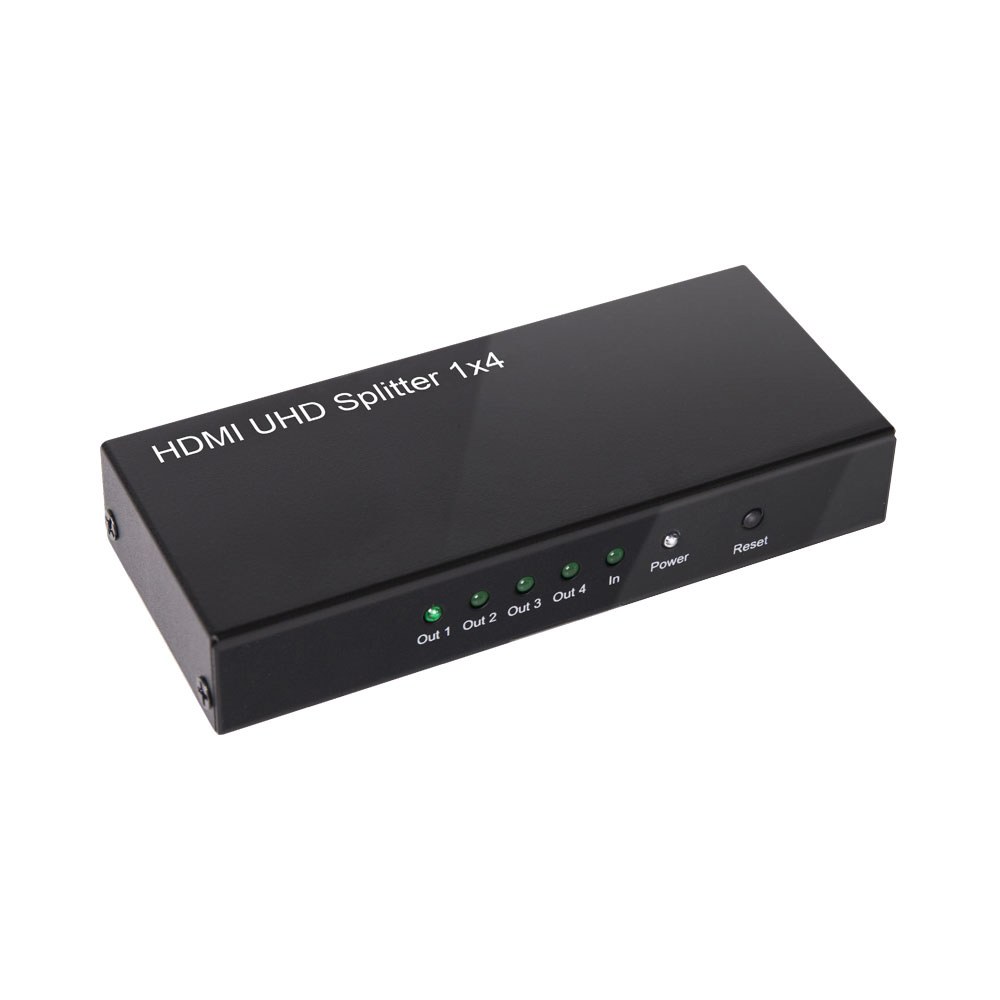

Club3D 4-Port HDMI2.0 4K Splitter(CSV-1380)

Club3D CSV-1380 — 4-port HDMI 2.0 splitter distributing a single 4K UHD @ 60Hz source to four HDMI displays simultaneously, with HDCP 2.2 and amplified output.

The CSV-1380 takes one HDMI 2.0 source — such as a media server, Blu-ray player, or PC — and mirrors it to four HDMI displays at full 4K @ 60Hz resolution. The built-in 6Gbps / 600MHz video amplifier maintains signal integrity across all four outputs without degradation. HDCP 1.4 and 2.2 are supported for protected content, and DTS and Dolby Digital audio pass through to all connected displays. No software or drivers required.

Key features

• 1 HDMI input, 4 HDMI outputs (simultaneous)
• 4K UHD up to 4096 × 2160 @ 60Hz
• Full 3D support
• HDCP 1.4 and HDCP 2.2
• DTS Digital and Dolby Digital audio
• Video amplifier: 6Gbps / 600MHz
• No software installation required

Specifications

• Input: 1× HDMI 2.0
• Outputs: 4× HDMI 2.0
• Max resolution: 4096 × 2160 @ 60Hz
• HDCP: 1.4 and 2.2
• Amplifier: 6Gbps / 600MHz
• Setup: Plug and play
