Club3D 4mDisplayPort 1.4HBR3

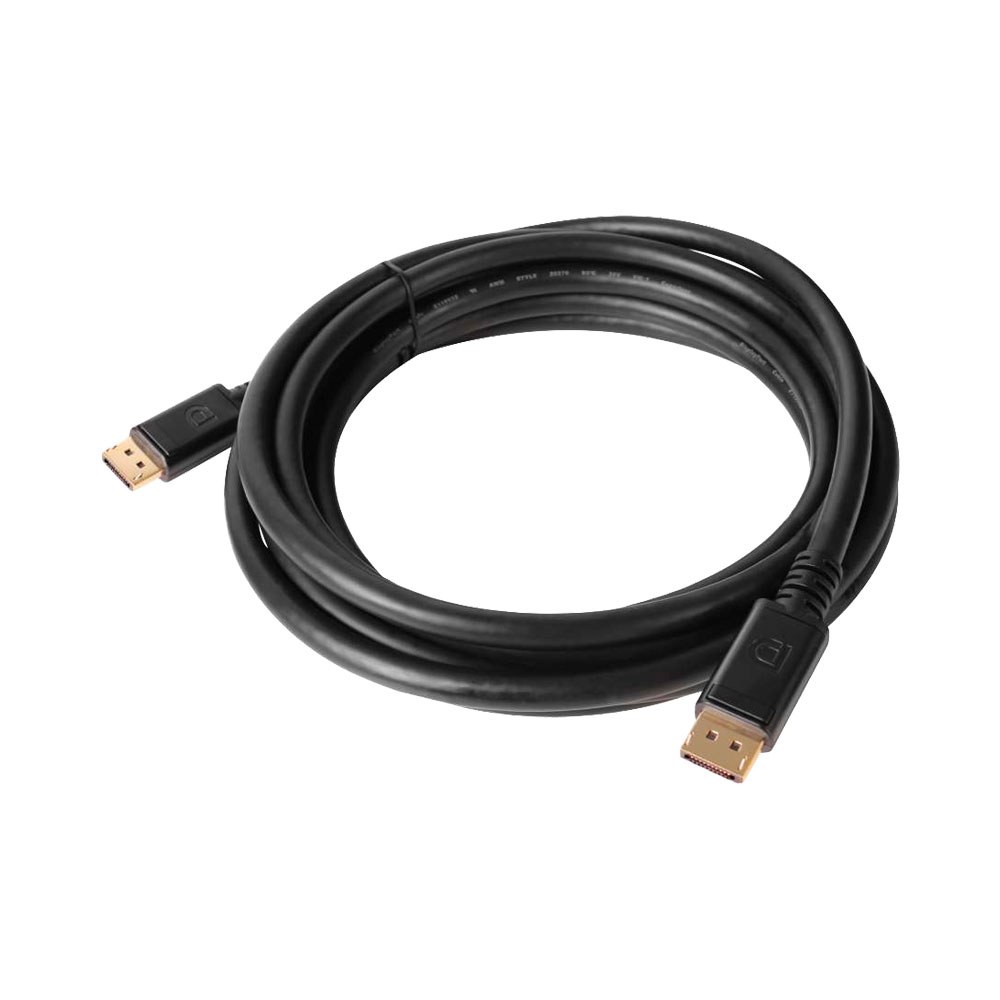

Club3D CAC-1069B — 4m DisplayPort 1.4 HBR3 cable rated to 32.4Gbps, supporting 8K @ 60Hz and 4K @ 144Hz with Display Stream Compression and VESA certification.

The CAC-1069B is a fully compliant DisplayPort 1.4 cable using 24AWG conductors and gold-plated connectors. HBR3 bandwidth (32.4Gbps) enables 8K @ 60Hz with DSC 1.2 or 4K @ 144Hz without compression. Without DSC, maximum resolution is 5K @ 60Hz. Forward Error Correction and support for up to 32 inline audio channels round out the feature set. Backwards compatible with DisplayPort 1.2 and 1.3 sources and displays.

Key features

• DisplayPort 1.4 compliant, HBR3, 32.4Gbps
• 8K @ 60Hz and 4K @ 144Hz with DSC 1.2
• 5K @ 60Hz without DSC
• Display Stream Compression 1.2 support
• Forward Error Correction
• Up to 32 inline audio channels
• Gold-plated connectors, 24AWG
• VESA certified
• 4m length

Specifications

• Version: DisplayPort 1.4
• Bandwidth: HBR3, 32.4Gbps
• Max resolution: 8K @ 60Hz (DSC) / 4K @ 144Hz
• Cable gauge: 24AWG
• Length: 4m
• Certification: VESA
