Club3D CAC-1010DisplayPort 1.2ato

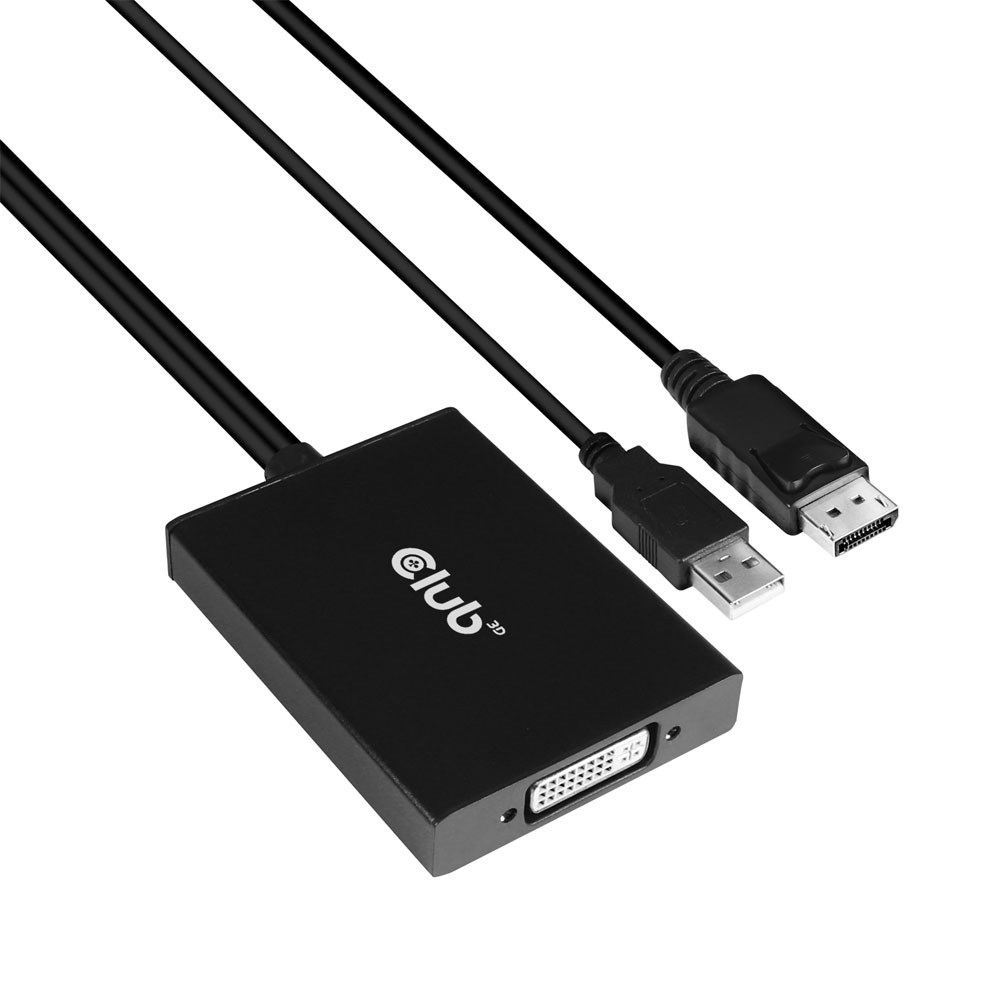

Club3D CAC-1010 — active DisplayPort 1.2a to Dual-Link DVI-D adapter supporting resolutions up to WQXGA 2560×1600 @60Hz and up to 3840×2160 @30Hz in Dual-Link DVI-D mode, or up to 1920×1080 @60Hz in Single-Link DVI mode, with HDCP support and bus-powered operation from the DisplayPort source and a USB Type-A port.

The CAC-1010 provides a reliable connection between modern DisplayPort sources and legacy Dual-Link DVI-D displays that cannot be driven by passive adapters. Active conversion is required for Dual-Link DVI-D resolutions above 1920×1080. The 330MHz clock supports the full WQXGA (2560×1600) resolution at 60Hz for high-resolution professional displays. Power is drawn from the DisplayPort source supplemented by the USB Type-A port, requiring no external power adapter. HDCP support enables protected content playback on compatible DVI displays.

Key features

• DisplayPort 1.2a input — active conversion
• Dual-Link DVI-D: up to 2560×1600 @60Hz (WQXGA)
• Dual-Link DVI-D: up to 3840×2160 @30Hz
• Single-Link DVI: up to 1920×1080 @60Hz
• HDCP support
• 330MHz clock
• Bus-powered (DisplayPort + USB Type-A)

Specifications

• Model: CAC-1010
• Input: DisplayPort 1.2a
• Output: Dual-Link DVI-D / Single-Link DVI
• Max resolution (DL DVI-D): 2560×1600 @60Hz / 3840×2160 @30Hz
• Max resolution (SL DVI): 1920×1080 @60Hz
• Clock: 330MHz
• HDCP: Yes
• Power: DisplayPort bus + USB Type-A
