Club3D CSV-1593USB 3.2 Type-C8-in-1

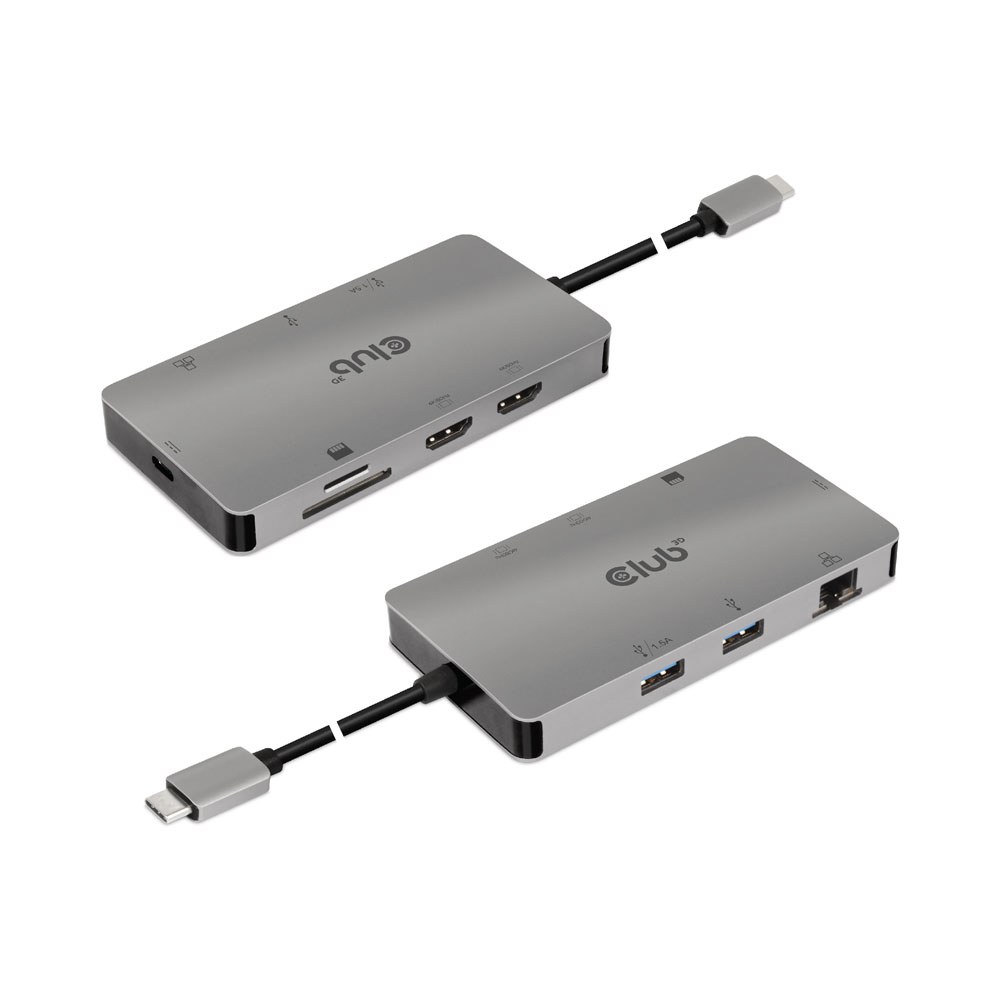

Club3D CSV-1593 — USB 3.2 Gen 1 Type-C 8-in-1 port replicator with dual HDMI outputs, DisplayPort 1.4 Alt Mode with DSC, 100W Power Delivery passthrough, and a range of USB and data ports for a compact docking solution from a single USB-C cable.

The CSV-1593 connects via USB 3.2 Gen 1 Type-C and uses DP 1.4 Alt Mode (2 lanes at 8.1Gbps each, 16.2Gbps total) to drive two HDMI outputs simultaneously. In MST mode on Windows, dual displays run at up to 4K @30Hz independently; in SST mode, both outputs mirror at up to 4K @60Hz. DSC (Display Stream Compression) is supported to maximise display bandwidth. The host must support DP 1.4 Alt Mode with DSC to achieve maximum output.

Key features

• 8-in-1 port replicator — single USB-C cable to host
• 2× HDMI output: up to 4K @60Hz (single/SST) or 4K @30Hz (dual/MST)
• DisplayPort 1.4 Alt Mode with DSC
• 100W Power Delivery passthrough
• USB 3.2 Gen 1 host connection

Specifications

• Model: CSV-1593
• Host port: USB 3.2 Gen 1 Type-C
• Display output: 2× HDMI
• Single display (SST): Up to 4K @60Hz, 4:4:4, 8-bit
• Dual display (MST, Windows): Up to 4K @30Hz each
• Alt Mode: DP 1.4, 2-lane, 16.2Gbps total, DSC supported
• Power Delivery: 100W passthrough
