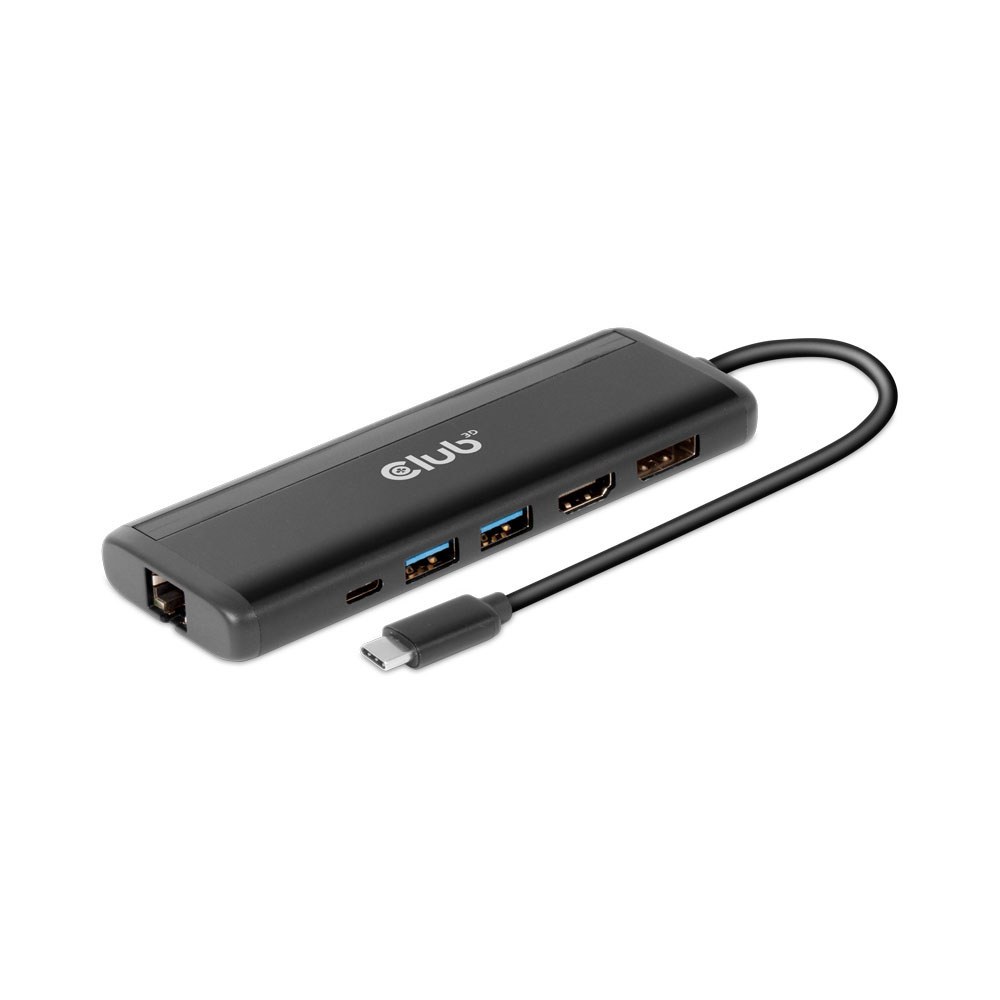

Club3D CSV-1597USB-C 8-in-1 Dual4K@60Hz

Club3D CSV-1597 — USB-C 8-in-1 port replicator with dual 4K@60Hz display output via HDMI and DisplayPort simultaneously (MST), Gigabit Ethernet, dual SD card slots, and USB Gen1 Type-A ports — all from a single USB-C connection.

The CSV-1597 supports DP1.4 Alt mode for up to 8K@30Hz on a single display, or dual 4K@60Hz outputs via MST (Multi-Stream Transport) combining the HDMI and DisplayPort outputs simultaneously. Gigabit Ethernet provides reliable wired network connectivity, dual SD3.0 UHS-I card slots run simultaneously at up to 832Mbps each, and two USB Gen1 Type-A ports handle peripherals at 5Gbps. Downstream charging delivers up to 7.5W per port.

Key features

• USB-C (DP1.4 Alt mode) — single cable to host
• Dual 4K@60Hz: HDMI + DisplayPort simultaneously via MST
• Single display: up to 8K@30Hz via DP or HDMI (with DSC 1.2)
• Gigabit Ethernet
• 2× SD3.0 UHS-I card slots (up to 832Mbps / 104MB/s each)
• 2× USB Gen1 Type-A (5Gbps, 7.5W charging each)

Specifications

• Model: CSV-1597
• Host: USB-C (DP1.4 Alt mode)
• Display 1: HDMI — up to 8K@30Hz / 4K@60Hz (MST)
• Display 2: DisplayPort — up to 8K@30Hz / 4K@60Hz (MST)
• Ethernet: Gigabit (1GbE)
• Card slots: 2× SD3.0 UHS-I
• USB: 2× Gen1 Type-A (5Gbps)
• Charging: 7.5W per USB-A port
