Club3D CSV-1598USB-C 7-in-1 Dual4K@60Hz

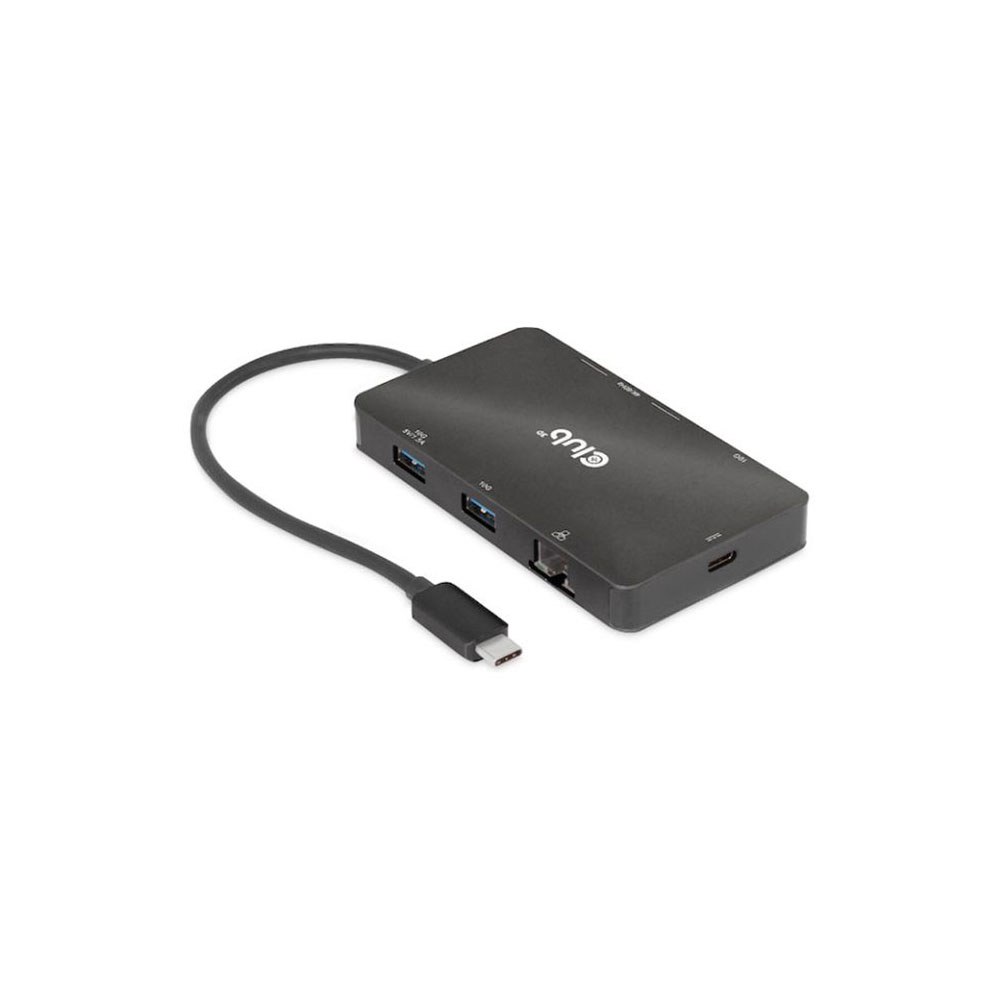

Club3D CSV-1598 — USB-C 7-in-1 port replicator with dual 4K@60Hz DisplayPort output via MST, USB Gen2 10Gbps data, Gigabit Ethernet, and downstream charging — all from a single USB-C connection.

The CSV-1598 uses DP1.4 Alt mode to drive two DisplayPort outputs simultaneously at 4K@60Hz via MST (Multi-Stream Transport), supporting HDR, HDCP 2.2/1.4, and colour depths up to 12-bit. Unlike the CSV-1597, both video outputs are DisplayPort — making this the preferred choice for dual-DP monitor setups. USB Gen2 provides 10Gbps data transfer per USB Type-A port (twice the speed of Gen1), and Gigabit Ethernet enables reliable wired networking.

Key features

• USB-C (DP1.4 Alt mode) — single cable to host
• Dual DisplayPort output: 4K@60Hz per port simultaneously via MST
• HDR, HDCP 2.2/1.4
• 8/10/12-bit colour — RGB, YCbCr 4:4:4/4:2:2/4:2:0
• USB Gen2 (10Gbps) per Type-A port
• Gigabit Ethernet
• 7.5W downstream USB charging

Specifications

• Model: CSV-1598
• Host: USB-C (DP1.4 Alt mode)
• Video outputs: 2× DisplayPort — 4K@60Hz each (MST)
• USB data: Gen2, 10Gbps per port
• Ethernet: Gigabit (1GbE)
• Downstream charging: 7.5W (5V/1.5A)
• HDR/HDCP: HDR, HDCP 2.2 + 1.4
