Club3D DisplayPortto QuadDisplayPort

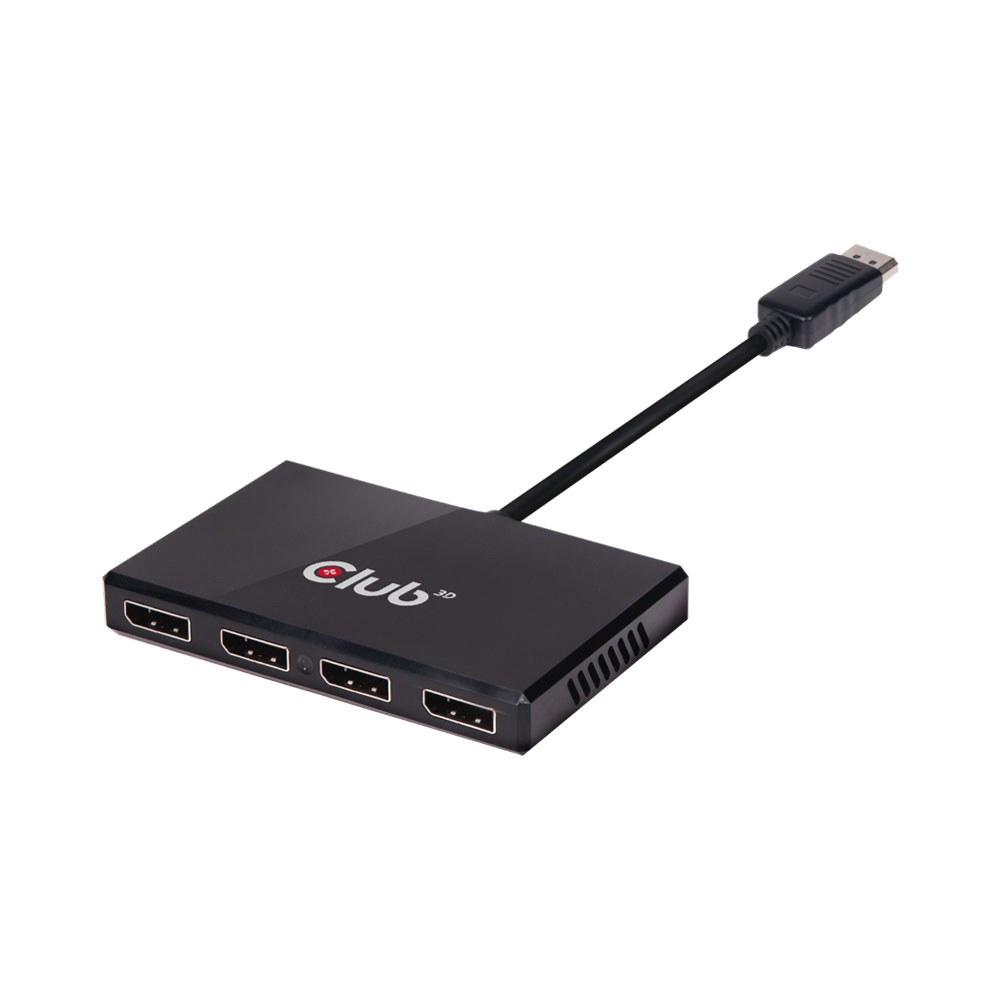

Club3D CSV-6400 — DisplayPort 1.2 MST hub expanding a single DP source to four DisplayPort outputs, supporting up to four independent monitors from one port.

The CSV-6400 uses DP 1.2 Multi-Stream Transport to distribute one DisplayPort source across four DP outputs simultaneously. All four outputs support DisplayPort Dual Mode (DP++), enabling passive adapters to HDMI or DVI where needed. HBR2 bandwidth (5.4Gbps per lane) supports high-resolution multi-monitor setups. Pixel depth up to 12-bit and RGB444 output format are supported. USB-powered; no separate power supply required in most host configurations.

Key features

• 1× DisplayPort 1.2 input → 4× DisplayPort 1.2 outputs
• DP 1.2 Multi-Stream Transport (MST)
• HBR2: 5.4Gbps per lane
• All outputs support DP++ Dual Mode (passive HDMI/DVI adapters usable)
• Up to 12-bit pixel depth, RGB444
• HDCP 2.0, EDID 1.4
• USB-powered

Specifications

• Input: 1× DisplayPort 1.2
• Outputs: 4× DisplayPort 1.2 (DP++)
• Bandwidth: HBR2, 5.4Gbps per lane
• Pixel depth: Up to 12-bit
• HDCP: 2.0
• Power: USB bus-powered
