CYP DCT-3 DigitalCoaxial/Toslink toRCA

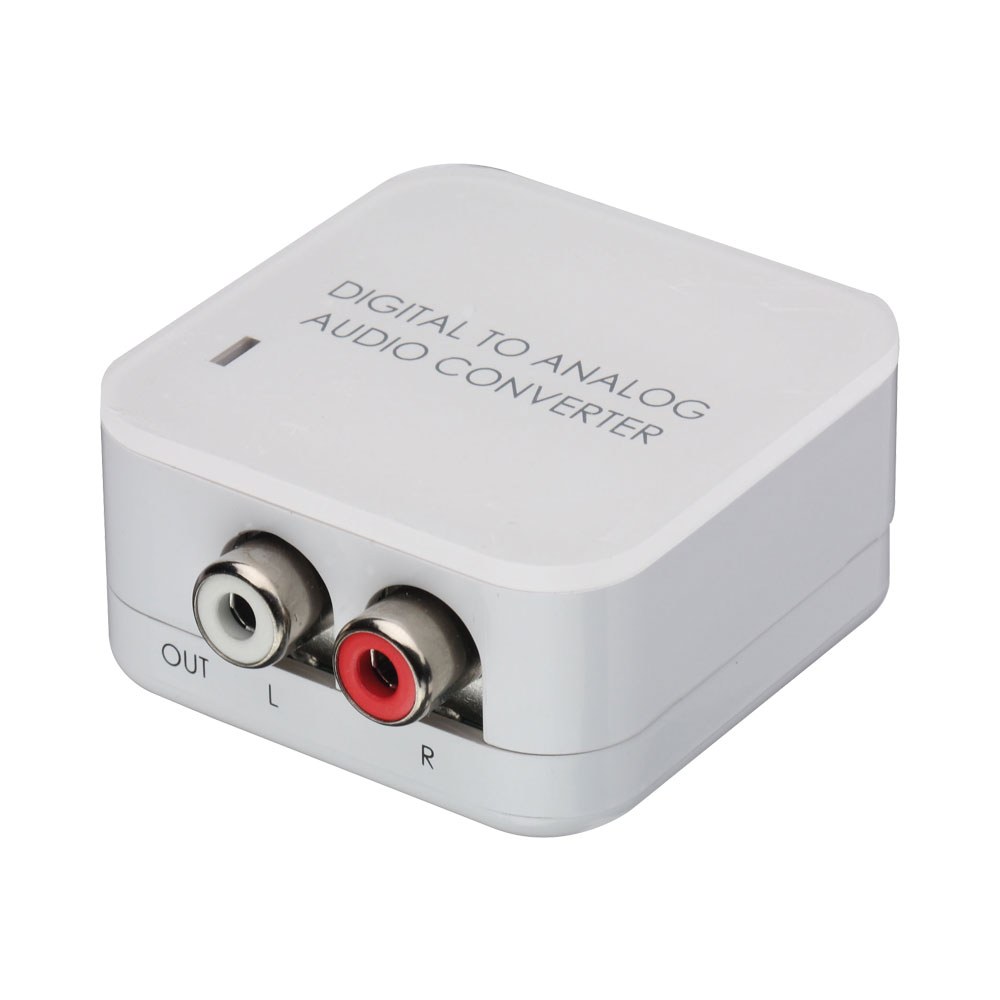

CYP DCT-3 — compact S/PDIF digital audio to analogue stereo converter, accepting coaxial and optical (Toslink) digital audio inputs and converting to RCA L/R analogue outputs at up to 192kHz/24-bit.

The DCT-3 bridges digital audio sources — such as CD transports, set-top boxes, or sound cards — to amplifiers and receivers with only analogue RCA inputs. It accepts both coaxial (RCA) and optical (Toslink) S/PDIF simultaneously, supporting uncompressed PCM stereo at up to 192kHz/24-bit. The integrated digital interpolator filter and DAC perform the conversion with no external configuration required.

Key features

• Coaxial and optical (Toslink) S/PDIF inputs
• Stereo RCA analogue output (L/R)
• Up to 192kHz/24-bit digital input support
• Integrated digital interpolator filter and DAC
• Uncompressed PCM stereo audio
• Compact, easy to install

Specifications

• Model: DCT-3
• Digital inputs: Coaxial (RCA) S/PDIF, Optical (Toslink) S/PDIF
• Analogue output: Stereo RCA L/R
• Max resolution: S/PDIF up to 192kHz/24-bit
• Audio format: Uncompressed digital stereo PCM
