Delock USB-C toUSB Type-B Cable,USB

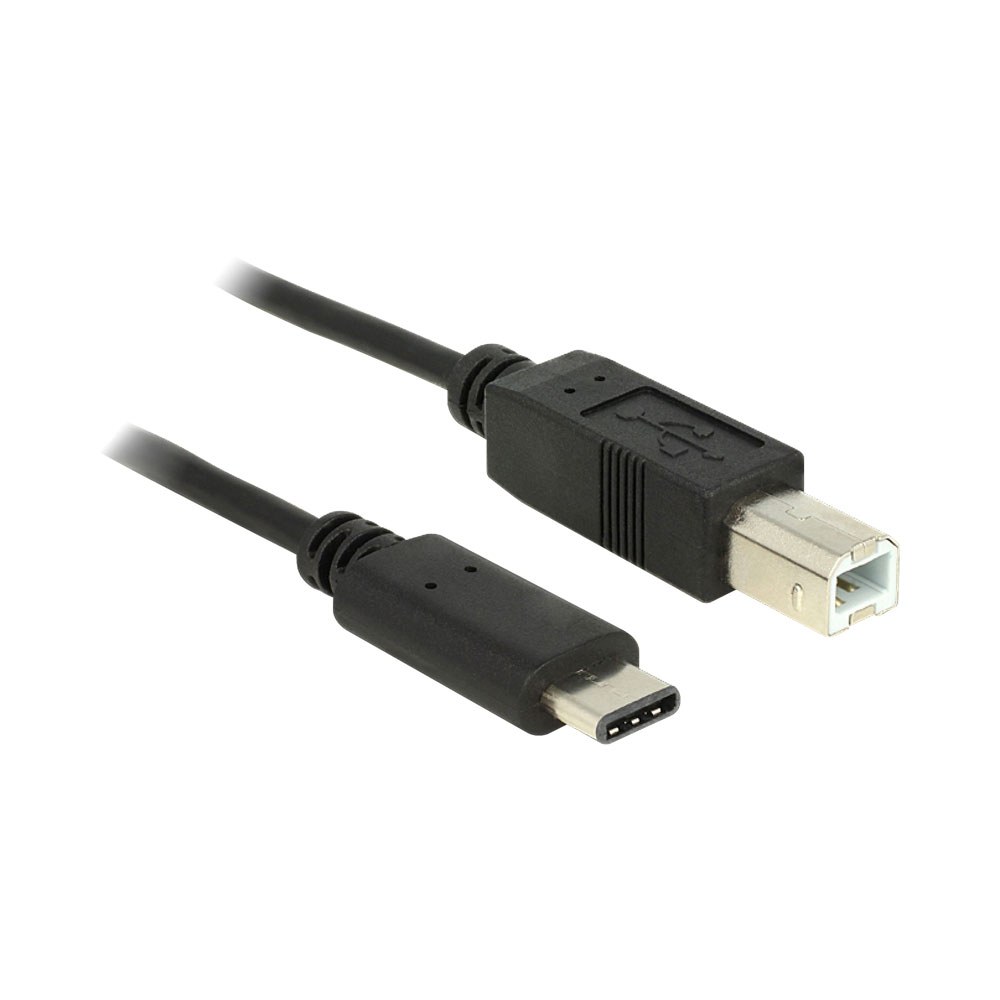

Delock 83601 — 1m USB-C to USB Type-B cable, USB 2.0, supporting up to 3A charging current, for connecting USB-C host devices to printers, scanners, audio interfaces and other USB-B peripherals.

The 83601 bridges the growing USB-C host ecosystem with the large installed base of USB Type-B peripherals. A 5.1kΩ resistor on the CC line identifies the cable to the host correctly per USB-C specification, and the dedicated 24 AWG power conductors support up to 3A for devices that draw significant current. The 30 AWG data lines carry Hi-Speed USB 2.0 at up to 480 Mbps. Black, 1m, approximately 3mm cable diameter.

Key features

• USB-C (host) to USB Type-B (device), 1m
• Up to 480 Mbps data transfer (Hi-Speed USB 2.0)
• Up to 3A charging/power delivery
• 5.1kΩ CC resistor — correct USB-C identification
• Dedicated 24 AWG power / 30 AWG data conductors
• Colour: black

Specifications

• Connector A: USB Type-C 2.0 male (host)
• Connector B: USB 2.0 Type-B male (device)
• Transfer rate: Up to 480 Mbps
• Output current: Up to 3A
• CC resistor: 5.1kΩ
• Cable gauge: 30 AWG (data), 24 AWG (power)
• Cable diameter: ~3mm
• Length: 1.0m
• Colour: Black
• Part number: 83601
