( 05 / 05 )Denon AVR-X2800H7.2 Channel 8KNetwork
The Denon AVR-X2800H is a 7.2-channel 8K AV receiver with discrete high-current amplifiers rated at 95 W per channel (8 Ω, 20 Hz-20 kHz, 0.08% THD, 2-channel drive). It supports Dolby Atmos(R) and DTS:X(R), HDMI 8K/4K120 passthrough with HDR10+, Dolby Vision, HLG and Dynamic HDR, plus HEOS(R) Built-in streaming, Wi-Fi, Bluetooth and AirPlay 2.
Key Features
- 7 discrete power amplifiers; 7.2 channel processing
- Immersive audio: Dolby Atmos, DTS:X, Dolby Surround / DTS Neural:X upmixers; Dolby Atmos Height Virtualization and DTS Virtual:X
- HDMI: 6 in / 2 out; 8K supported on three of six HDMI inputs and both outputs; ARC/eARC; HDCP 2.3; VRR, QFT, ALLM for gaming
- HEOS Built-in multi-room streaming; Wi-Fi and Bluetooth; AirPlay 2; Bluetooth headphone transmit
- Audyssey MultEQ XT auto speaker setup (with Dynamic EQ and Dynamic Volume); Denon Setup Assistant
- 2-source / 2-zone multi-room audio; phono (MM) input; front USB for high-resolution audio playback
Specifications
Figures below are from the official Denon AVR-X2800H Information Sheet (Technical Information / Inputs-Outputs). Inch dimensions converted to millimetres for Audico SA (metric preference); original inches retained in parentheses. Power consumption figures as published.
Amplifier and setup
Source: Denon AVR-X2800H Info Sheet - Technical Information (Number of Power Amps, Power Output, Auto Speaker Setup, Front Display, GUI Languages).
| Number of power amps | 7 |
|---|---|
| Power output (8 Ω, 20 Hz-20 kHz, 0.08%, 2ch drive) | 95 W per channel |
| Power output (6 Ω, 1 kHz, 0.7%, 2ch drive) | 125 W per channel |
| Power output (6 Ω, 1 kHz, 10%, 1ch drive) | 185 W per channel |
| Auto speaker setup | Audyssey MultEQ XT (by microphone) |
| Front display | 1-Line FLD |
| GUI languages | English, Japanese, French |
General (power, size, weight)
Source: Denon AVR-X2800H Info Sheet - General block. Dimensions converted from published inches (×25.4).
| System remote control | RC-1253 |
|---|---|
| Power consumption | 500 W |
| Power consumption (no-sound, ECO on/off) | 35 W / 75 W |
| Standby consumption | 0.1 W |
| CEC standby consumption | 0.5 W |
| Network standby consumption | Less than 2.0 W |
| Dimensions W × D × H (antenna horizontal) | 434 × 340 × 168 mm (17.1 × 13.4 × 6.6 in) |
| Dimensions W × D × H (antenna vertical) | 434 × 340 × 236 mm (17.1 × 13.4 × 9.3 in) |
| Dimensions W × D × H (without antenna) | 434 × 330 × 168 mm (17.1 × 13.0 × 6.6 in) |
| Weight | 9.5 kg (21.0 lbs) |
| Weight (packaging) | 11.5 kg (25.4 lbs) |

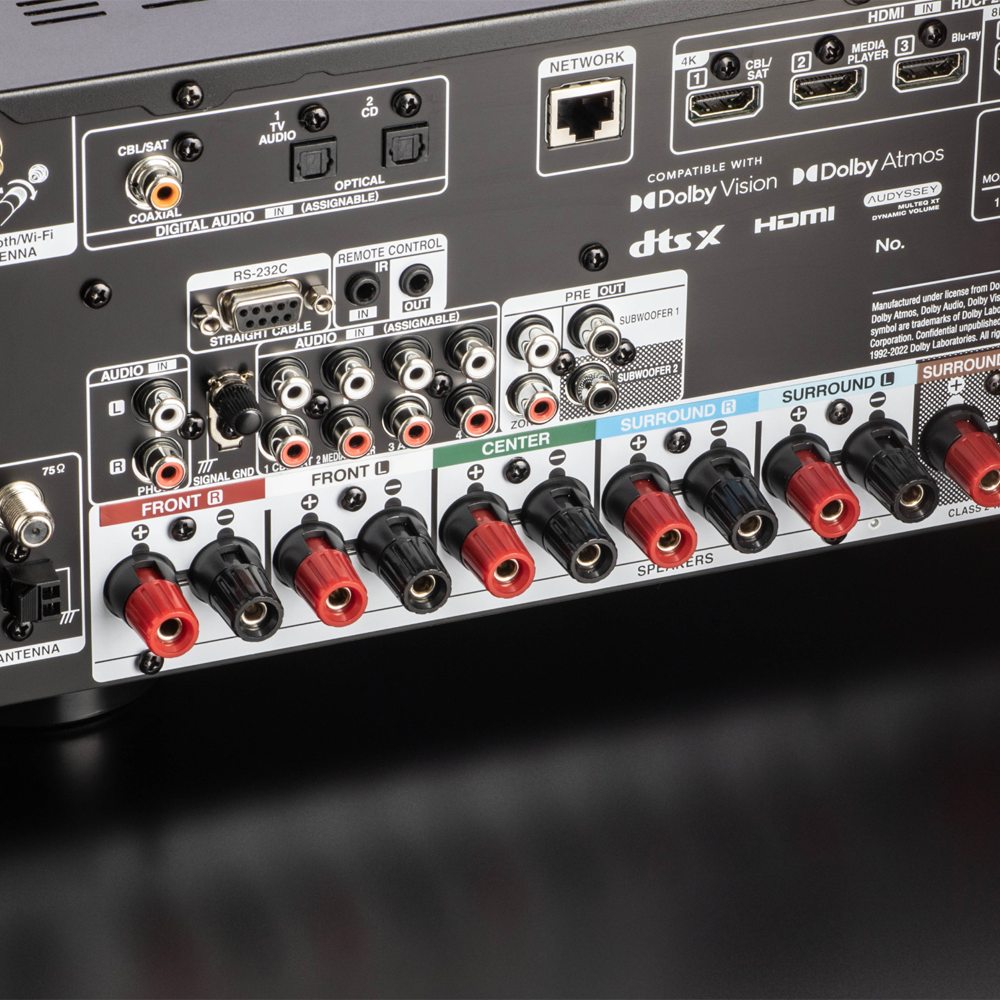

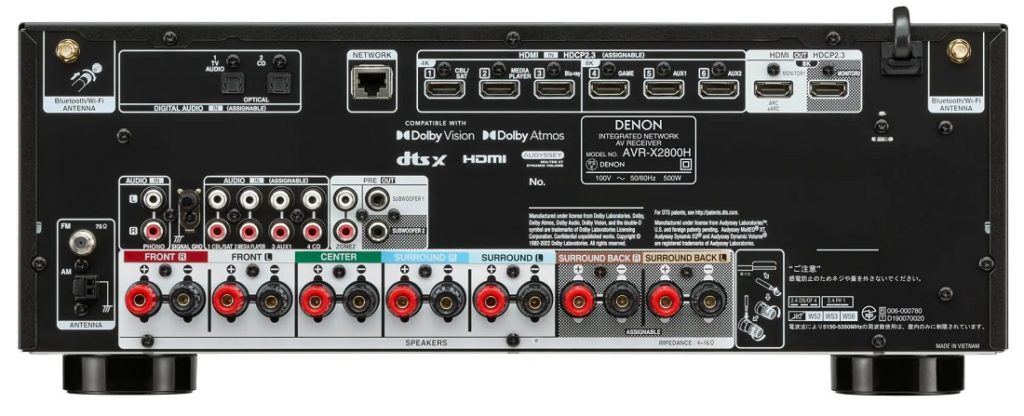

Inputs / outputs
Source: Denon AVR-X2800H Info Sheet - Inputs/Outputs block.
| HDMI in / out | 6 / 2 |
|---|---|
| Analog audio in / out | 4 / - |
| Phono (MM) in | Yes |
| Digital in (optical / coaxial) | 2 / 1 |
| Multi-room out (analog / digital) | 1 / - |
| Multichannel pre-out | Yes (0.2) |
| Subwoofer out | 2 |
| Speaker terminals | 7 |
| Speaker A/B | Assignable |
| Bi-amp drive | Assignable |
| Multi-room speaker terminal | Assignable |
Datasheets
Public manufacturer documents (link only - this does not add a downloads module):
( Specifications )
| 3D Ready | Yes |
| AirPlay | Yes |
| Amplifier Power Output | 95W per Channel @ 8 Ohms |
| Frequency Response | 10 Hz - 100 kHz |
| Multi-room | 2 - Multi-Room Zones |
| Signal-to-Noise Ratio | 100 dB |
| Wireless | WiFi + Bluetooth |
| Channels | 7.2 Channels |
| 4K Compatible | Yes incl 8K |
| Internet Streaming | AirPlay2 Audio Streaming, vTuner, Spotify Connect , Alexa Compatible |
| Dolby Atmos | Supports Dolby Atmos |
| DTS X | Supports DTS X Sound Format |
| Additional Features | Auto sound calibration, Internet radio playback, Airplay support, Smartphone remote control |
| Amplifier Output Details | 105 W (8 ohm) |
