Generic PowerSolutionsEasyFiber

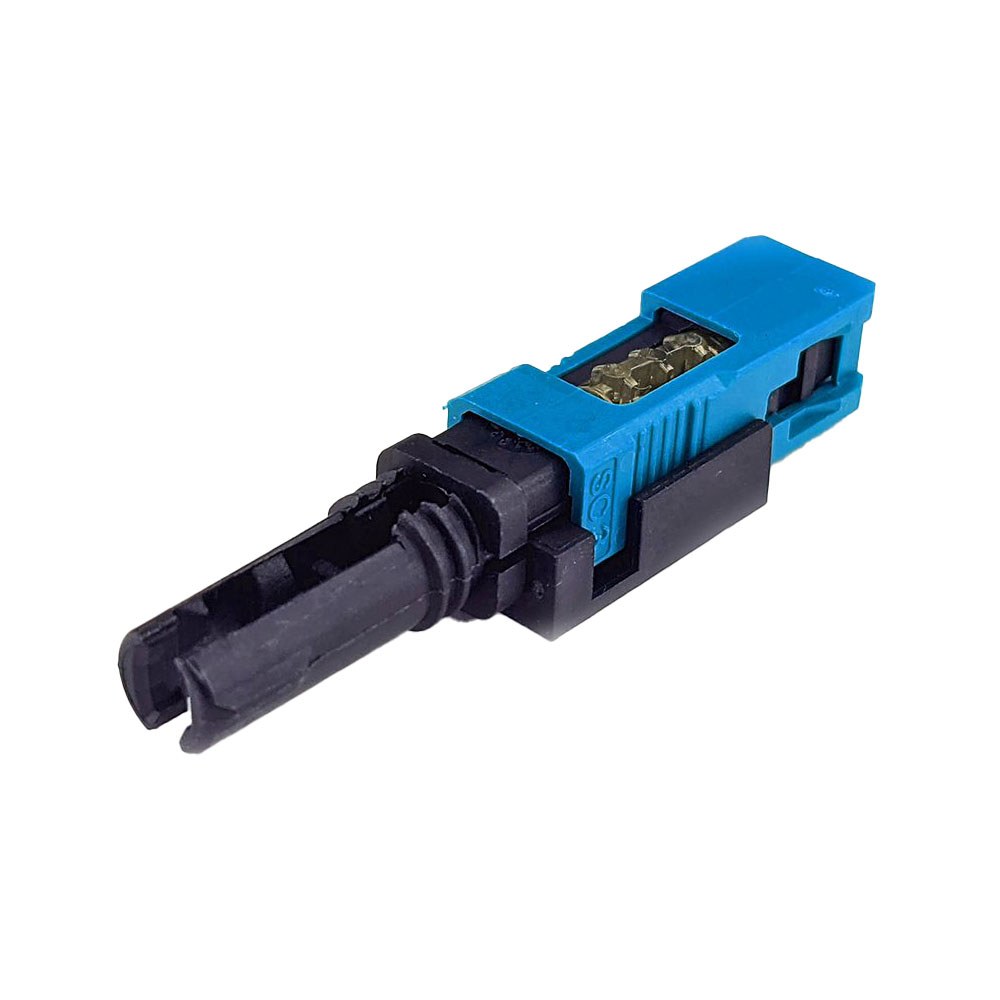

Generic Power Solutions EasyFiber EF-CON-SM-SC — SC simplex field-assembly fibre connector for OS1/OS2 single mode cable in blue, requiring no epoxy, crimping, or polishing — and no proprietary tools.

Blue SC connectors are the standard form for OS2 single mode UPC patch connections. The EF-CON-SM-SC uses a pre-polished ferrule and accepts both UPC and APC polishing orientations, covering standard and angled connections from a single connector body. No specialised tools or consumables are needed — a built-in verification window confirms strand insertion before locking. Accommodates 250µm, 900µm, 2.0mm, and 3.0mm jacketed cable including distribution and zipcord formats.

Key features

• SC type connector — simplex (single mode)
• Pre-polished for UPC and APC connections
• No epoxy, crimping, or polishing required
• No proprietary tools required
• Built-in verification window for strand insertion confirmation
• Self-centering alignment groove
• Compatible with OS1/OS2 single mode and OM2/OM3/OM4 multimode cable
• Suits 250µm, 900µm, 2.0mm, and 3.0mm cable

Specifications

• Model: EF-CON-SM-SC
• Connector type: SC simplex
• Polishing: UPC and APC (pre-polished)
• Primary fibre type: OS1/OS2 single mode
• Also compatible with: OM2/OM3/OM4 multimode
• Cable sizes: 250µm, 900µm, 2.0mm, 3.0mm
• Colour: Blue (single mode UPC standard)
