Huawei eKitS220-8P4S Layer 2Managed
R 8 240
AvailableQuantity
1

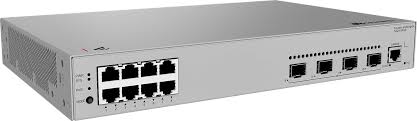

R 8 240Huawei eKit S220-8P4S Layer 2 Managed Switch
The Huawei eKit S220-8P4S is a reliable and versatile Layer 2 managed switch designed for small to medium-sized businesses. It features 8 x 10/100/1000BASE-T ports with Power over Ethernet Plus (PoE+) support delivering up to 125W total PoE power, plus 4 x 1GE SFP uplink ports for flexible, high-speed fibre connectivity.
8 x 10/100/1000BASE-T PoE+ ports with up to 125W total PoE power
4 x 1GE SFP fibre uplink ports for seamless network integration
Advanced Layer 2 management: VLAN, QoS, link aggregation, and security features
( Specifications )
| ACL Support | Yes |
| Auto MDI/MDIX | Supported |
| Brand | Huawei |
| Broadcast Suppression | Yes |
| Certifications | CE, FCC, RoHS |
| Chassis Type | Metal |
| Country of origin | China |
| dimensions | 330mm x 207mm x 43.6mm |
| Energy Efficient Ethernet | IEEE 802.3az |
| Ethernet ports | 8 x 10/100/1000BASE-T |
| Fan | Fanless |
| Flow Control | IEEE 802.3x (Full-duplex), Backpressure (Half-duplex) |
| Forwarding Rate | 17.856 Mpps |
| IGMP snooping | Yes, v1/v2/v3 |
