LightwareUCX-2X1-HC40Universal

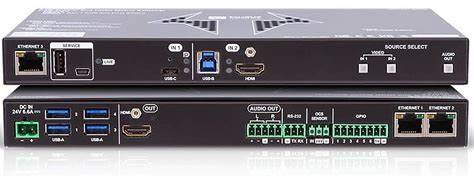

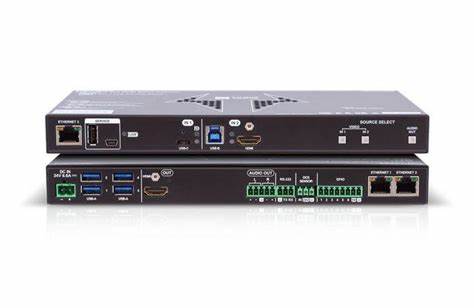

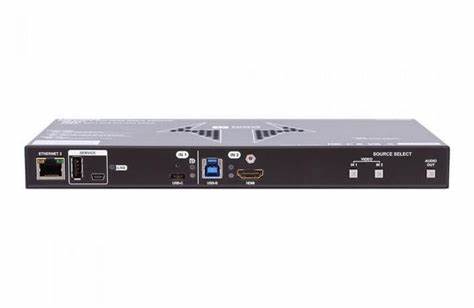

Lightware UCX-2X1-HC40 Universal Matrix Switcher

The Lightware UCX-2X1-HC40 is a compact and versatile universal matrix switcher designed for small to medium meeting rooms, classrooms, and collaborative environments. It supports seamless switching between multiple HDMI and USB-C sources with up to 4K UHD@60Hz 4:4:4 video resolution, delivering high-quality visuals and audio every time.

Key Features

• Two HDMI inputs and one HDMI output for flexible connectivity
• One USB-C input supporting modern device connections
• Supports 4K UHD@60Hz 4:4:4 video resolution for crystal-clear images
• USB 2.0 connectivity for easy peripheral switching and BYOD collaboration
• Robust integration with IR, RS-232, configurable GPIO ports, and Ethernet management
• Compact design suitable for under-table, behind-display, or AV rack mounting
• Auto-switching and built-in audio de-embedding for enhanced user experience
• HDCP 2.2 compliance and CEC support for secure and reliable content transmission
• HDBaseT signal extension up to 40 metres for remote installations
• Intelligent EDID management and intuitive front panel for easy configuration

Specifications

• Inputs: 2x HDMI, 1x USB-C
• Output: 1x HDMI
• Video Resolution: Up to 4K UHD@60Hz 4:4:4
• USB: USB 2.0 for peripheral switching
• Control Interfaces: IR, RS-232, GPIO, Ethernet
• Signal Extension: HDBaseT up to 40 metres
• Content Protection: HDCP 2.2 compliant
• Dimensions: Compact form factor for flexible mounting
