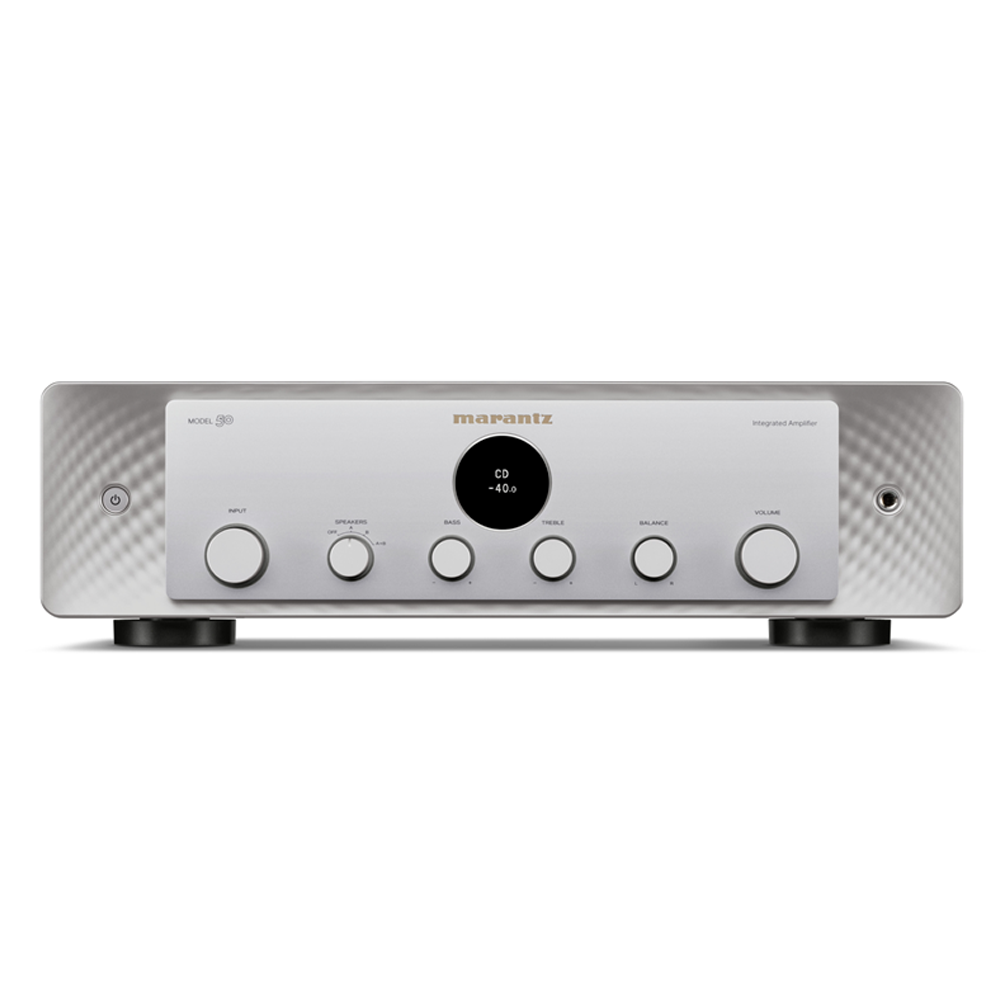

Marantz Model 50Premium IntegratedStereo

Marantz MODEL 50 is a pure analogue stereo integrated amplifier: Current Feedback Class A/B, HDAM SA-2 / SA-3, Marantz Musical Phono EQ (MM), toroidal transformer, and no digital audio circuitry. Rated 70 W + 70 W into 8 Ω (100 W + 100 W into 4 Ω).

Key Features

• Pure analogue path — no USB-B / optical / coaxial / USB-A digital inputs
• 70 W × 2 (8 Ω) / 100 W × 2 (4 Ω) RMS, 20 Hz–20 kHz, both channels driven
• Current Feedback topology; HDAM SA-2 and SA-3; toroidal power transformer
• Marantz Musical Phono EQ (MM); six analogue inputs; pre-out + subwoofer out; Power Amp Direct In
• Speaker A/B with Marantz SPKT-1+ terminals; headphone out; Source Direct; balance / bass / treble
• Low-noise OLED porthole display; remote RC003PMND; colours Black and Silver-Gold

Overview

MODEL 50 is Marantz’s pure-analogue stereo integrated for vinyl and line sources — not Model 40n / 60n. Discrete HDAM stages and Current Feedback Class A/B amplification with full analogue I/O.

Specifications

Audio figures prefer the Marantz MODEL 50 EU owner’s manual Specifications. Features / I/O / dimensions from the MODEL 50 information sheet. South Africa uses EU-voltage product (AC 230 V). Infosheet “Frequency Response 5 Hz–10 kHz” is a truncated marketing row and is not used; EU OM value 5 Hz–100 kHz ±3 dB is used. No price or stock.

Audio amplifier (EU owner’s manual)

Source: https://manuals.marantz.com/MODEL50/EU/EN/DNTXSYnslltjoe.php

RMS power output (20 Hz–20 kHz, both channels)	70 W × 2 (8 Ω); 100 W × 2 (4 Ω)
Total harmonic distortion (20 Hz–20 kHz, both ch, 8 Ω)	0.02%
Frequency response (CD, 1 W, 8 Ω)	5 Hz – 100 kHz ±3 dB
Damping factor (8 Ω, 20 Hz–20 kHz)	100 and over
Input sensitivity / impedance	PHONO MM 1.4 mV / 47 kΩ; CD/TUNER/LINE/RECORDER 185 mV / 16 kΩ; POWER AMP IN 1.5 V / 15 kΩ
Output voltage	PRE OUT 1.5 V; SUBWOOFER OUT 220 mV
Max. allowable PHONO input (1 kHz, MM)	80 mV
RIAA deviation (20 Hz–20 kHz)	±0.5 dB
S/N (IHF-A, 8 Ω)	PHONO MM 87 dB (5 mV); CD/TUNER/LINE/RECORDER 113 dB (rated output); POWER AMP IN 125 dB (rated output)
Tone control	Bass ±10 dB at 50 Hz; Treble ±10 dB at 15 kHz

Features and I/O (information sheet)

Source: Marantz MODEL 50 infosheet PDF.

Channels	2
Current Feedback topology	Yes
Phono EQ	Marantz Musical (MM); not Standard / not Musical Premium
Digital inputs	None (USB-B / optical / coaxial / USB-A = No)
HDAM version	SA-2, SA-3
Power transformer	Toroidal
Audio inputs / outputs	6 in / 1 out
Phono	MM Yes / MC No
Pre-out / Main-in	Yes + subwoofer / No
Power Amp Direct In	Yes
Speaker A / B	Yes; Marantz SPKT-1+; 4 terminals
Headphone out / D-Bus	Yes / Yes
Source Direct / Power Amp direct	Yes / Yes
Balance / Bass / Treble / Loudness	Yes / Yes / Yes / No

General

Power supply from EU OM; dimensions/weight/colours from infosheet.

Power supply (EU)	AC 230 V, 50/60 Hz
Power consumption	220 W
Standby consumption	0.3 W
Operating temperature	+5 °C – +35 °C
Maximum dimensions (W × D × H)	442 × 431 × 130 mm
Weight	14.2 kg
Available colours	Black; Silver-Gold
Remote control	RC003PMND

Datasheets

Public manufacturer documents (link only — this does not add a downloads module):

• Marantz MODEL 50 EU Specifications (online)
• Marantz MODEL 50 EU Owner’s Manual (PDF)
• Marantz MODEL 50 information sheet (PDF)
