NOVASTAR H-2XHDMI-2.0
R 47 180
Limited availabilityQuantity
1
R 47 180
12 monthly paymentsfrom R 3 932 / month
Illustrative estimate. Final payment terms are confirmed at checkout.Delivered byThursday, 17 September

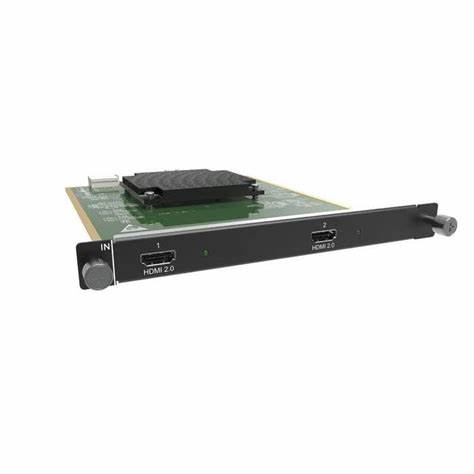

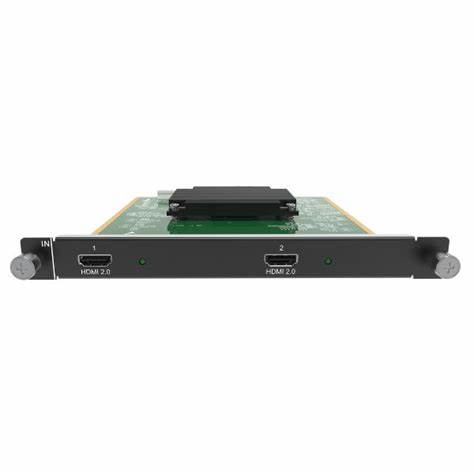

Estimated from today, excluding weekends.NOVASTAR H-2XHDMI-2.0 Dual-Channel HDMI 2.0 Input Card
The NOVASTAR H-2XHDMI-2.0 is a high-performance dual-channel HDMI 2.0 input card designed for seamless integration with NOVASTAR H Series video processors. It supports two independent HDMI 2.0 inputs, each handling resolutions up to 4K×2K at 60Hz for vibrant, ultra-high-definition video transmission.
Key Features
- Dual independent HDMI 2.0 inputs supporting up to 4K×2K at 60Hz
- Superior colour depth and low latency performance
- Robust compatibility with professional AV equipment
- Hot-swappable design for minimal downtime
- Supports HDCP 2.2 content protection standards
- Easy plug-and-play installation within NOVASTAR H Series chassis
- Ideal for LED video walls, mission-critical events, and fixed installations
- Exceptional stability and signal integrity for large-scale venues
Specifications
- Model: NOVASTAR H-2XHDMI-2.0
- Input: 2 x HDMI 2.0 ports
- Maximum Resolution: 4K×2K at 60Hz
- Content Protection: HDCP 2.2 compliant
- Compatibility: NOVASTAR H Series video processors
- Design: Hot-swappable expansion card
( Specifications )
| Application Scenarios | Broadcast, Rental, Fixed Installation, LED Video Wall |
| Audio Support | Embedded HDMI Audio, up to 8 channels |
| CEC Support | Not Supported |
| Certifications | CE, FCC |
| Color Format Support | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Compatibility | Novastar H Series Controllers |
| Configuration Interface | Controlled via master controller software |
| Connector Type | HDMI Type-A |
| Cooling Method | Passive, Air-cooled |
| Country of Origin | China |
| Deep color support | Yes (up to 36-bit) |
| Device Type | LED Display Video Input Card |
| Dimensions | 180mm × 90mm × 20mm |
| EDID Management | Supported |
