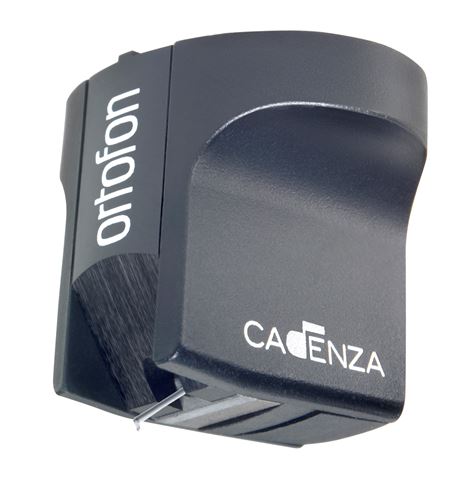

( 01 / 01 )Ortofon MC CadenzaBlack Moving CoilCartridge

Ortofon MC Cadenza Black - Moving Coil Cartridge delivers exceptional analogue sound with unmatched resolution and accuracy, making it the pinnacle of the Cadenza series for audiophiles seeking true-to-groove playback.
The Cadenza Series
Ortofon continuously innovates to push the boundaries of cartridge performance and quality. Building on the success of the Kontrapunkt models and MC Jubilee, the Cadenza series introduces advanced technology such as cobalt-iron pole pieces, improved armature winding, and extruded aluminium housings. This range includes a dedicated moving coil mono model for microgroove mono records, catering to diverse vinyl enthusiasts.
Each of the five Cadenza cartridges offers a unique sonic character:
- MC Cadenza Mono: True mono cartridge for microgroove mono vinyl playback.
- MC Cadenza Red: Open, dynamic sound with a warm tonal balance.
- MC Cadenza Blue: Enhanced dynamics and resolution with detailed reproduction.
- MC Cadenza Bronze: Evenhanded detail and resolution respecting all musical elements.
- MC Cadenza Black: The flagship model offering the best of everything with precise insight into each recording.
About the Name "Cadenza"
Derived from Italian, "Cadenza" refers to a solo passage in a concert where the orchestra pauses, allowing the soloist to perform freely and expressively. This concept reflects the cartridge’s ability to reveal intricate musical details and nuances, delivering a virtuosic listening experience.
Key Features
- High-resolution moving coil design with cobalt-iron pole pieces
- Extruded aluminium cartridge body for optimal rigidity
- Nude Shibata stylus on boron cantilever for precise tracking
- Wide frequency response from 20 Hz to 60 kHz
- Excellent channel separation and balance for accurate stereo imaging
- Recommended tracking force of 2.3 g for optimal performance
Specifications
Output voltage at 1000 Hz, 5cm/sec: 0.33 mV
Channel balance at 1 kHz: < 0.8 dB
Channel separation at 1 kHz: > 27 dB
Channel separation at 15 kHz: > 20 dB
Frequency range (-3 dB): 20 - 60,000 Hz
Frequency response (20 Hz - 20 kHz): +1.5 / 0 dB
Tracking ability at 315 Hz (recommended tracking force): 90 µm
Compliance, dynamic, lateral: 16 µm/mN
Stylus type: Nude Shibata on boron cantilever
Stylus tip radius: r/R 6/50 µm
*) Typical value
Tracking force range: 2.0 - 2.5 g (20 - 25 mN)
Recommended tracking force: 2.3 g (23 mN)
Tracking angle: 20°
Internal impedance (DC resistance): 5 Ohm
Recommended load impedance: > 10 Ohm
Cartridge body material: Stainless steel and aluminium
Cartridge colour: Black/Black
Cartridge weight: 10.7 grams
