OrtofonMC Anna

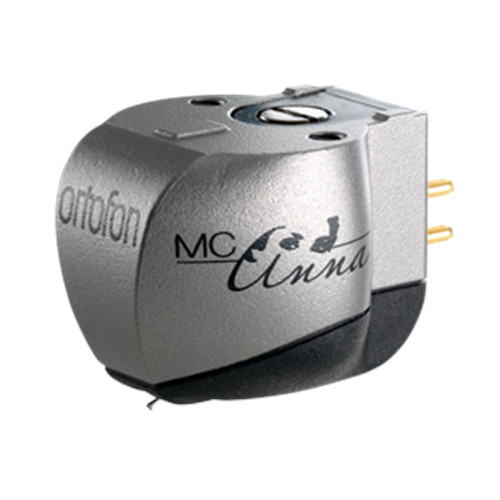

Ortofon MC AnnaMoving CoilCartridge

Contact for availability
Sold out
12 monthly paymentsfrom R 12 499 / month
Illustrative estimate. Final payment terms are confirmed at checkout.
Delivered byMonday, 14 September
Estimated from today, excluding weekends.

Experience unparalleled analogue sound quality with the Ortofon MC Anna Moving Coil Cartridge, designed for audiophiles seeking the highest level of performance in vinyl playback.

About the Ortofon MC Anna Cartridge

The Ortofon MC Anna represents the pinnacle of Moving Coil cartridge technology, combining advanced design elements and meticulous craftsmanship to deliver exceptional analogue sound reproduction. This flagship cartridge embodies Ortofon's commitment to innovation and musical purity.

Continuing Ortofon's tradition of honouring influential figures in music and audio culture, the MC Anna is dedicated to the renowned opera diva Anna Netrebko. Her virtuosity and expressive versatility inspire this cartridge's design, which aims to capture the true emotion and detail of recorded music.

With a blend of technical expertise and artistic inspiration, the MC Anna offers an immersive musical experience that transcends conventional playback.

Key Features

  • Output impedance: 6 Ohm, compatible with most MC phono preamps and step-up transformers including Ortofon ST-80 SE
  • Low-to-medium output voltage of 0.2 mV for optimal signal clarity
  • Exceptional balance of precision and musicality for an engaging listening experience
  • Advanced stylus design: Special polished Nude Ortofon Replicant 100 on Boron Cantilever
  • Wide frequency response of 20 Hz to 20,000 Hz ±1.5 dB
  • High channel separation and low channel imbalance for superior stereo imaging
  • Lightweight titanium SLM cartridge body (16 grams) for improved tracking and reduced resonance

Specifications

Output voltage at 1000 Hz, 5cm/sec: 0.2 mV
Channel balance at 1 kHz: 0.5 dB
Channel separation at 1 kHz: 25 dB
Channel separation at 15 kHz: 22 dB
Frequency response: 20 Hz – 20,000 Hz ±1.5 dB
Tracking ability at 315 Hz (recommended tracking force): 80 µm
Compliance, dynamic, lateral: 9 µm/mN
Stylus type: Special polished Nude Ortofon Replicant 100 on Boron Cantilever
Stylus tip radius: r/R 5/100 µm
Tracking force (recommended): 2.6 g (26 mN)

Tracking angle: 23°
Internal impedance (DC resistance): 6 Ohm
Recommended load impedance: > 10 Ohm
Cartridge body material: SLM Titanium
Cartridge colour: Black/Silver
Cartridge weight: 16 grams
