( 01 / 01 )OrtofonOM 5E Magnetic Cartridge

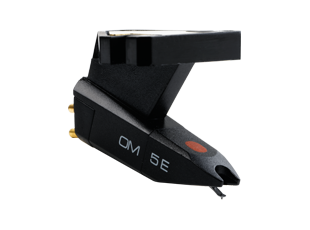

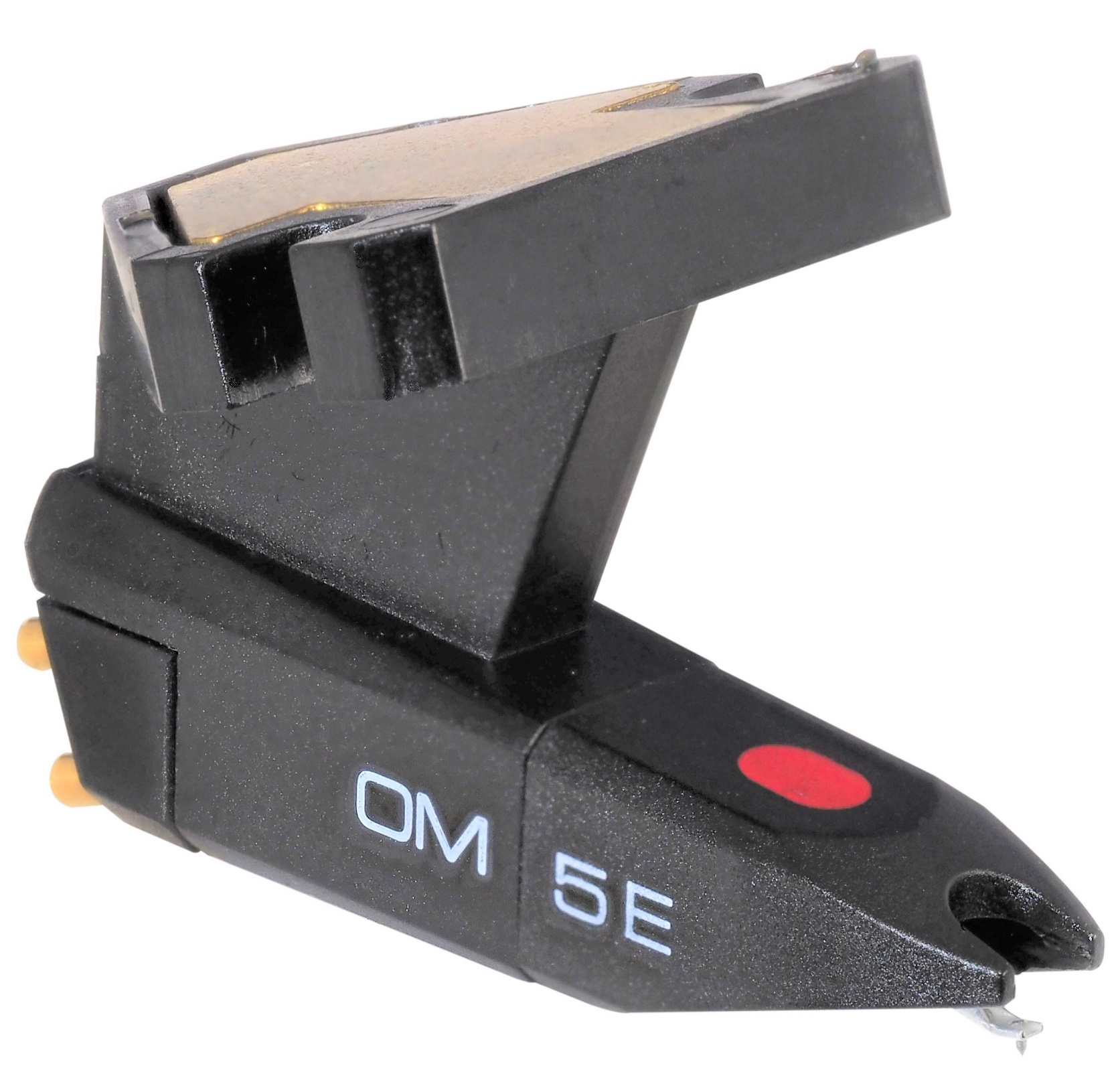

Ortofon OM 5EMoving MagnetCartridge
Contact for availability
Sold out
12 monthly paymentsfrom R 119 / month
Illustrative estimate. Final payment terms are confirmed at checkout.Delivered byFriday, 11 September
Estimated from today, excluding weekends.Ortofon OM 5E - Moving Magnet Cartridge
The Ortofon OM 5E is a premium moving magnet (MM) cartridge featuring an elliptical stylus that delivers balanced, distortion-free sound for clear and reliable vinyl playback. Ideal for general-purpose use, it offers excellent audio clarity and is compatible with standard phono inputs.
Key Features
- Moving Magnet (MM) cartridge with elliptical stylus
- Balanced and distortion-free sound reproduction
- Recommended tracking force: 1.75 g (17.5 mN)
- Wide frequency response: 20 Hz – 20,000 Hz ± 2 dB
- Lightweight design: 5 g cartridge weight
- Compatible with standard phono inputs (recommended load resistance 47 kOhm)
Specifications
- Output voltage at 1000 Hz, 5 cm/sec: 4 mV
- Channel balance at 1 kHz: 2 dB
- Channel separation at 1 kHz: 22 dB
- Channel separation at 15 kHz: 15 dB
- Frequency range at -3 dB: 20 – 25,000 Hz
- Frequency response: 20 – 20,000 Hz ± 2 dB
- Tracking ability at 315 Hz (recommended tracking force): 65 µm
- Compliance, dynamic, lateral: 20 µm/mN
- Stylus type: Elliptical
- Stylus tip radius: r/R 8/18 µm
- Tracking force range: 1.5 – 2.0 g (15 – 20 mN)
- Tracking angle: 20°
- Internal impedance (DC resistance): 750 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200 – 600 pF
- Cartridge colour (body/stylus): Black/Black
- Cartridge weight: 5 g
