Pro-Ject DAC BoxTVDigital-to-Analogue

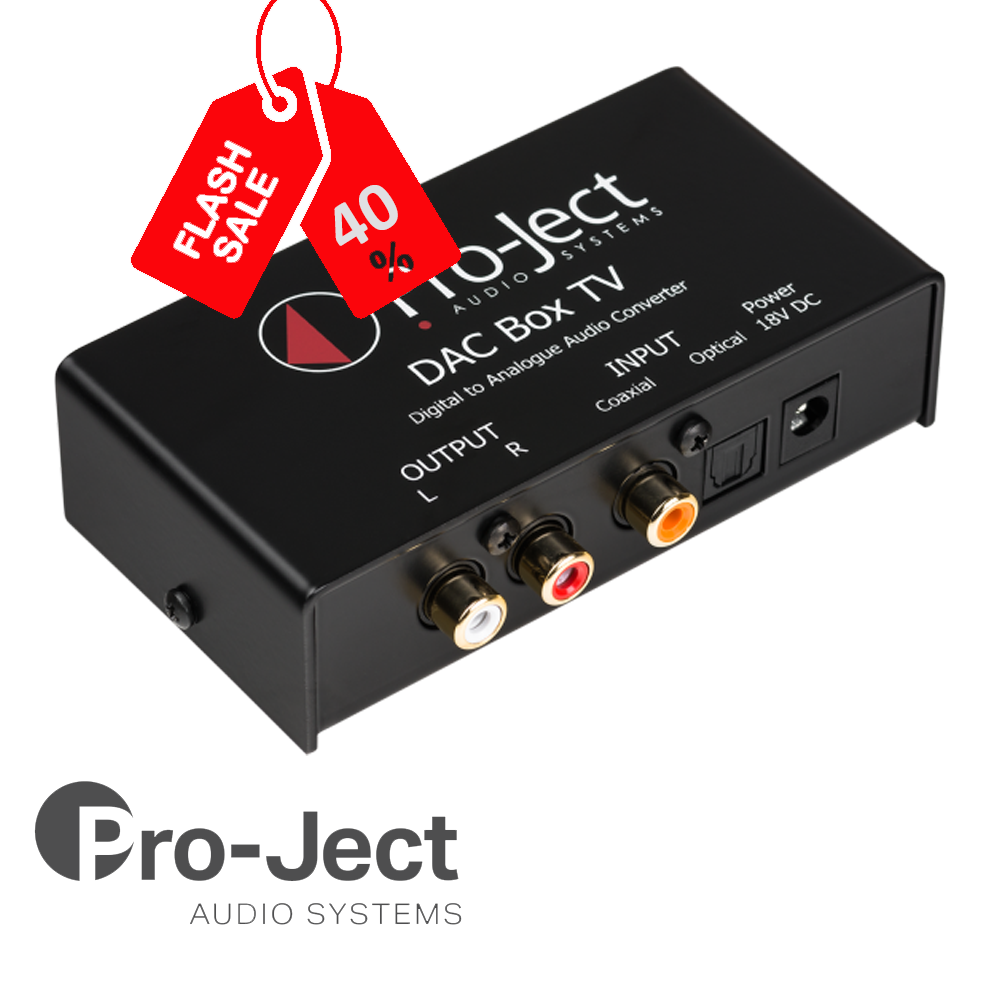

Pro-Ject DAC Box TV - Digital-to-Analogue Converter

Enhance your TV, computer, or digital devices with the Pro-Ject DAC Box TV, a compact and affordable digital-to-analogue converter that delivers premium hi-fi sound quality. Ideal for modern TVs, Blu-ray players, satellite receivers, and game consoles, it converts digital audio signals into rich analogue sound without the need for bulky surround amplifiers.

Key Features

• High-quality audio upgrade for TV, satellite, computer, and more
• 24bit/192kHz Cirrus Logic DAC chip for superior sound clarity
• Supports up to 24bit audio data and 192kHz sampling rates
• Automatic signal sensing technology for seamless operation
• Low clock jitter sensitivity reduces distortion
• Gold-plated RCA connectors (input and output) for optimal connectivity
• Durable metal casing protects against vibration and interference
• Sleek black casing design

Specifications

Specification	Details
D/A Converter	Cirrus Logic CS4344 (Delta-Sigma type)
Sampling Rates (Coax)	32 / 44.1 / 48 / 88.2 / 96 kHz
Sampling Rates (Optical)	32 / 44.1 / 48 / 88.2 / 96 kHz
Digital Inputs	1 x Coaxial (S/PDIF), 1 x Optical (Toslink®)
Dynamic Range	105 dB
Analogue Output	1 pair RCA/Cinch connectors
Output Voltage	0.7 Veff
Output Impedance	< 100 ohms
Total Harmonic Distortion (THD)	-90 dB
Power Consumption	< 1 watt standby, 200 mA max
Power Supply	5V/1000mA DC; 220 - 240V, 50Hz
Dimensions (W x H x D)	107 x 30 x 64 mm (75 mm including sockets)
Weight	290 g (without power supply)
