Pro'sKit 4-in-1Fibre Optic PowerMeter

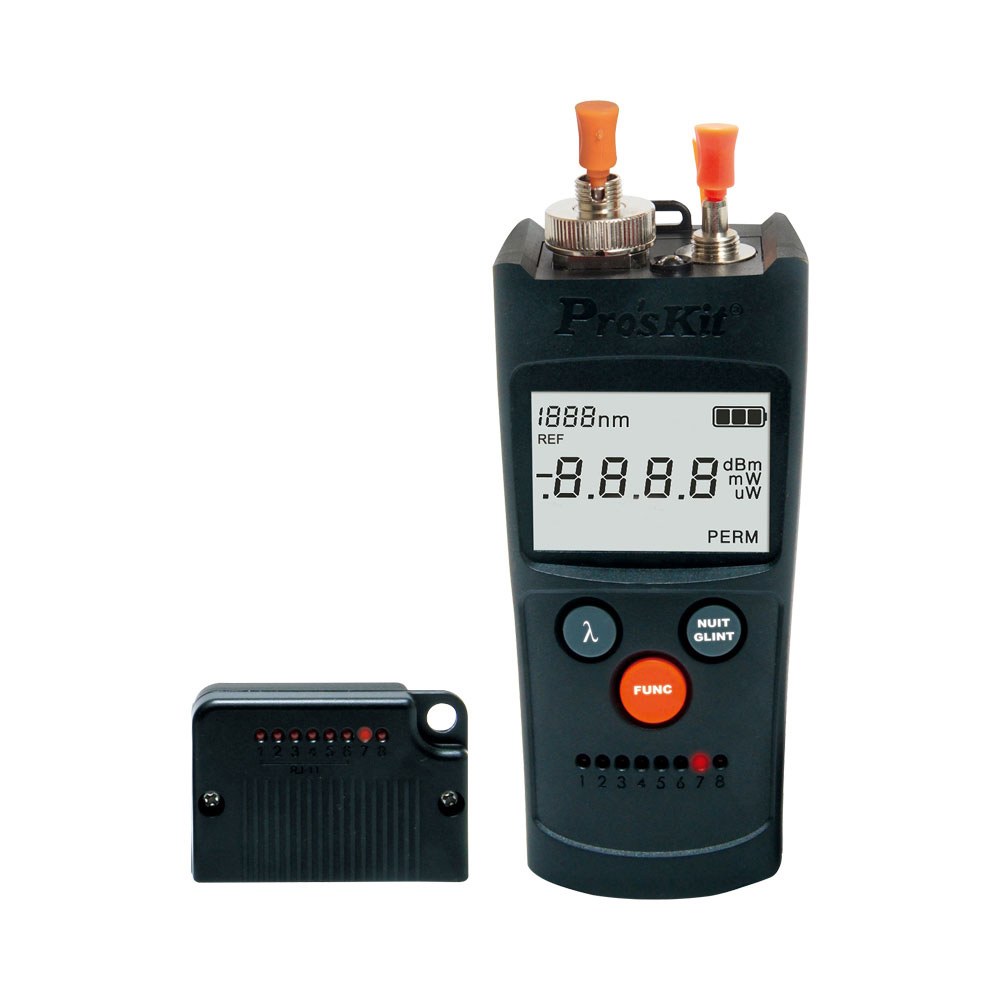

Pro'sKit MT-7602 — 4-in-1 fibre optic power meter combining an optical power meter, visual fault locator, RJ-45/RJ-11 cable tester, and LED flashlight in a single field instrument.

The MT-7602 eliminates the need for multiple instruments on a fibre and copper installation job. The optical power meter measures received light levels for link loss verification; the visual fault locator (VFL) injects red laser light to locate breaks and bends in fibre runs. The integrated RJ-45/RJ-11 cable tester checks network and telephone cable continuity, and the LED flashlight illuminates dark enclosures and cable ducts. FC, SC, and ST connectors are supported natively; an optional LC adapter (NET-5MT-7601-LC) extends LC support. Powered by 2× AA batteries or rechargeable cells via USB.

Key features

• Optical power meter for link loss measurement
• Visual fault locator (VFL) for break and bend detection
• RJ-45 and RJ-11 cable tester
• LED flashlight
• FC, SC, ST connector support (LC optional via NET-5MT-7601-LC)
• 2× AA batteries or USB rechargeable
• Low battery LED indication

Specifications

• Functions: Power meter, VFL, cable tester, flashlight
• Fibre connectors: FC, SC, ST (LC optional)
• Cable test: RJ-45, RJ-11
• Power: 2× AA 1.5V or USB rechargeable
• LC adapter: NET-5MT-7601-LC (optional)
