Pro'sKit PoENetwork CableTester

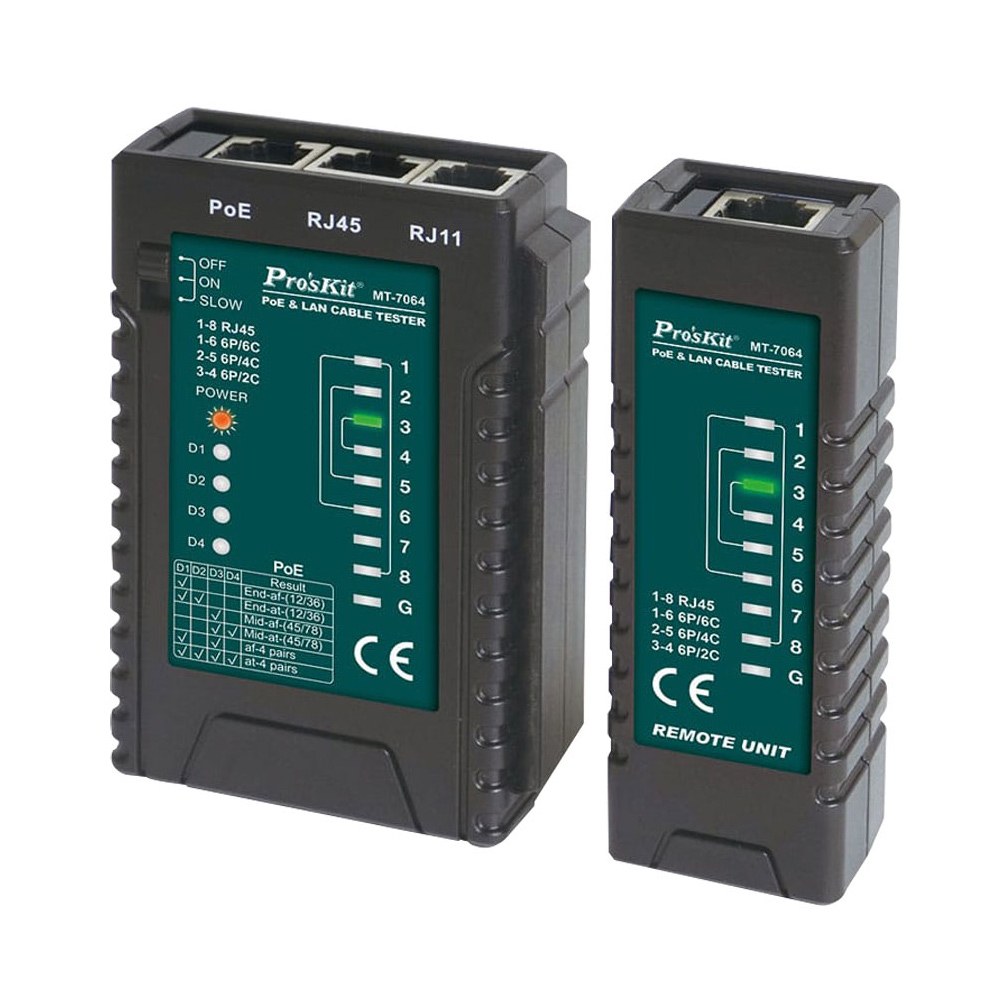

Pro'sKit MT-7064 — network cable tester with PoE detection for RJ-45, RJ-12, and RJ-11 cables, identifying IEEE 802.3af/at PoE presence and distinguishing Midspan from Endspan power sources.

The MT-7064 adds active PoE detection to standard cable testing. Before installing a PoE IP camera or access point, it confirms whether the connected switch port is supplying power and whether it is an Endspan (switch PSE) or Midspan (injector PSE) source — useful when troubleshooting mixed PoE infrastructure. Standard cable tests check all wire pairs for continuity, short circuits, opens, and crossed pairs. Powered by a standard 9V battery.

Key features

• Tests RJ-45, RJ-12, and RJ-11 cables
• Automatic continuity, short, open, and crossed pair detection
• Detects IEEE 802.3af and 802.3at PoE presence (up to 48V DC)
• Identifies Midspan vs Endspan PoE sources
• 9V battery powered

Specifications

• Connector types: RJ-45, RJ-12, RJ-11
• Tests: Continuity, short, open, crossed pairs
• PoE detection: IEEE 802.3af / 802.3at (up to 48V DC)
• PoE type ID: Midspan / Endspan
• Power: 9V battery

Need help choosing? Contact us at 010 288 2024 or support@audicoonline.co.za.
