Proskit MT-7029NPoE DC 48VNoise-Filtering

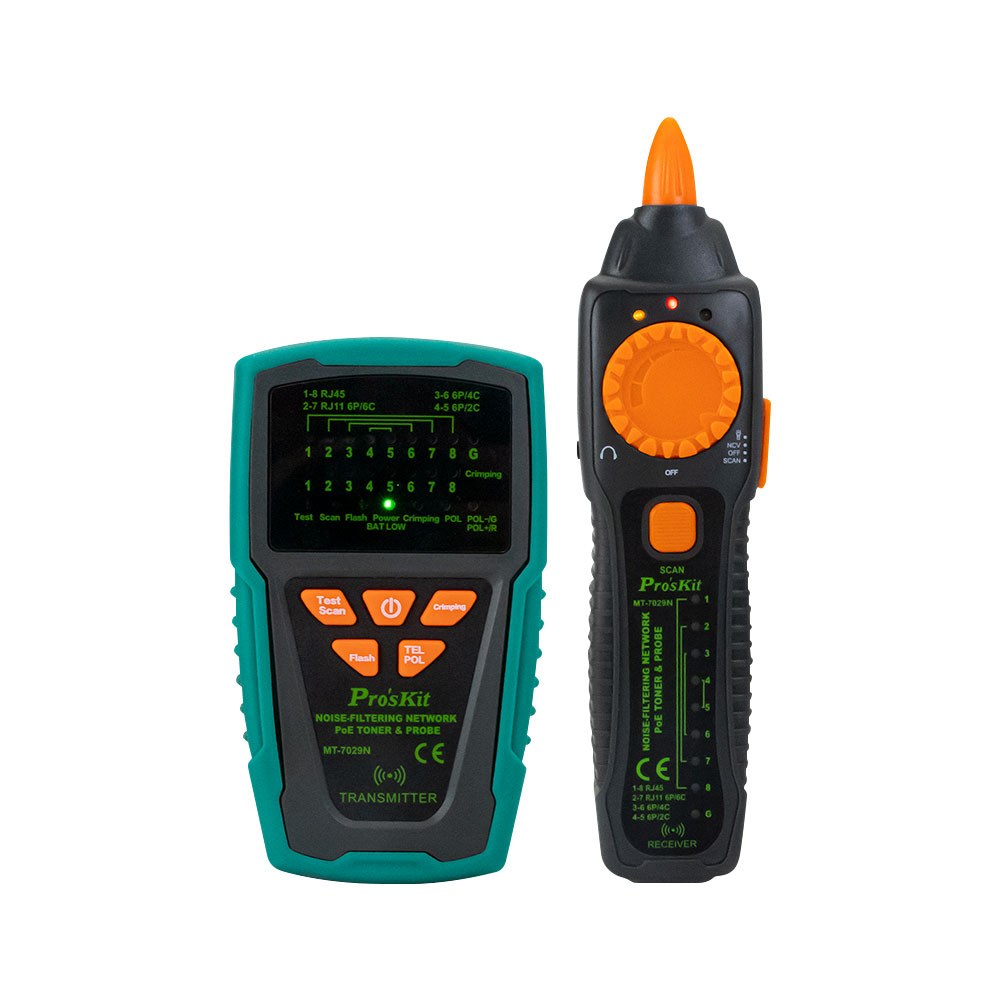

Proskit MT-7029N — PoE-rated (up to DC 48V) noise-filtering tone generator and inductive probe kit for tracing cables on live PoE switches, STP wire identification, port location with LED flash, crimping quality testing, and cable mapping up to 300m.

The MT-7029N is designed for structured cabling and network installations where PoE switches are present. The noise-filtering circuitry maintains reliable tone detection even on live PoE-powered cables up to DC 48V. STP (shielded twisted pair) wire tracing identifies individual pairs on shielded cable without disconnecting. The port locator function flashes the switch port LED to physically confirm which port a cable is connected to. Cable mapping covers runs up to 300m. Crimping quality testing verifies connector termination integrity.

Key features

• PoE-rated to DC 48V — trace on live PoE switches
• Strong anti-noise circuitry
• STP wire tracing
• Switch port locator with flashing LED
• Single-way plug crimping quality test
• Cable mapping and status indication up to 300m

Specifications

• Model: MT-7029N
• PoE rating: Up to DC 48V
• Cable tracing range: 300m
• Functions: Tone generation, PoE/STP trace, port flash, crimp test, cable map

Need help choosing? Contact us at 010 288 2024 or support@audicoonline.co.za.
