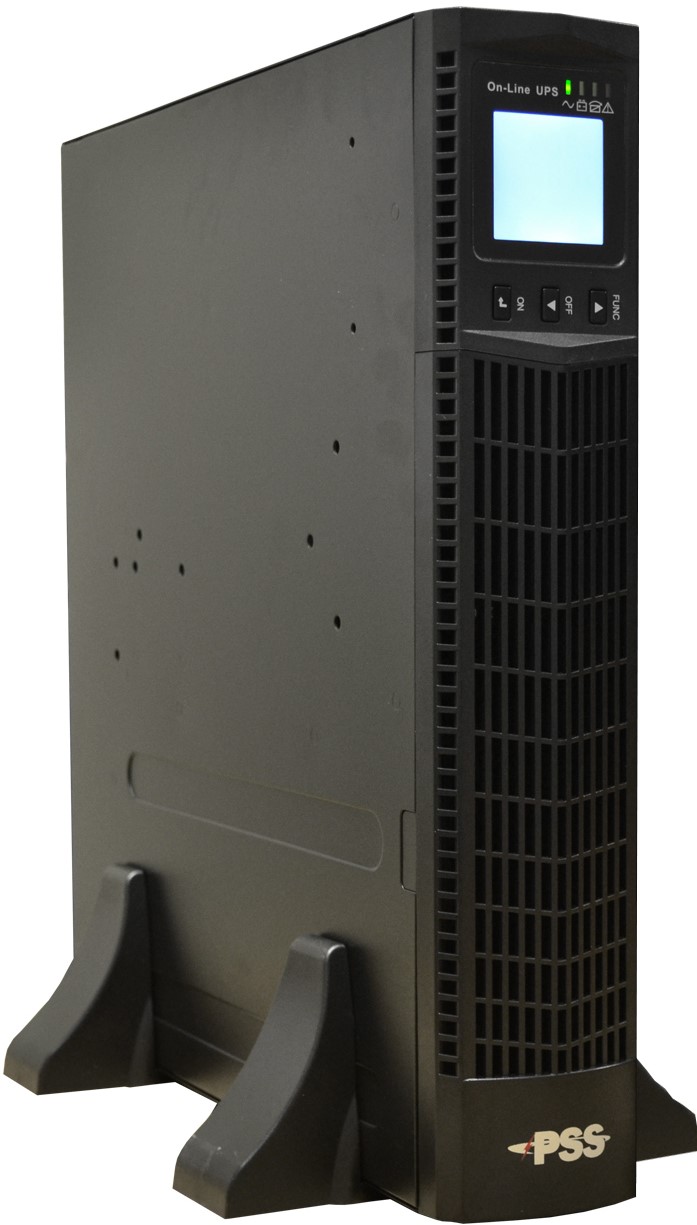

PSS M Series 3KVATrue Online UPSRack/Tower

PSS M Series 3KVA True Online UPS — a rack/tower convertible double-conversion UPS delivering 3KVA/2700W pure sine wave output for servers, medical equipment, and critical IT infrastructure.

The M Series uses true online double-conversion technology to regenerate a clean pure sine wave on both mains and battery, ensuring critical equipment receives stable, interference-free power at all times. A 72VDC hot-swappable battery pack (6 × 12V/9Ah) provides up to 4 hours of runtime with extended battery banks, and the full LCD control panel gives real-time visibility of load, voltage, and battery status. An optional SNMP/dry contact management card enables remote monitoring and intelligent shutdown. The chassis converts between rackmount and tower orientation without tools for flexible deployment in server rooms and comms cabinets.

Key features

• True online double-conversion — pure sine wave output on mains and battery
• 3KVA / 2700W capacity, 0.9 power factor
• Rack/tower convertible chassis (1U/2U)
• Hot-swappable battery pack — 6 × 12V/9Ah (72VDC)
• Up to 4 hours runtime with extended battery banks
• Full LCD digital display with DSP control
• Optional SNMP/dry contact intelligent management card
• ECO mode efficiency up to 94%

Specifications

• Model: M3RT
• Capacity: 3KVA / 2700W
• Power factor: 0.9
• Input voltage: 230V single phase with ground
• Output voltage: 230V
• Voltage range (full load): 200–290V AC
• Frequency range: 40–70 Hz
• Efficiency (ECO mode): Up to 94%
• Battery: 6 × 12V/9Ah lead acid; 72VDC rated; hot-swappable
• Recharge time: 5 hours
• Management: Optional SNMP/dry contact card; EPO remote emergency shutdown
• Alarms: Audible: battery mode, low battery, overload, fault
• Operating environment: 0–40°C, 0–90% RH (non-condensing)
• Dimensions: 440 × 710 × 86.5 mm
• Weight: 41 kg (net) / 44 kg (gross)
• Warranty: 12 months
