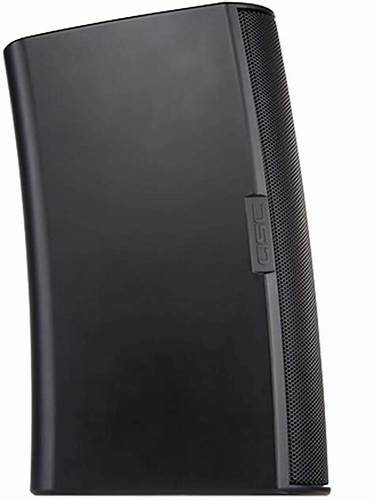

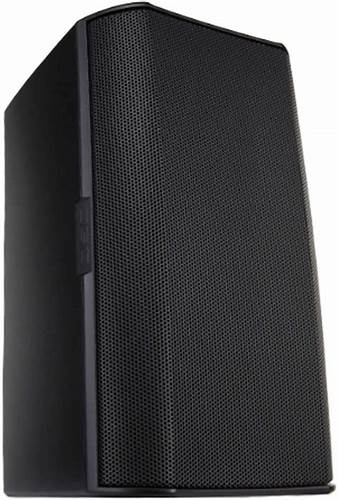

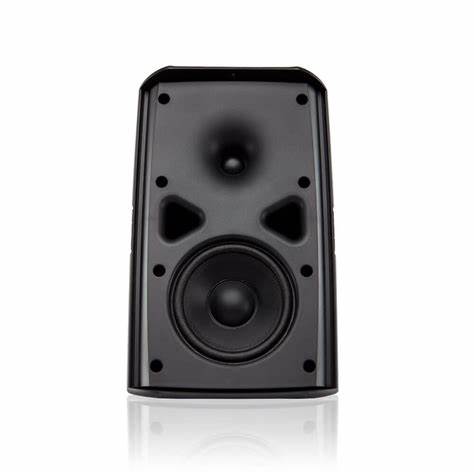

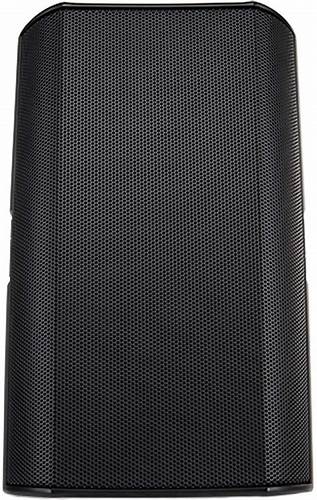

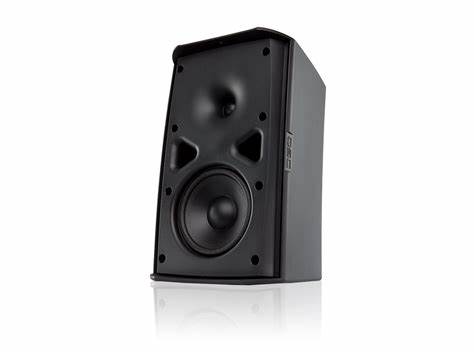

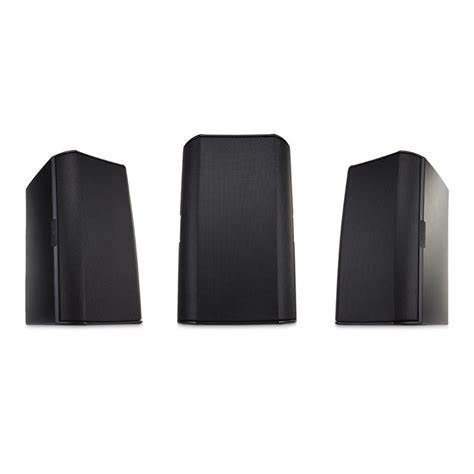

Q-SYS AD-S4T-BK AcousticDesign Series 4.5" Two-way Surface Mount Loudspeaker, Black The Q-SYS AD-S4T-BK is a premium 4.5-inch two-way surface mount loudspeaker designed for professional, commercial, and high-fidelity audio installations. Part of the AcousticDesign Series, this speaker delivers exceptional audio clarity and wide coverage, ideal for background music, voice reinforcement, and paging in retail, hospitality, conference rooms, and educational environments. Key Features 4.5-inch two-way loudspeaker with 120° conical coverage Weather-resistant, durable enclosure with sleek black finish for indoor and outdoor use Proprietary Intrinsic Correction™ voicing via Q-SYS platforms for optimal DSP deployment 70/100V transformer with low-impedance bypass for flexible system integration Euroblock connectors for simplified installation Versatile mounting hardware for horizontal or vertical installation Frequency response: 70 Hz – 20 kHz Power handling: 60 watts RMS Specifications Model Number: AD-S4T-BK Driver Size: 4.5 inches Type: Two-way surface mount loudspeaker Coverage Angle: 120° conical Frequency Response: 70 Hz – 20 kHz Power Handling: 60 watts RMS Transformer: 70/100V with low-impedance bypass Connectors: Euroblock Finish: Black, weather-resistant enclosure

Product details

Name
Q-SYS AD-S4T-BK AcousticDesign Series 4.5" Two-way Surface Mount Loudspeaker, Black
Brand
Q-SYS
Model
AD-S4T-BK
SKU
AD-S4T-BK
MPN
AD-S4T-BK
Commerce action
local-proof-only

Product images

Product details

Name
Q-SYS AD-S4T-BK AcousticDesign Series 4.5" Two-way Surface Mount Loudspeaker, Black
Brand
Q-SYS
SKU / MPN
AD-S4T-BK / AD-S4T-BK
Breadcrumb world
Uncategorised

Technical specifications

Specifications

Connections4-pin Euroblock
Nominal Impedance8 Ohms
Recommended Amplifier PowerUp to 110 W
ApplicationIndoor/Outdoor Surface Mount
Backplate MaterialSteel
BrandQ-SYS
Cabinet TypePorted
CertificationsCE, UL, RoHS
ColorBlack
Continuous Power Handling (IEC)110 W
