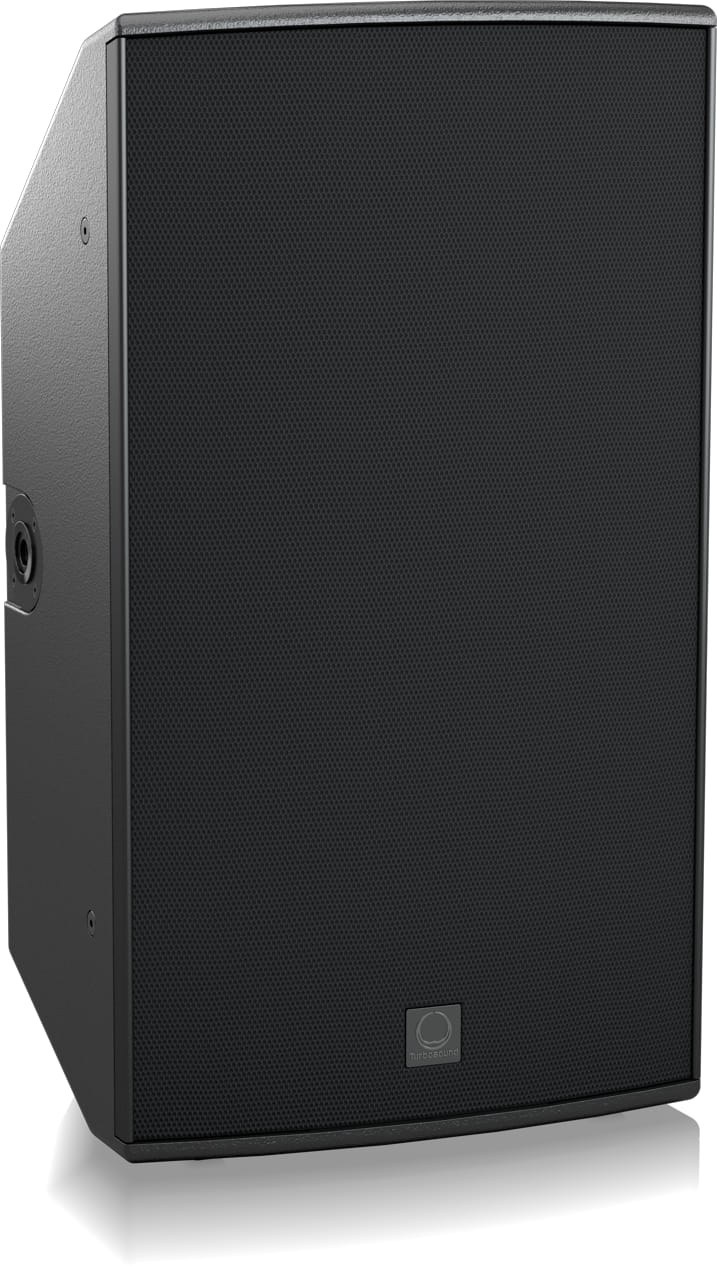

Turbosound TQ-1515" PassiveFull-Range

Turbosound TQ-15 is a two-way, full-range passive 15-inch loudspeaker from the Turbosound TQ series, rated at 550 W continuous and 2,200 W peak for speech and music reinforcement in touring and installation work.

Engineered to work with Lab Gruppen amplifiers and Lake loudspeaker processing, the TQ-15 suits front-of-house, sidefill and delay-line duties. A 15-inch neodymium low-frequency driver with a low-mass voice coil is paired with a 1.4-inch neodymium compression driver on a rotatable 80° x 30° horn with a Dendritic Plane Wave Transformer (DPWT) waveguide, all matched by an internal passive crossover in a reflex-loaded plywood enclosure. It pairs naturally with the TQ-15B 15-inch subwoofer.

Key features

• 2-way full-range passive design, 550 W continuous / 2,200 W peak
• 15" neodymium LF driver and 1.4" neodymium HF compression driver
• Rotatable 80° H x 30° V horn with DPWT waveguide
• IP44 rated for indoor and covered outdoor use
• M10 rigging points, dual 35 mm pole sockets and integrated handle
• Optional TQ15-SB swivel bracket, TQ15-YB yoke bracket and TQ-FB fly bar

Specifications

• Model: TQ-15 (TQ15)
• Frequency response (±3 dB): 52 Hz - 20 kHz
• Frequency response (-10 dB): 39 Hz - 20 kHz
• Nominal dispersion: 80° H x 30° V (rotatable)
• Power handling: 550 W continuous, 2,200 W peak
• Sensitivity (1 W @ 1 m): 99.5 dB
• Maximum SPL: 139 dB peak
• Impedance: 8 ohms
• Connectors: 2 x Neutrik speakON NL4 (input and link)
• Enclosure: 12 mm and 15 mm plywood, PU semi-matt black paint, cloth-wrapped powder-coated steel grille
• Dimensions (H x W x D): 745 x 415 x 420 mm
• Net weight: 23.5 kg
• IP rating: IP44
