( 02 / 02 )Ajax DoorProtectMagnetic OpeningDetector

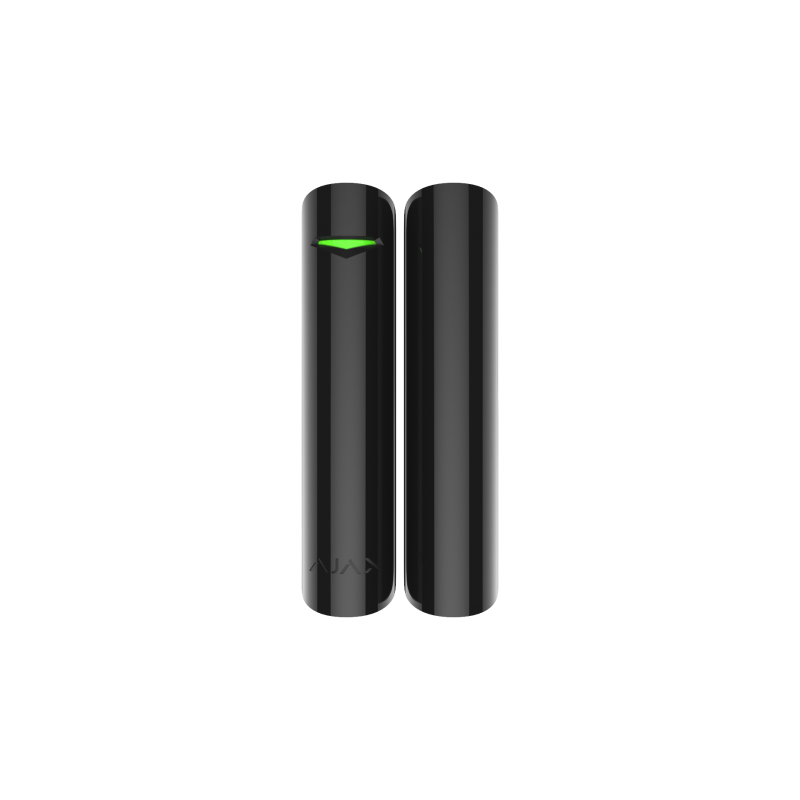

Ajax DoorProtect — a compact wireless magnetic opening detector for doors and windows, the most widely used contact sensor in any Ajax security system.
The Ajax DoorProtect mounts in two parts on any door or window — the main body on the frame and the magnet on the moving part. When the door or window is opened, the magnetic field breaks and an alarm is sent to the Ajax Hub. It installs without any wiring and communicates via Jeweller to the hub. The secondary input terminal allows a wired detector (such as a glass break sensor) to be connected and reported through the same device. For enhanced detection including shock and tilt sensing, see the DoorProtect Plus. Black finish suits dark-toned frames and modern interiors.
Magnetic reed detection for door and window opening
Wireless Jeweller protocol, no wiring required
Need help choosing? Contact us at +27 32 586 3694 or support@audicoonline.co.za.
( Specifications )
| Activation Distance | 15 mm to magnet |
| Adjustable Magnet Distance | Yes |
| Alarm Type | Opening |
| Antenna | Integrated |
| API for Integration | Yes |
| Battery Life | Up to 7 years |
| Battery Type | CR123A |
| Brand | AJAX |
| Certifications | CE, IP50 |
| Color | Black |
| Communication Protocol | Jeweller (868.0-868.6 MHz) |
| Compatibility | AJAX security systems |
| Compatibility with Hub | Ajax hubs |
| Connectivity | Wireless |
