( 01 / 01 )Ajax KeyPad PlusWireless IndoorKeypad

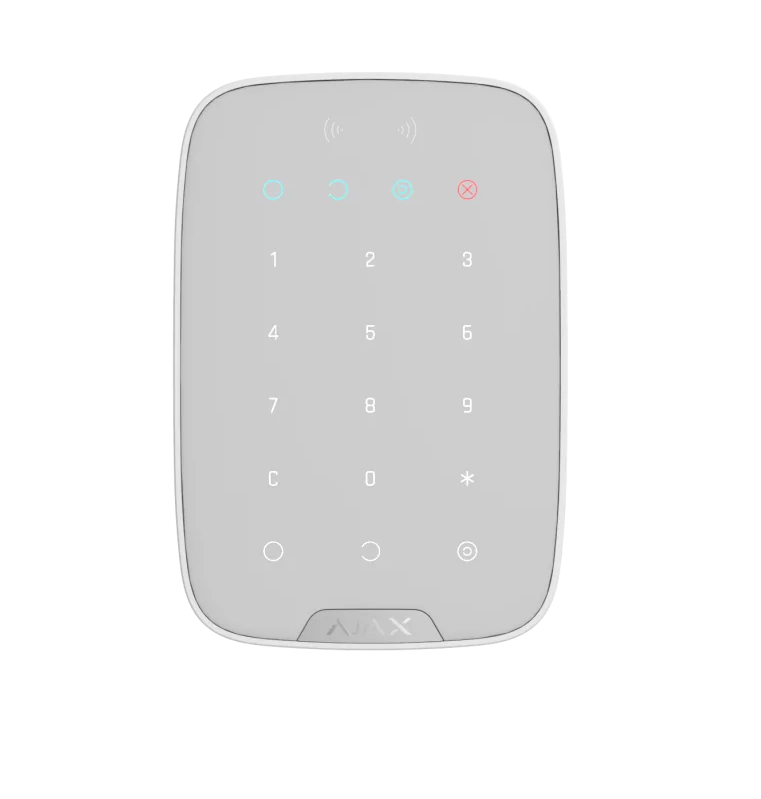

Ajax KeyPad Plus — a wireless indoor keypad combining PIN code entry with a built-in contactless card and tag reader for flexible arm and disarm access.
The Ajax KeyPad Plus extends the standard KeyPad Jeweller with a contactless reader that accepts Ajax Brelok tags and compatible RFID cards. Users can arm or disarm the system by presenting a tag, entering a PIN, or both — each access method is configurable per user. Up to 200 access codes and tags can be registered. Communicates wirelessly via Jeweller, no data cable required. Backlit buttons with proximity activation. Tamper-protected. Suitable for households, offices, and rental properties where different users need different access methods. White finish.
Key features
- PIN code entry plus contactless card/tag reader
- Up to 200 access codes and tags
- Accepts Ajax Brelok tags and compatible RFID cards
- Wireless Jeweller protocol, no data cable
- Backlit buttons with proximity activation
- Tamper protection
- White finish
Specifications
- Model: AJAX-KP-PLUS-W
- Colour: White
- Entry method: PIN code + contactless card/tag (RFID)
- Access codes/tags: Up to 200
- Protocol: Jeweller wireless
- Power: 4 x AA batteries or 6V DC
- Operating temperature: -10°C to +40°C
Need help choosing? Contact us at 010 288 2024 or support@audicoonline.co.za.
( Specifications )
| Active Alarm Current | 2.5 mA |
| Alarm Signal Delivery Time | 0.15 seconds |
| Anti-masking | No |
| Anti-Sabotage | Jamming detection |
| Arm Disarm Functions | Yes |
| Audible Indications | Built-in sounder |
| Battery Life | Up to 2.5 years |
| Built-in Proximity Card Reader | No |
| Certification | EN 50131, Grade 2 |
| Color | White |
| Communication Technology | Jeweller Radio Technology |
| Compatibility | Operates with all AJAX hubs, range extenders, ocBridge Plus, uartBridge |
| Compatible With | AJAX Hub, Hub Plus, Hub 2, Hub 2 Plus |
| Dimensions | 150x102.5x13.2 mm |
