( 06 / 06 )Tannoy AMS 8DCWhite 8" DualConcentric

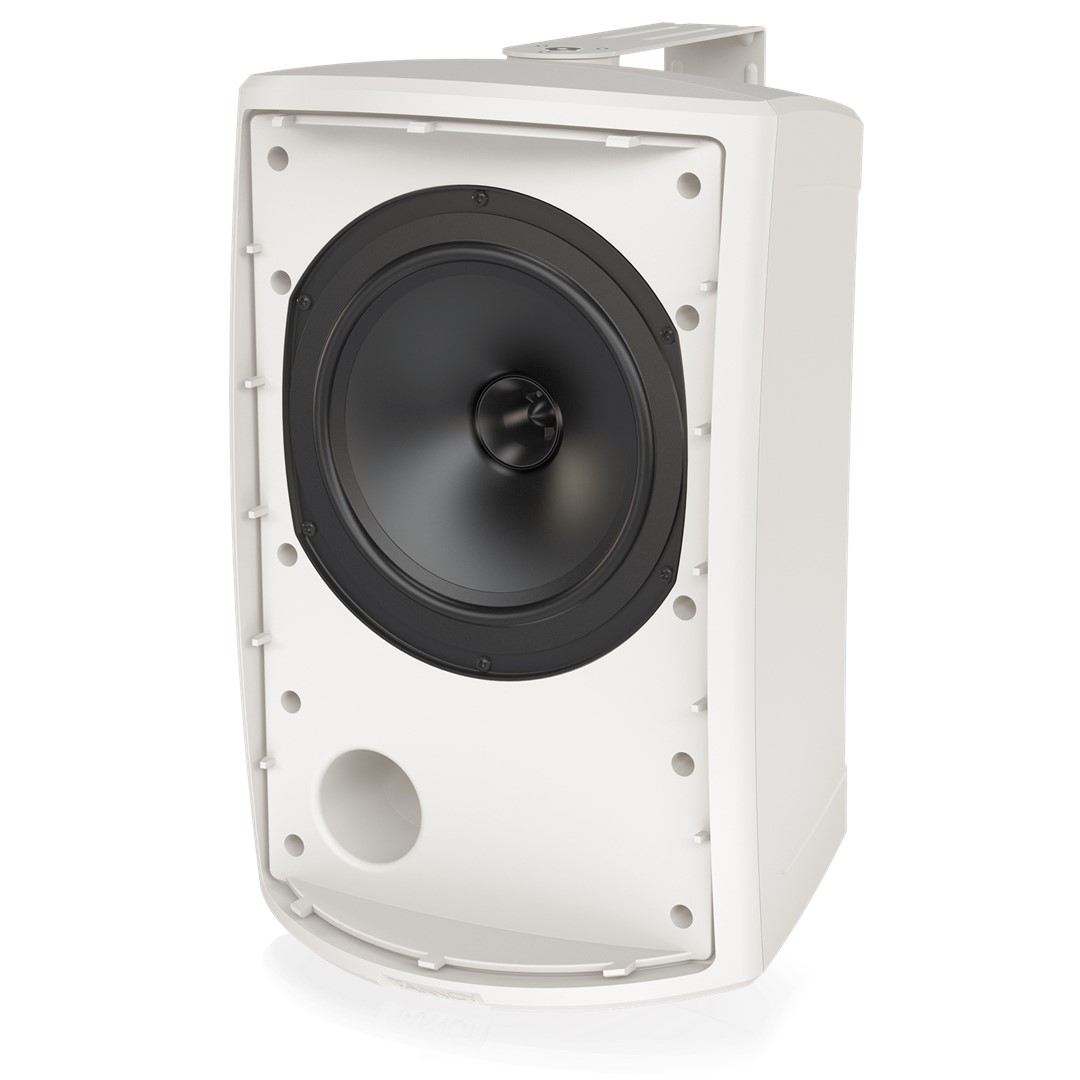

Tannoy AMS 8DC White — an 8-inch Dual Concentric surface-mount loudspeaker engineered for auditoriums, conference centres, and large-venue commercial audio.
The AMS-8DC-WH delivers Tannoy's Dual Concentric point-source coherence from an architecturally discreet surface-mount enclosure. The 8-inch DC driver produces balanced audio across deep lows and crisp highs, with a wide coverage pattern suited to large, reverberant spaces such as houses of worship, lecture halls, and sports facilities. The weather-resistant enclosure extends its use to covered outdoor environments. The 70V/100V transformer with bypass option ensures compatibility with distributed PA systems and direct low-impedance amplification alike. White finish integrates cleanly into light-coloured architectural surfaces.
8-inch Tannoy Dual Concentric driver for coherent point-source sound
Wide, even coverage — suited to large reverberant spaces
Weather-resistant enclosure for indoor and outdoor use
( Specifications )
| Impedance | 8 Ohms |
| Frequency response | 55 Hz - 30 kHz |
| Adjustment Controls | Front accessible |
| Available Angles | Adjustable through 180 degrees |
| Baffle Material | UV-stabilized ABS |
| Brand | Tannoy |
| Certification | UL 1480, UL 2043 |
| Color | White |
| Connector Type | Spring-loaded terminals |
| Coverage Angle | 90 degrees |
| Crossover frequency | 2.8 kHz |
| Crossover Type | Passive built-in |
| Cutout Dimensions | 305 mm diameter |
| Dimensions | 348 x 319 mm |
