Aten AP9012-Channel DanteExpansion

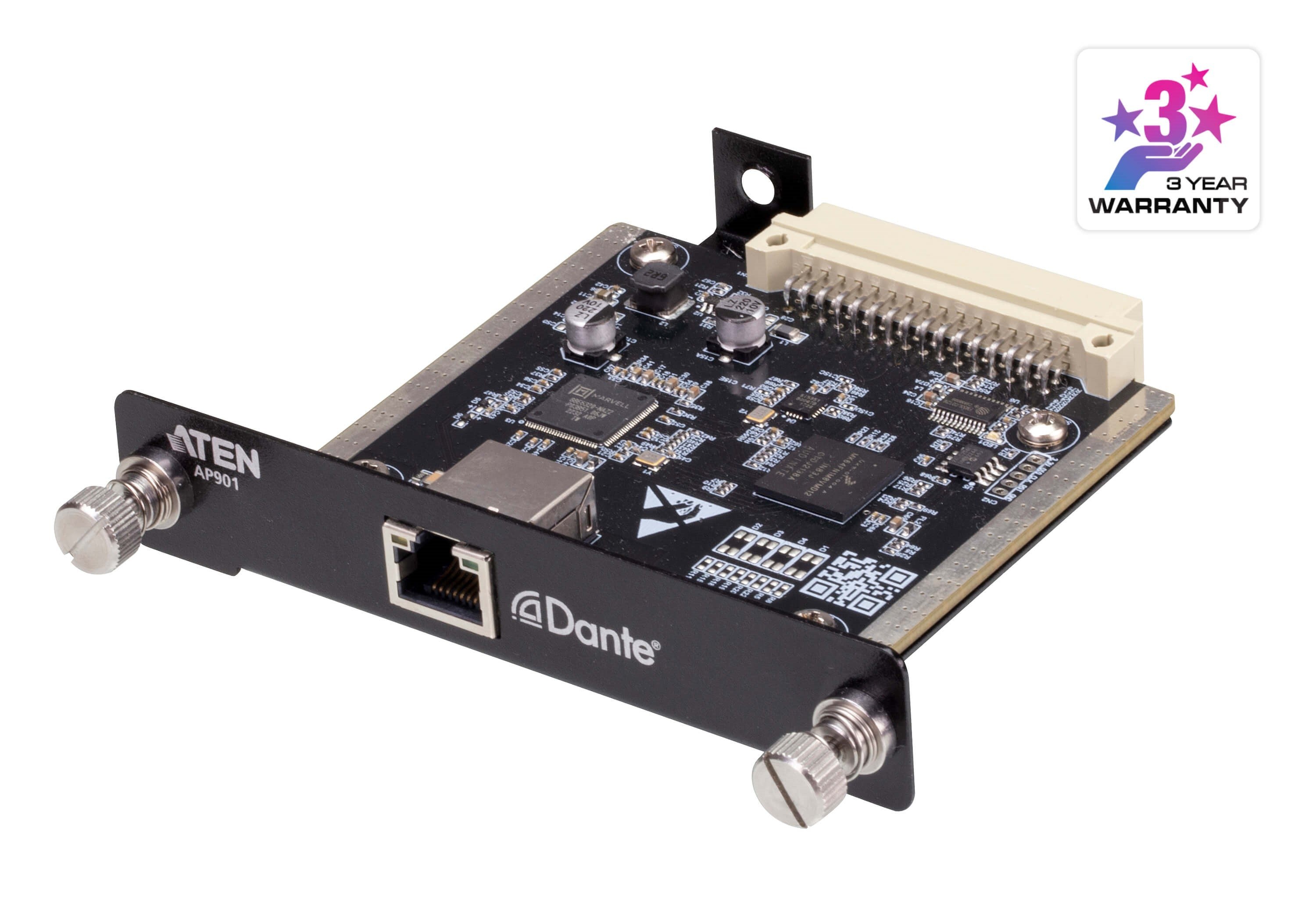

Aten AP901 — 2-channel Dante AoIP expansion card for ATEN AP series DSP power amplifiers, adding two high-quality digital audio inputs from any Dante-enabled source on the network.

The AP901 slots into the expansion bay of compatible ATEN AP series amplifiers (AP206, AP212, and similar), adding two Dante network audio inputs without external converters. Once installed, the amplifier receives audio from any Dante-enabled device on the network — digital mixers, DSPs, media players, and other amplifiers — at 24-bit depth and 44.1/48 kHz sampling. This broadens the range of Dante-based installation scenarios and simplifies wiring by replacing analogue cable runs with network connections. AES67 compatibility extends interoperability across multi-vendor Dante ecosystems.

Key features

• Adds 2 Dante AoIP inputs to compatible ATEN AP series DSP amplifiers
• Receives audio from any Dante-enabled device on the network
• 24-bit audio at 44.1 kHz and 48 kHz sampling rates
• Easy slot installation into AP amplifier expansion bay
• AES67 compatible for multi-vendor Dante interoperability

Specifications

• Dante inputs: 2 channels
• Bit depth: 24-bit
• Sampling rates: 44.1 kHz, 48 kHz
• Standard: AES67 compatible
• Installation: Expansion slot in AP series amplifier
• Compatible amplifiers: ATEN AP series (AP206, AP212, and compatible)
