Denon PMA-60Digital IntegratedAmplifier

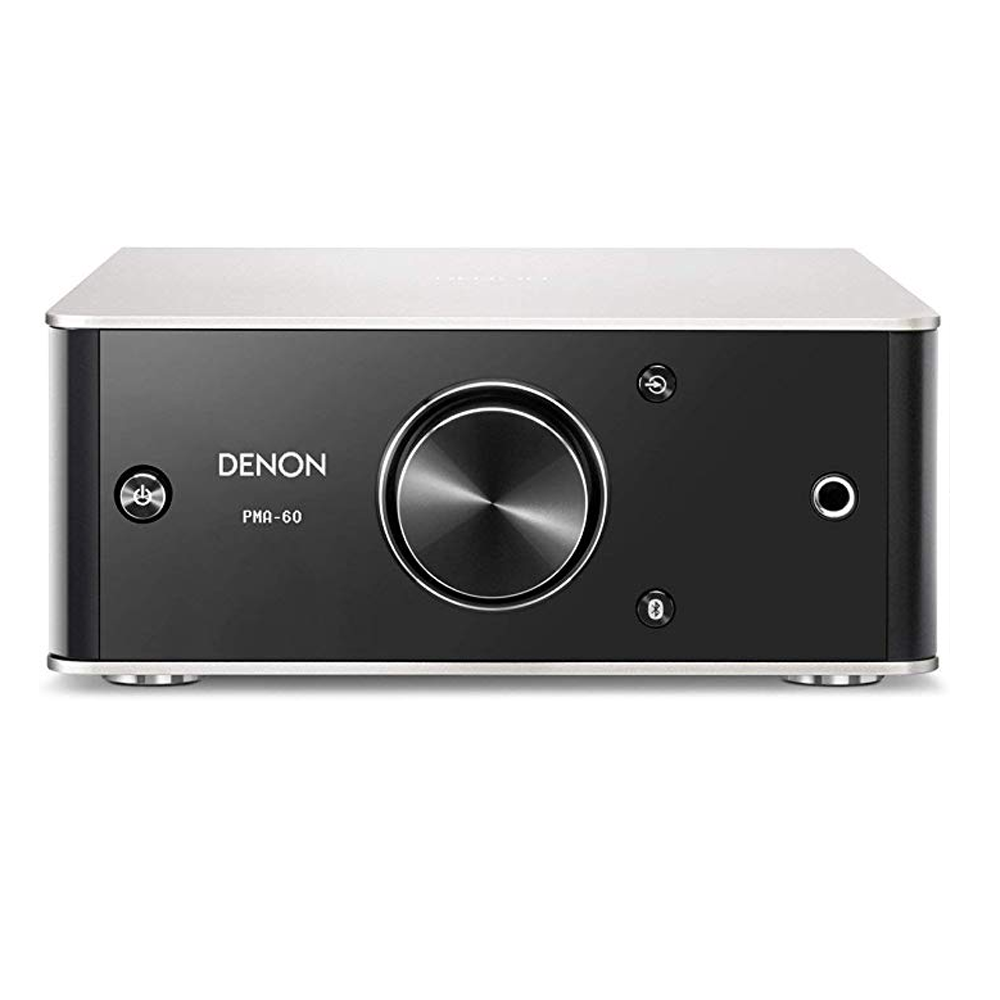

Denon PMA-60 - Digital Integrated Amplifier

The Denon PMA-60 is a compact, high-fidelity digital integrated amplifier delivering exceptional sound quality and versatile connectivity in a stylish, space-saving design. Perfect for modern audio setups, it combines advanced Denon technology with sleek aluminium panels for premium performance.

Key Features

• Class D power with next-generation DDFA amplifier technology
• Advanced AL32 Processing Plus for high-resolution sound reproduction
• Supports DSD 11.2 MHz and PCM 384 kHz / 32-bit via USB-DAC
• Digital isolator to eliminate PC noise
• High-quality headphone amplifier with adjustable impedance control
• Bluetooth compatible with aptX™ Low Latency, AAC, SBC and NFC pairing
• Compact design with vertically adjustable OLED display
• Premium aluminium panels with elegant finish
• Multiple digital inputs: 2 optical, 1 coaxial, and USB-B for high-resolution audio
• Precise digital volume control with 1dB steps and minimal crosstalk
• Multi-way speaker connectors supporting bare wire, pin, and banana plugs

Overview

With over 100 years of audio engineering expertise, Denon's PMA-60 delivers true Hi-Fi sound in a compact form. Its Class D DDFA amplifier ensures high efficiency and low distortion, producing 50W per channel into 4 ohms. The amplifier features bespoke Hi-Fi components from Denon's high-end NE series, carefully selected for superior sound quality.

The PMA-60 supports high-resolution audio playback via USB-B input, compatible with PCM up to 32-bit/384 kHz and DSD up to 11.2 MHz. Its advanced master clock design reduces jitter for precise digital signal processing. Bluetooth connectivity includes NFC for instant pairing and Qualcomm aptX Low Latency for CD-quality wireless audio without lip-sync issues.

Designed with versatility in mind, the PMA-60 offers analogue and digital inputs, a high-quality headphone amplifier with adjustable impedance, and a crisp OLED display that adjusts orientation when placed vertically. Its elegant aluminium chassis combines glossy and matt black surfaces with silver accents, making it a stylish addition to any audio setup.

Specifications

• Output Power 8 Ohm (20 Hz - 20 kHz, T.H.D. 0.07%): 25W (1 kHz)
• Output Power 4 Ohm (1 kHz, T.H.D. 0.7%): 50W
• Total Harmonic Distortion: 0.00%
• Signal to Noise Ratio (High level): 110 dB
• Input Sensitivity (High level): 70 mV
• Treble Control: ± 8 dB at 12 kHz
• Bass Control: ± 8 dB at 100 Hz
• Digital Inputs: 2 optical, 1 coaxial (up to 192 kHz/24-bit)
• USB-DAC Input: PCM up to 32-bit/384 kHz, DSD 2.8/5.6/11.2 MHz
• Bluetooth: aptX Low Latency, AAC, SBC, NFC compatible
• Headphone Output: 6.3mm jack with adjustable impedance (low, medium, high)
