Nanoleaf 4D ScreenMirror +Lightstrip

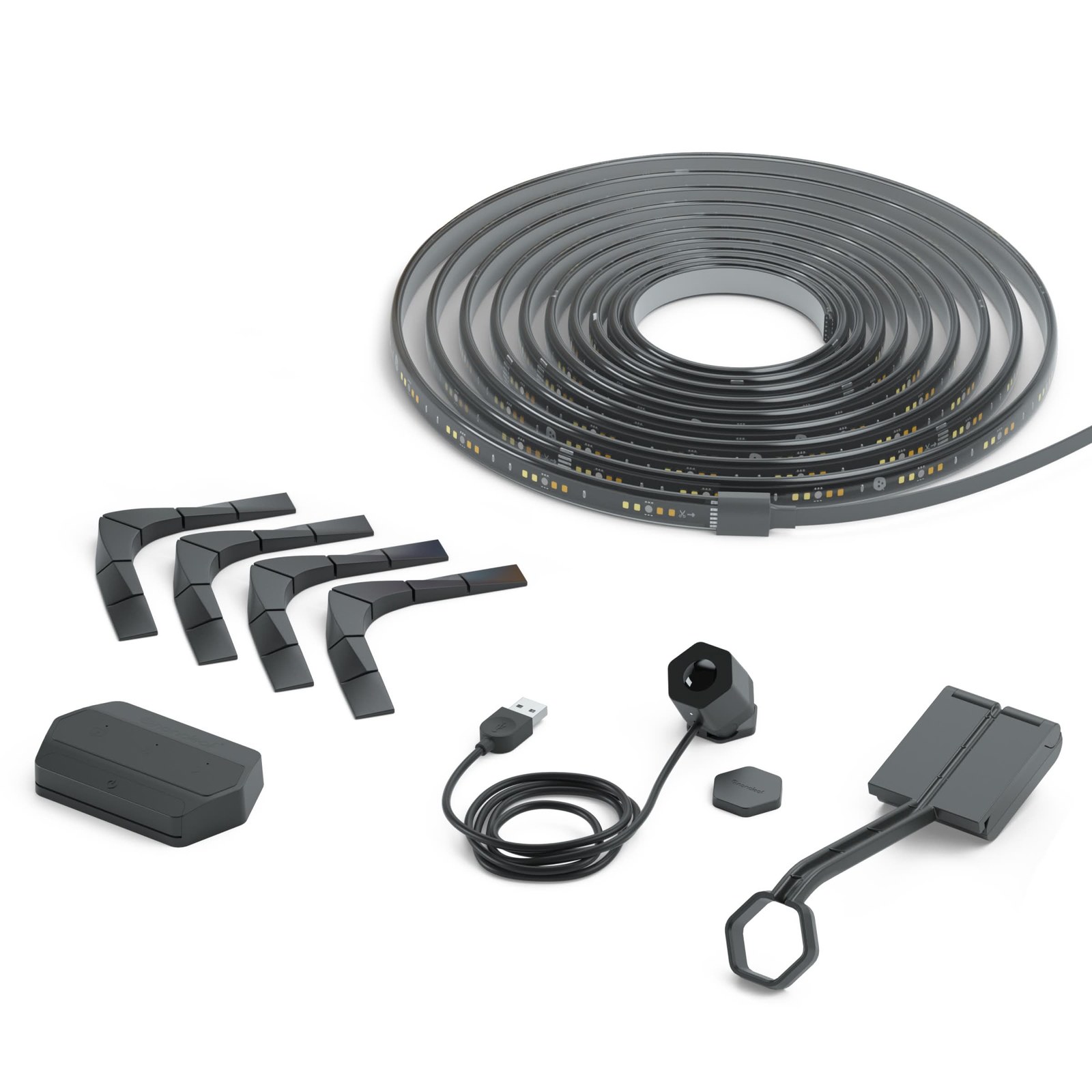

Nanoleaf 4D Screen Mirror + Lightstrip Kit, TVs up to 85" (5.2 m)

Extend your TV’s colors into the room with Nanoleaf 4D Screen Mirror, matching on-screen colors in real time for movies, gaming, and sports.

Why You'll Love It:

• Real-time screen matching: The included camera captures colors directly from your TV and mirrors them onto the lightstrip as they change, providing screen-specific lighting instead of the static colors and preset effects of standard TV backlights.
• 4 levels, your way: Choose from a subtle 1D ambient glow to full 4D screen matching, so you can adjust how closely the lighting follows your screen instead of being limited to one reactive setting.
• Flexible fit & installation: Available configurations support TVs up to 65" or 85", depending on region. Select 65" kits feature the upgraded V2 zigzag lightstrip for easier positioning behind your TV.

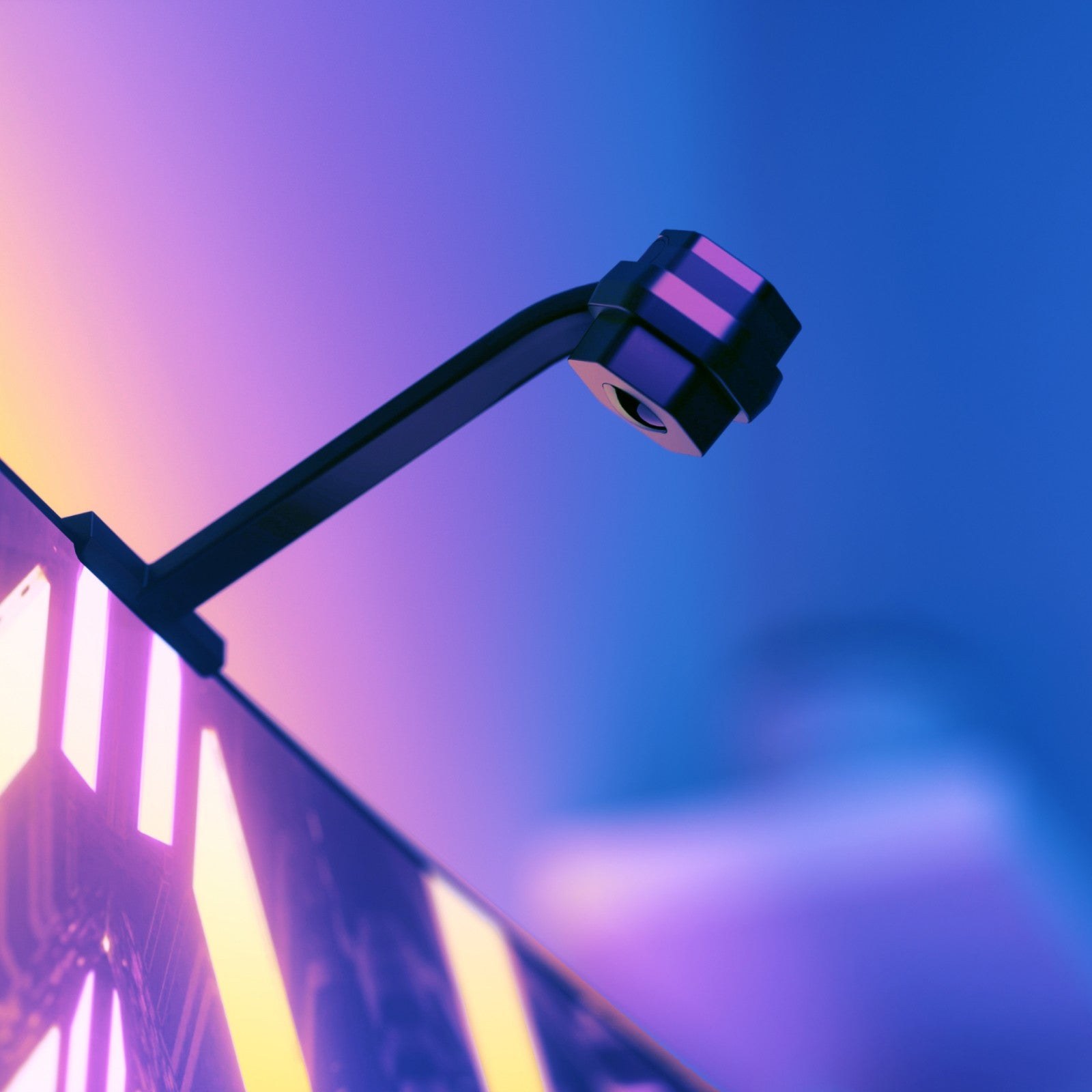

• Flexible camera placement & privacy: Mount the camera above or below your TV to suit your setup. When Screen Mirror isn't in use, the magnetic privacy cover physically blocks the camera lens.
• Expand screen mirroring across your room: Sync+ extends screen-matched effects beyond the TV backlight to compatible Nanoleaf lights, while Apple Home, Google Home, Alexa, SmartThings, and Homey add connected smart home control.

Mount the lightstrip behind your TV for responsive lighting while watching movies, gaming, or following the big game. Designed for home entertainment fans and gamers, 4D adds screen-matched lighting without requiring HDMI passthrough or additional video equipment.

Specifications

Part number	NF082K02-52LS
Configuration	Up to 85", Standard
Connectivity	Wi-Fi, Bluetooth
Wi-Fi Requirements	2.4 GHz network required (5 GHz not supported)
Bluetooth	Required for setup
Matter	Not Supported
App Control	Compatible Integrations & Nanoleaf App (IOS, Android, Windows, Mac)
Manual Controls	Power, Brightness, Scenes (Controller)
Voice Control	Yes (Via compatible smart home ecosystems)
Touch Controls	No
Dimmable	Yes
4 Modes	1D, 2D, 3D, 4D
Brightness (65" Kit)	1075 lm
Brightness (85" Kit)	1122 lm
Color Channels	Multicolor RGB
Resolution	30 LEDs per meter
Color Zones	10 zones per meter
Addressable	Yes
Trimmable	Yes
Controller Dimensions	3.67 × 2.25 × 0.67 in (9.3 × 5.7 × 1.7 cm)
Lightstrip Dimensions (65" Kit)	13.1 ft × 0.47 × 0.19 in (4 m × 1.2 × 0.5 cm)
Lightstrip Dimensions (85" Kit)	17.1 ft × 0.47 × 0.19 in (5.2 m × 1.2 × 0.5 cm)
Camera Dimensions	1.22 × 1.10 × 1.34 in (3.1 × 2.8 × 3.4 cm)
Mount Arm Length	7.13 in (18.1 cm)
Corner Bracket Dimensions	5.85 × 0.71 × 0.70 in (14.9 × 1.8 × 1.8 cm)
Camera Cap Dimensions	1.18 × 1.06 × 0.18 in (3.0 × 2.7 × 0.5 cm)
Camera Cable Length	4.9 ft (1.5 m)
Lightstrip Cable Length	3.3 ft (1 m)
Power Cable Length	4.9 ft (1.5 m)

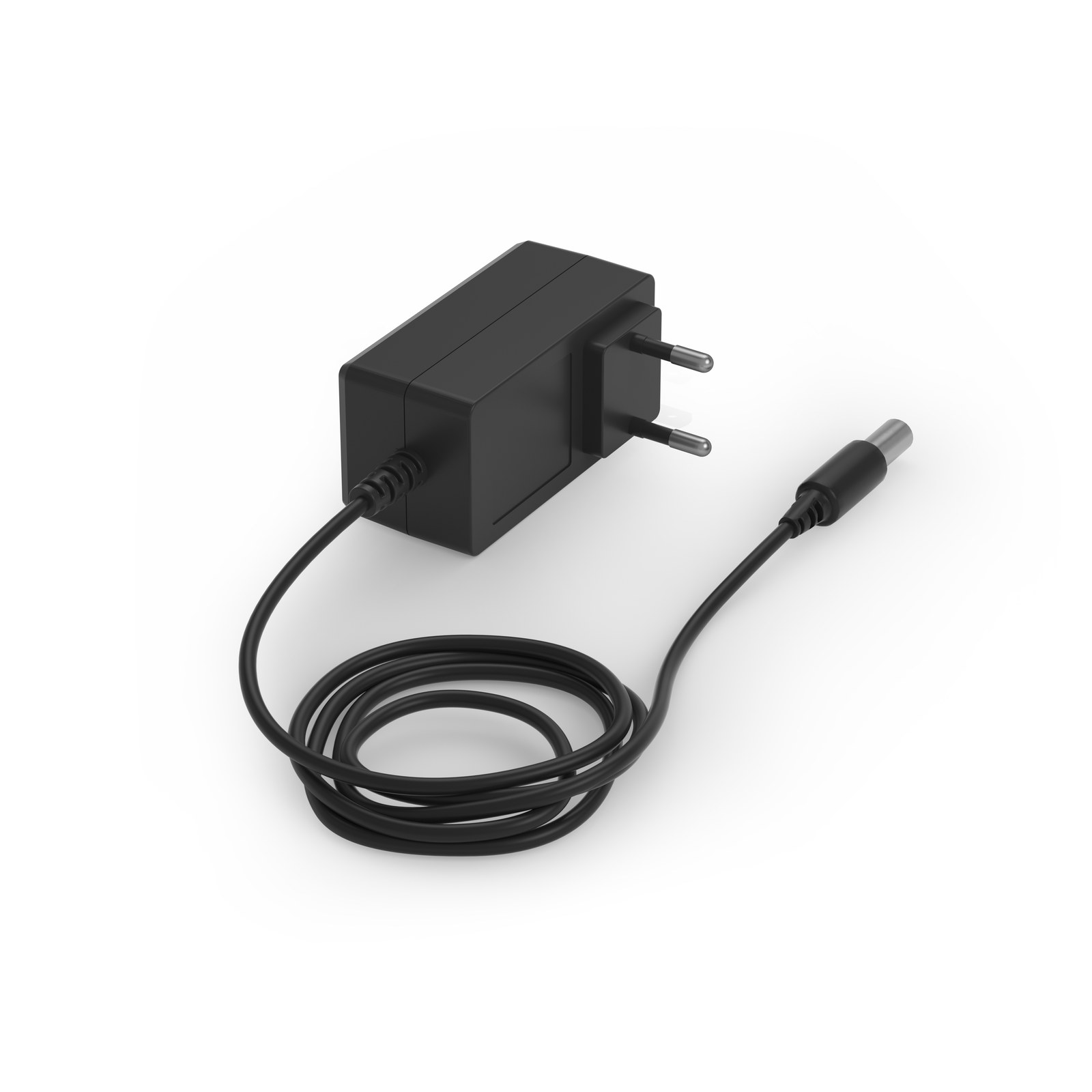

Maximum Consumption (Power Supply)	24W
Maximum Consumption (Lightstrip)	18W
Installation (Camera)	Use mount arm for above-the-TV placement (Alternative: Tape the bottom of the camera to a console.)
Installation (Controller)	Tape at the bottom, secure on back of TV or console.
Installation (Lightstrip)	Tape onto back of screen with adhesive backed lightstrip/corner brackets. (upgraded V2 is a zigzag lightstrip, no brackets needed).
Recommended Use	Indoor
IP Rating	IP20
Operating Temperature	32–104°F (0–40°C)
LED Lifetime	25,000 hours
Smart Home Ecosystems	Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Homey
Integrations	Razer Chroma, Overwolf
Screen Mirror	Yes
Music Sync	Yes
