Nanoleaf ShapesMini TrianglesExpansion

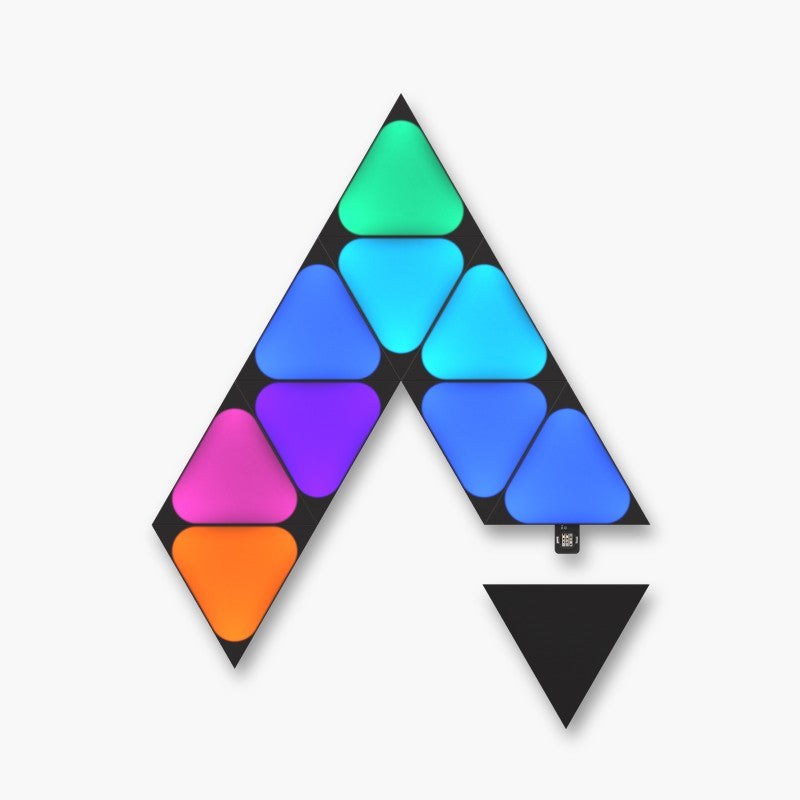

Nanoleaf Shapes Mini Triangles Expansion Pack, Black, 10 Panels

Grow your existing wall lighting design with a Nanoleaf Shapes Expansion Pack, adding compatible RGBW light panels to create larger, more detailed layouts with the Shapes setup you already own.

Why You'll Love It:

• Expand your existing setup: Add more panels to a compatible Nanoleaf Shapes installation without replacing your current Starter Kit, controller, or lighting layout.
• Mix & match Shapes: Combine Hexagons, Triangles, and Mini Triangles within the same connected design for more flexibility than single-format light panel systems.
• Keep the same interactive features: Added panels become part of your existing Shapes setup with touch control, 16M+ colors, tunable whites from 1200K to 6500K, Music Sync, and Screen Mirror.
• Build a larger design: Rearrange or extend your layout as your space changes, with support for up to 500 Shapes panels on one controller.
• Easy to add: Connect panels using compatible linkers and mount indoors with the included mounting plates and adhesive tape for a seamless addition to your existing design.

Add Shapes Expansion Packs when you want to extend a wall design, fill a larger space, or mix new panel shapes into your existing installation.

Requires an existing Nanoleaf Shapes setup with a controller and sufficient power supply capacity. Expansion Packs do not replace the Starter Kit required to begin a new Shapes installation.

Specifications

Part number	NL48-1101TW-10PK
Configuration	Expansion Pack, Black, Mini Triangles, 10 Panels
Connectivity	Requires a 2.4 GHz Wi-Fi network (5 GHz not supported)
Bluetooth Required	Yes
App Control	Nanoleaf App (IOS, Android, Windows, Mac)
Manual Control	Controller (Power, Brightness, Dim, Scenes)
Works With	Major Smart Home Ecosystems
Voice Control	Yes (Using compatible smart home ecosystems)
Dimmable	Yes (Via Nanoleaf App, Voice, and Controller)
Color Temperature	1200K–6500K
Color Channels	RGBW
Color Capability	16 Million+
Color Rendering Index (CRI)	80
Hexagons (White)	100 lm
Hexagons (Black)	10 lm
Triangles (White)	80 lm
Triangles (Black)	8 lm
Mini Triangles	20 lm (White & Black)
Available Panel Finish	White and Black
Panel Height (Hexagons & Triangles)	20 cm (7.75 in)
Panel Height (Mini Triangles)	10 cm (3.8 in)
Panel Width (Hexagons & Triangles)	23 cm (9 in)
Panel Width (Mini Triangles)	11 cm (4.5 in)
Edge Thickness (All Shapes)	0.6 cm (0.24 in)
Mounted Thickness (All Shapes)	1 cm (0.39 in)
Weight Per Panel (Hexagons)	208 g (0.46 lb)
Weight Per Panel (Triangles)	141 g (0.31 lb)
Weight Per Panel (Mini Triangles)	40 g (0.09 lb)
Power Supply Cable Length	2.5 m (8.2 ft)
Maximum Power Supply Output	42W
Maximum Energy Consumption (Per Panel)	< 42W
Maximum Panels Per Power Supply (Hexagons)	21 (42W PSU)
Maximum Panels Per Power Supply (Triangles)	28 (42W PSU)
Maximum Panels Per Controller	500 (Limited Scenes support for larger installations)
Recommended Use	Indoor
Wall Installation	Mount with included mounting plates/adhesive tape (Optional screw mounting kit sold separately)
Panel Installation	Connect panels using linkers (Controller and power supply also connect via linkers)
IP Rating	IP20
LED Lifetime	25,000 hours
Smart Home Ecosystems	Apple Home, Google Home, Amazon Alexa, Samsung SmartThings
Integrations	Razer Chroma, Overwolf, IFTTT, Homey
Screen Mirror	Yes
Music Sync	Yes
