Nanoleaf LinesExpansion Pack,White,

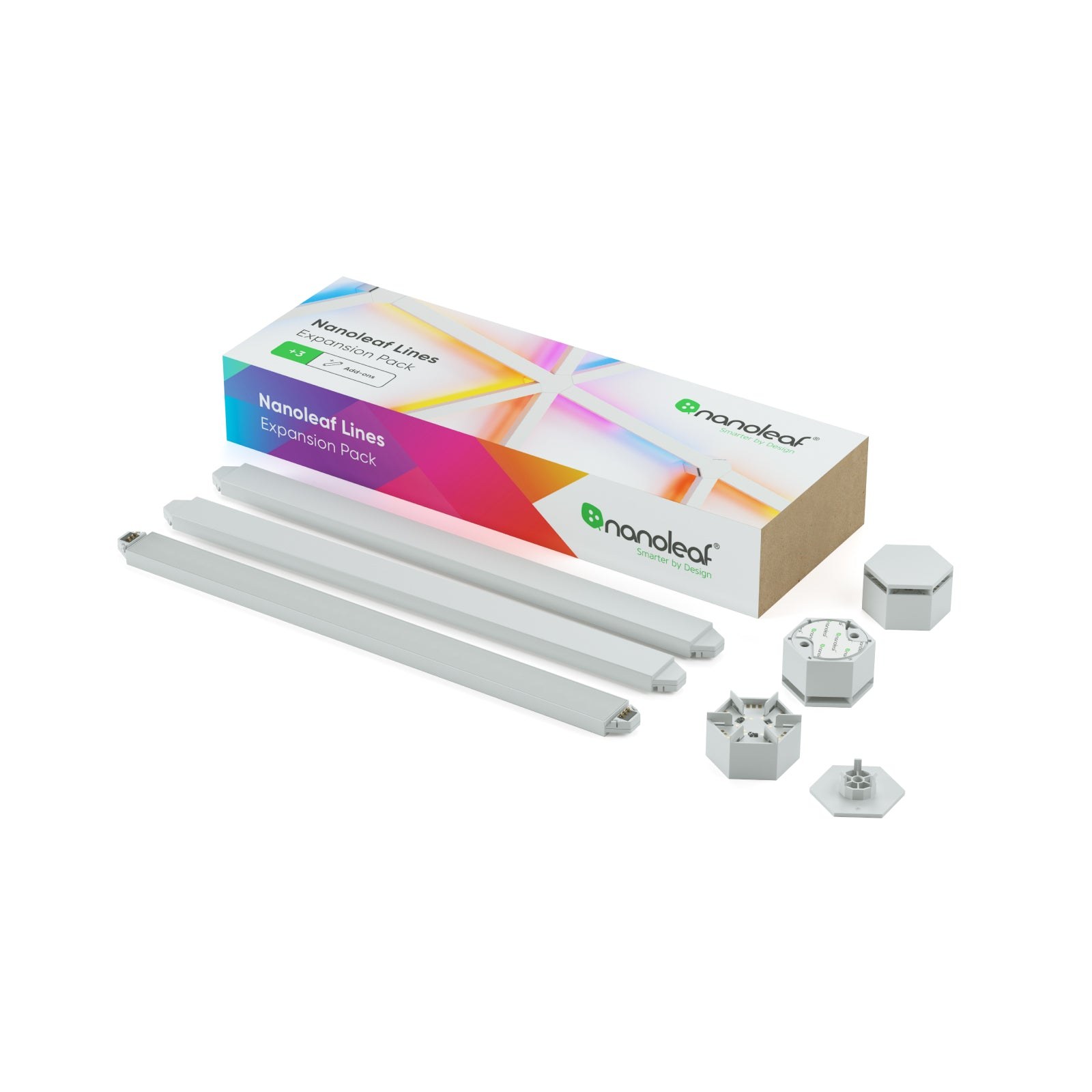

Nanoleaf Lines Expansion Pack, White, 3 Lines

Make more of your design with a Nanoleaf Lines Expansion Pack, adding backlit RGB light bars to your existing Lines setup for larger, more detailed geometric lighting layouts.

Why You'll Love It:

• Expand your existing setup: Add more compatible light bars without replacing your current Lines Starter Kit, controller, or lighting design.
• Build a larger layout: Extend your geometric design across more of your wall or reconfigure your existing layout as your space and style change.
• Keep the backlit glow: Added Lines cast the same diffused RGB illumination onto the wall, expanding your lighting without exposed, direct-facing LEDs.
• Extend your effects: Added light bars become part of your existing Scenes, Music Sync, Screen Mirror, Sync+, Razer Chroma, and Overwolf lighting experience.
• Easy to add: Connect compatible Expansion Pack light bars to your existing Lines setup and mount them using the included installation hardware.

Add a Lines Expansion Pack when you want to extend a gaming or streaming backdrop, fill a larger wall, or create a new layout with the system you already own.

Requires an existing compatible Nanoleaf Lines setup with a processor and sufficient power supply capacity. Not all Lines 60° and Lines 90° components are not interchangeable.

Specifications

Part number	NL59-E-0001LW-3PK
Configuration	Expansion Packs, White, 60º Line Bar, 3 Lines
Connectivity	Wi-Fi, Bluetooth
Wi-Fi Requirements	2.4 GHz network required (5 GHz not supported)
Bluetooth	Required for setup
Matter	Not Supported
App Control	Compatible Integrations & Nanoleaf App (IOS, Android, Windows, Mac)
Manual Controls	Power, Brightness, Scenes (Controller)
Voice Control	Yes (Via compatible smart home ecosystems)
Touch Controls	No
Dimmable	Yes
Brightness	20 lm per Line
Color Temperature	1200K–6500K
Color Channels	RGBW
Color Capability	16 Million+ Colors
Color Zones	2 per Line
Color Rendering Index (CRI)	>80
Maximum Power Supply Output	42W
Maximum Energy Consumption	2W (Per Line)
Maximum Lines	18 (Per 42W power supply)
Line Dimensions	11 × 0.78 × 0.31 in (27.9 × 2.0 × 0.8 cm)
Line Weight	0.08 lb (39 g)
Connector Dimensions	1.57 × 1.36 × 0.85 in (4.0 × 3.5 × 2.2 cm)
Connector Weight	0.03 lb (15 g)
Covers	Black or Pink Skins available (In bundles and sold separately)
Installation	Use double-sided tape included (Optional screw mounting, screws/anchors not included)
Accessory Installation	Covers/Skins snap onto line bar
Recommended Use	Indoor
IP Rating	IP20
LED Lifetime	25,000 hours
Smart Home Ecosystems	Apple Home, Google Home, Amazon Alexa, Samsung SmartThings, Homey
Integrations	Razer Chroma, Overwolf, Corsair iCUE
Screen Mirror	Yes
Music Sync	Yes
