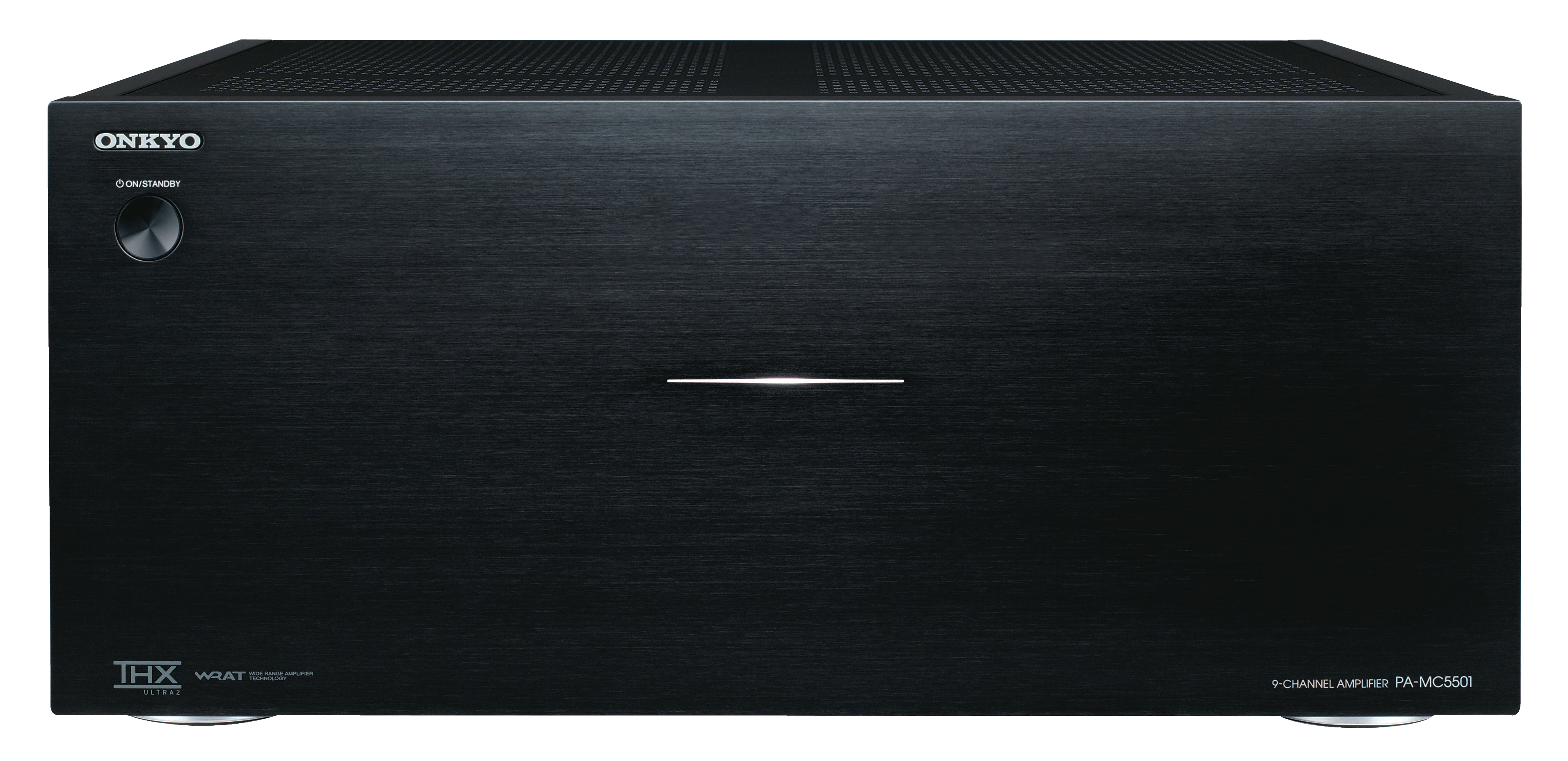

Onkyo PA-MC55019-ChannelAmplifier

The Onkyo PA-MC5501 is a premium 9-channel amplifier delivering superior dynamic response, outstanding signal purity, and exceptional audio clarity. THX® Ultra2™ certified and engineered with audiophile-grade components, it offers powerful, distortion-free performance for the ultimate home theatre experience.

Key Features

• THX® Ultra2™ Certified for premium surround sound
• WRAT (Wide Range Amplifier Technology) minimises interference and stabilises voltage
• All-analog circuitry unaffected by digital noise
• Audiophile-grade components including gold-plated speaker posts and XLR inputs
• Discrete output stage circuitry to inhibit audio interference
• Bi-amping capability with nine channels for flexible setups

Specifications

Amplifier Section

• Power Output:
  • Front L/R: 220 W/Ch (6 Ω, 1 kHz, 1%, 1 channel driven, IEC)
  • Center: 220 W (6 Ω, 1 kHz, 1%, 1 channel driven, IEC)
  • Surround L/R: 220 W/Ch (6 Ω, 1 kHz, 1%, 1 channel driven, IEC)
  • Surround Back L/R: 220 W/Ch (6 Ω, 1 kHz, 1%, 1 channel driven, IEC)
  • Front Wide L/R or Front High L/R: 220 W/Ch (6 Ω, 1 kHz, 1%, 1 channel driven, IEC)
• Dynamic Power: 400 W (3 Ω, Front), 300 W (4 Ω, Front), 180 W (8 Ω, Front)
• THD (Total Harmonic Distortion): 0.05% (20 Hz–20 kHz, Rated power)
• Damping Factor: 60 (Front, 1 kHz, 8 Ω)
• Input Sensitivity and Impedance: 1 V/47 kΩ (Balanced), 2 V/22 kΩ (Unbalanced)
• Frequency Response: 5 Hz–100 kHz (+1 dB, -3 dB)
• Signal-to-Noise Ratio: 110 dB (Unbalanced, IHF-A)
• Speaker Impedance: 4 Ω–16 Ω or 6 Ω–16 Ω

General

• Power Supply: AC 220–240 V~, 50/60 Hz
• Power Consumption: 1,050 W
• Standby Power Consumption: 0.3 W
• Dimensions (W x H x D): 435 x 198.5 x 446.5 mm
• Weight: 22.2 kg

Carton

• Dimensions (W x H x D): 610 x 337 x 592 mm
• Weight: 26.0 kg

What's in the Box

• Power cord (plug type depends on region)
• Mono mini-plug cable for 12 V trigger terminals
• Speaker cable labels
• Instruction manual
