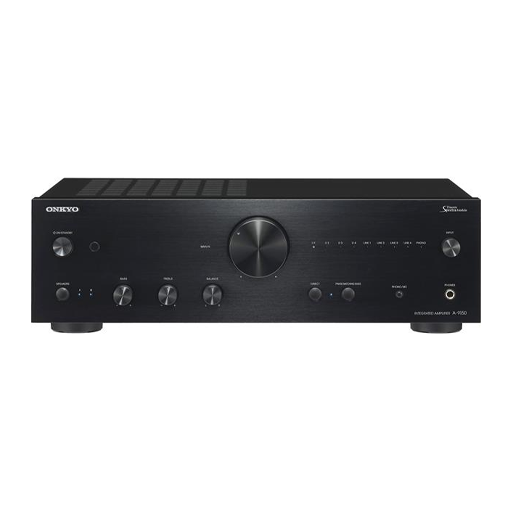

Onkyo A-9150IntegratedAmplifier

Onkyo A-9150 Integrated Amplifier

Discover exceptional sound quality with the Onkyo A-9150 Integrated Stereo Amplifier, offering superb dynamics, precise transient response, and lifelike soundstaging for both analog and digital music sources.

Key Features

• Nuanced musicality with Discrete SpectraModule™ technology
• Dedicated MM/MC phono circuit board with custom discrete head amplifier
• High-current transformer and custom audio-grade capacitors for a robust power supply
• DIDRC filter and premium AKM 768 kHz/32-bit DAC (AK4452) for natural sound reproduction
• Solid build quality featuring aluminium front panel, rigid steel chassis, and high-grade gold-plated terminals
• 60 W per channel (4 Ω, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, IEC)
• Symmetrical left/right channel layout minimises stereo playback errors
• Front-panel A/B speaker drive selector and direct mode for faithful source reproduction
• Available in black or silver finish

Specifications

• Power Output: 60 W per channel (4 Ω, 20 Hz–20 kHz, 0.08% THD, 2 channels driven, IEC)
• Digital Inputs: 2 optical (192 kHz/24-bit capable), 2 coaxial (192 kHz/24-bit capable)
• Analog Inputs: 4 gold-plated RCA audio inputs (rear), gold-plated phono input (MM/MC)
• Speaker Outputs: 2 pairs of gold-plated speaker posts (A+B)
• Headphone Jack: 6.3 mm
• Remote Control: RI (Remote Interactive) input with full-sized, full-function remote
• Power Consumption: 0.2 W on standby

Additional Features

• Tone controls for bass, treble, and balance adjustment
• Optimum gain volume control circuitry to prevent distortion at low volumes
• Large extruded aluminium heat sink for efficient cooling
• Stable isolator feet to minimise vibration interference
• Isolated processing, pre-amplification, and power amplification circuitry to reduce electrical interference
