Sonos In-WallSpeakers bySonance

Sonos In-Wall Speakers by Sonance (Pair)

Passive 6.5" in-wall speakers designed and tuned by Sonos in collaboration with Sonance. Power them with Sonos Amp for optimised tuning, overdrive protection and Trueplay room tuning, and enjoy bold, focused sound for TV and music. Low-profile, paintable magnetic grilles let them blend into any wall. A single Sonos Amp can power up to three pairs.

Key features

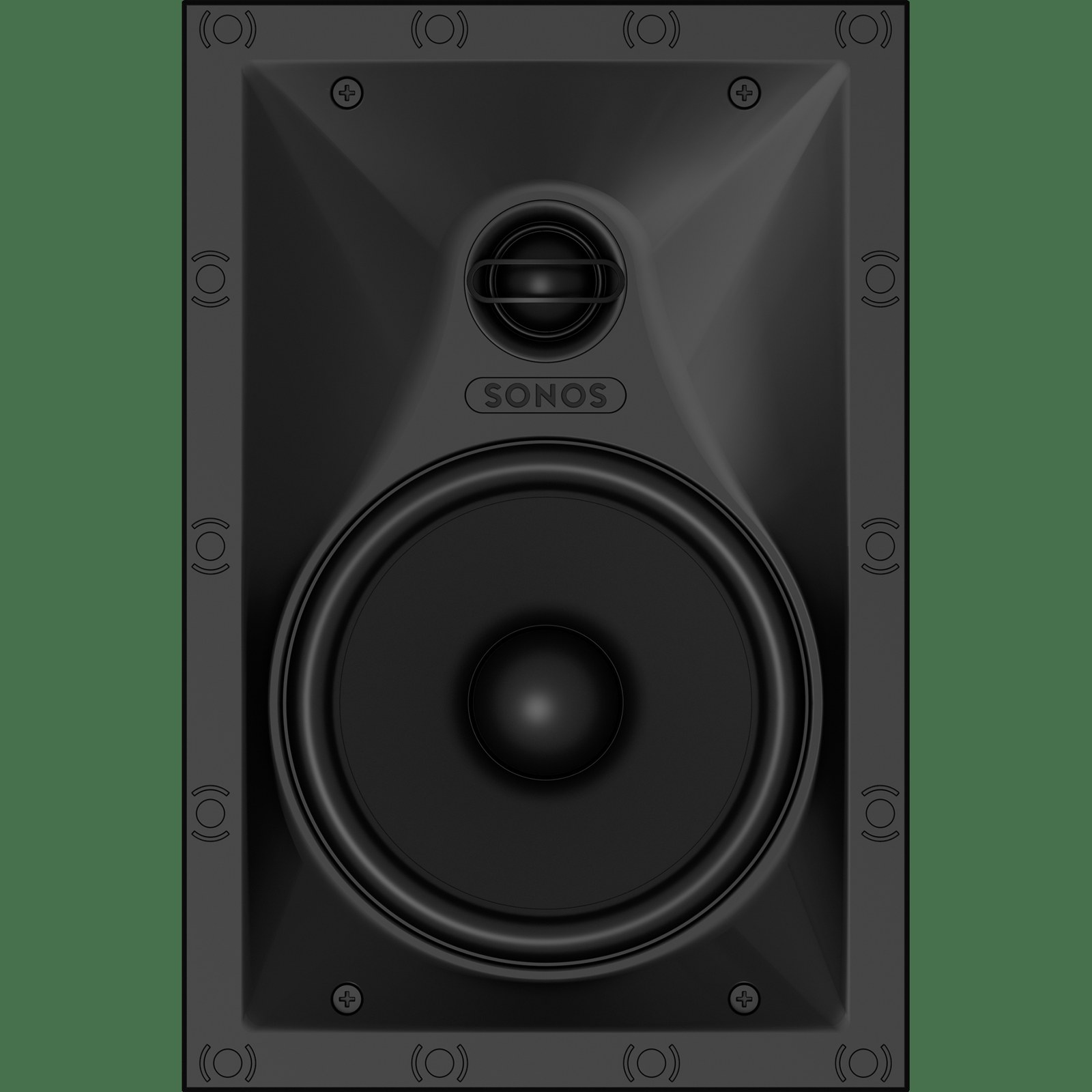

• Shares the 6.5" woofer and 1" tweeter of the Sonos 6" In-Ceiling speaker
• Custom DSP and limiter when used with Sonos Amp
• Trueplay room tuning (Sonos Amp and a supported iOS device required)

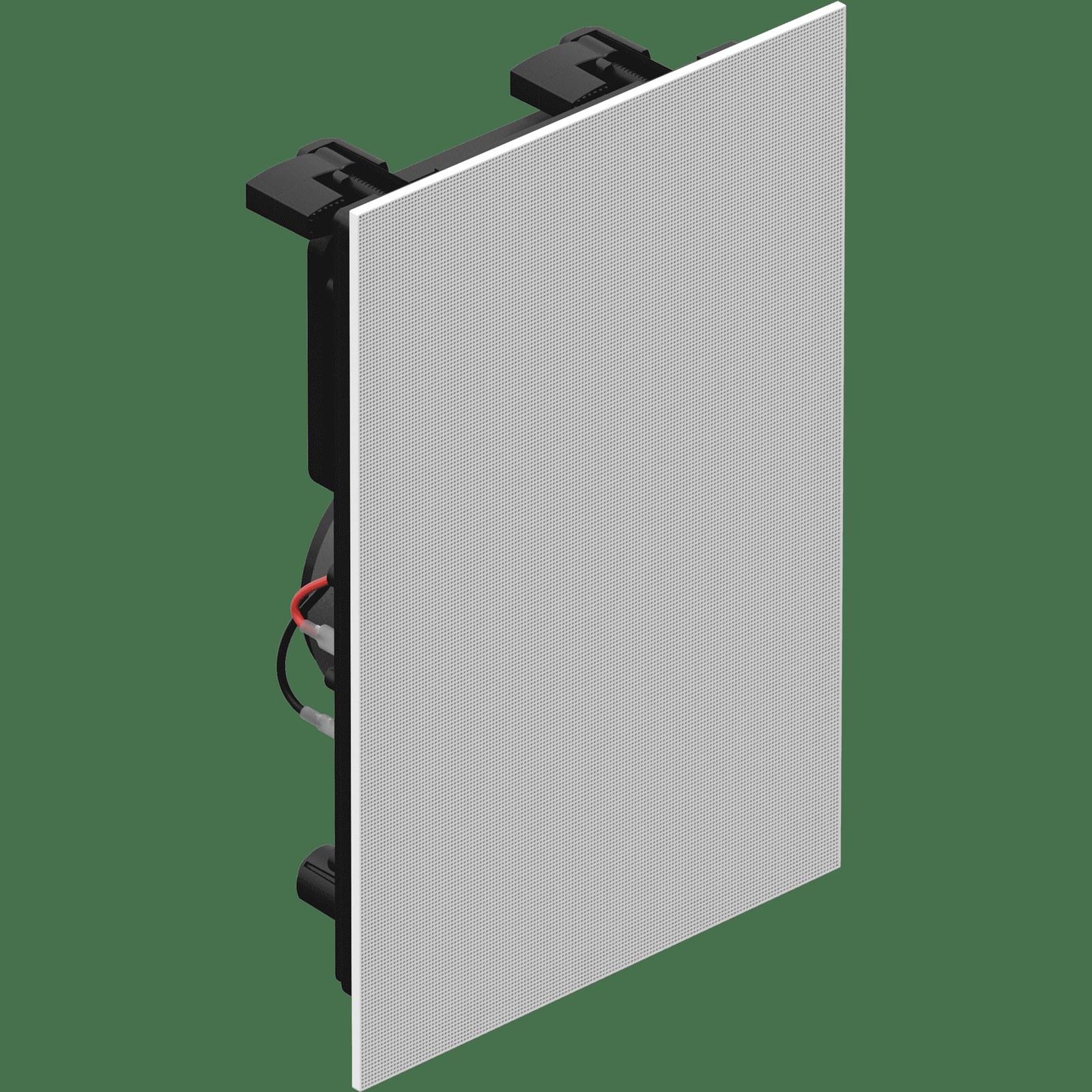

• Paintable white magnetic grilles with a subtle micro-perforation pattern

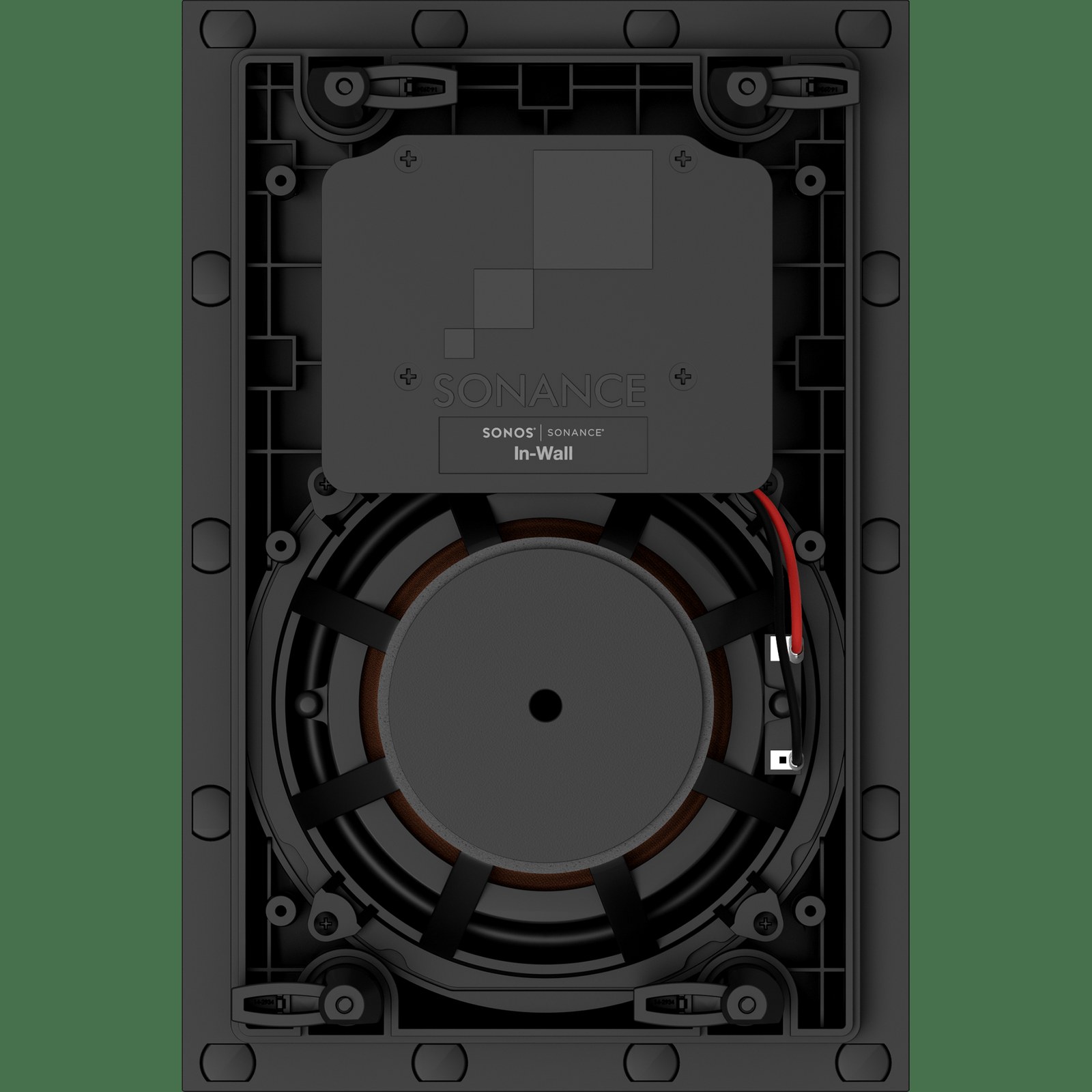

• Roto-Lock mounting for quick installation

Specifications

Model	Sonos In-Wall (INWLLWW1)
Woofer	6.5" (165 mm) polypropylene cone, rubber surround
Tweeter	1" (25 mm) polyurethane dome, ferrofluid-cooled, acoustic back chamber
Frequency range (no DSP)	46 Hz - 20 kHz (±3 dB)
Frequency range (with Sonos DSP)	36 Hz - 20 kHz (±3 dB)
Nominal impedance	8 ohms
Power handling	130 W program; 60 W continuous
Sensitivity	85 dB SPL (2.83 V/1 m)
Rated maximum SPL	103 dB @ 1 m
Coverage angle	90° horizontal x 80° vertical
Connectors	Gold-plated spring terminals
Dimensions (W x H x D)	197 x 296 x 90 mm
Cutout (W x H)	176 x 273 mm
Net weight	2.1 kg each
In the box	2 speakers, grilles, cutout template
Sold as	Pair
