SHUREULXD2/N8SB-G51Handheld

The Shure ULXD2/N8SB-G51 is a ULX-D digital handheld transmitter fitted with the Nexadyne 8/S supercardioid dynamic wireless capsule (black, RPW204) on frequency band G51 (470-534 MHz). It is not a KSM11, SM58 or Beta capsule configuration.

Key Features

• ULXD2 handheld digital transmitter; machined aluminium housing
• Nexadyne 8/S (NXN8/S) supercardioid dynamic capsule with Revonic dual-engine technology - wireless black capsule RPW204
• Band G51: 470-534 MHz; selectable RF power 1 / 10 / 20 mW (region dependent)
• Shure SB900-series Li-Ion or AA batteries; >11 hours typical with SB900C @ 10 mW
• Mic offset 0 to 21 dB in 3 dB steps; integrated single-band helical antenna
• Works with ULX-D receivers (system latency <2.9 ms; RF sensitivity −98 dBm at 10−5 BER)

Specifications

Capsule figures from the official Shure Nexadyne Specification Sheet (NXN8/S / RPW204). Transmitter and G51 band figures from the Shure ULX-D User Guide (en-US). System rows are ULX-D series specifications from the same guide.

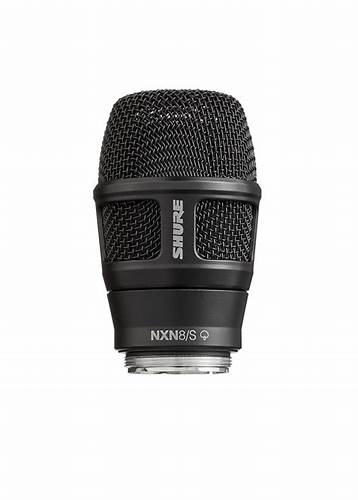

Nexadyne 8/S capsule (RPW204 black)

Source: Shure Nexadyne Specification Sheet - NXN8/S / RPW204 block.

Capsule / model	Nexadyne 8/S supercardioid; RPW204 (black wireless capsule)
Type	Dynamic (moving coil)
Polar pattern	Supercardioid
Frequency response	50 to 20,000 Hz
Output impedance	450 Ω
Sensitivity (open circuit, @ 1 kHz, typical)	−51.0 dBV/Pa (2.81 mV); 1 Pa = 94 dB SPL
Weight (XLR NXN8/S body, for reference)	294 g (10.3 oz)
Housing (XLR model)	Die-cast aluminium with black paint
Compatible transmitters	Shure handheld transmitters with interchangeable capsules (ULXD2)

ULXD2 handheld transmitter (G51)

Source: Shure ULX-D User Guide - ULXD2 Specifications; Frequency Range table row G51 470 to 534 MHz, RF power 1/10/20 mW.

Transmitter	ULXD2
Frequency band	G51: 470-534 MHz
RF output power	1 mW, 10 mW, 20 mW (varies by region)
Mic offset range	0 to 21 dB (in 3 dB steps)
Battery type	Shure SB900-series rechargeable Li-Ion or LR6 AA 1.5 V
Battery runtime @ 10 mW	SB900C >11 hours; alkaline 9 hours
Dimensions (other frequency bands)	256 × 51 mm (L × Dia.)
Weight (other frequency bands, without batteries)	340 g (12.0 oz)
Housing	Machined aluminium
Antenna type	Integrated single-band helical
Occupied bandwidth	<200 kHz
Modulation type	Shure proprietary digital

ULX-D system (reference)

Source: Shure ULX-D User Guide - ULX-D System Specifications (applies when used with a compatible ULX-D receiver).

RF carrier frequency range (system)	470-932 MHz, varies by region
Working range	100 m (330 ft) typical (environment dependent)
RF tuning step size	25 kHz, varies by region
Image rejection	>70 dB, typical
RF sensitivity	−98 dBm at 10−5 BER
Latency	<2.9 ms
Audio dynamic range (XLR analog)	>120 dB (A-weighted, typical, system gain @ +10)
Total harmonic distortion	<0.1% (−12 dBFS input, system gain @ +10)
Operating temperature range	−18 °C to 50 °C

Datasheets

Public manufacturer documents (link only - this does not add a downloads module):

• Shure ULXD2/N8S product page
• Shure ULX-D User Guide (en-US, PDF)
• Shure Nexadyne NXN8C / NXN8S Specification Sheet (PDF)
