Goldring 1006Cartridge

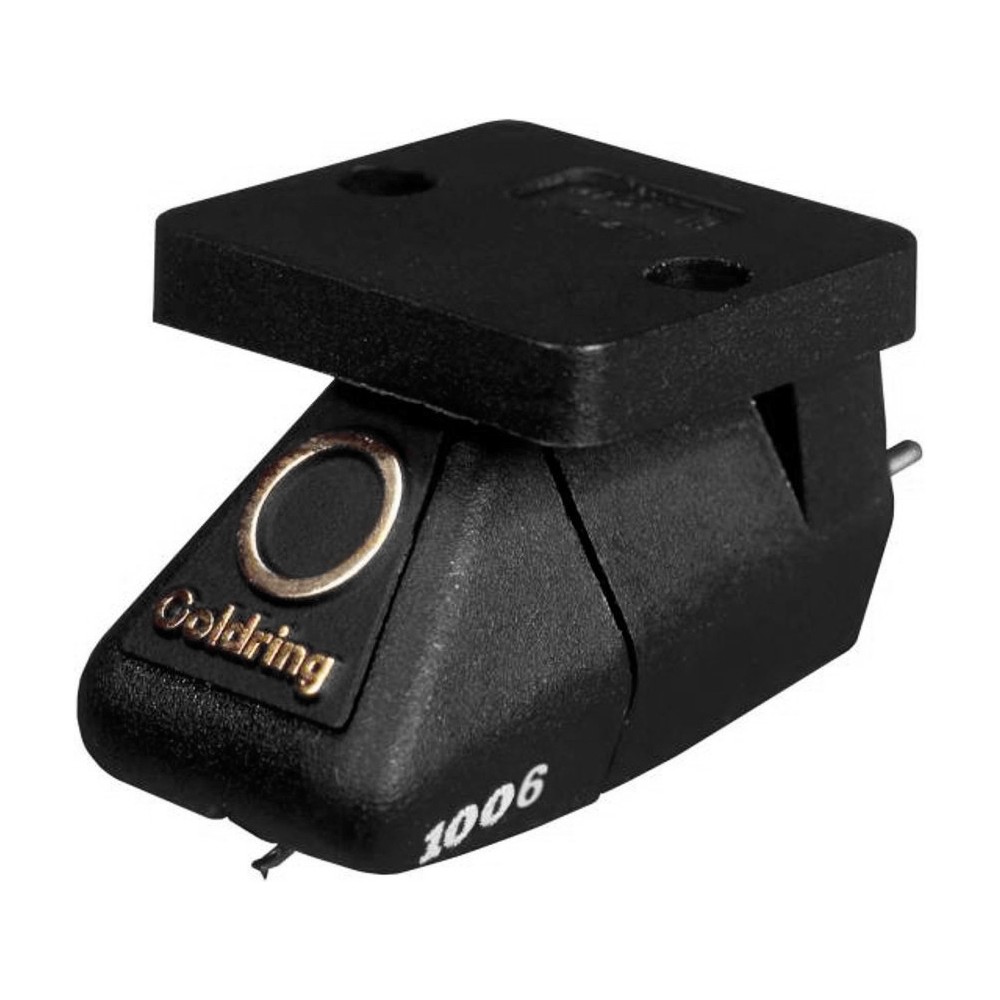

Goldring 1006 Cartridge

The Goldring 1006 cartridge delivers premium audio clarity and sensitivity, ideal for vinyl enthusiasts seeking exceptional sound quality at an affordable price. Enhance your turntable system with precise tracking and rich detail.

Key Features

• Elliptical stylus tip for improved high-frequency clarity
• Powerful magnet ensuring high sensitivity
• Replaceable stylus for easy maintenance (1006 - D06 stylus)
• Lightweight design at 6.3g for optimal tracking
• Wide frequency response from 20Hz to 20kHz ±3dB

Specifications

• Frequency Response: 20Hz - 20kHz ±3dB
• Channel Balance: 2dB @ 1kHz
• Channel Separation: 25dB @ 1kHz
• Sensitivity: 6.5mV ±1.5dB, 1kHz @ 5 cm/sec
• Static Compliance: 24mm/N lateral, 16mm/N vertical
• Equivalent Tip Mass: 0.45 mg
• Vertical Tracking Angle: 24°
• Stylus Radius: Elliptical
• Stylus Type: Replaceable
• Load Resistance: 47,000 Ohm
• Load Capacitance: 150-200pF
• Internal Inductance: 570 mH
• Internal Resistance: 660 Ohm
• Cartridge Weight: 6.3g
• Fixing Centre: 0.5" (12.7mm)
• Playing Weight: 1.5-2.0g (1.7g nominal)
