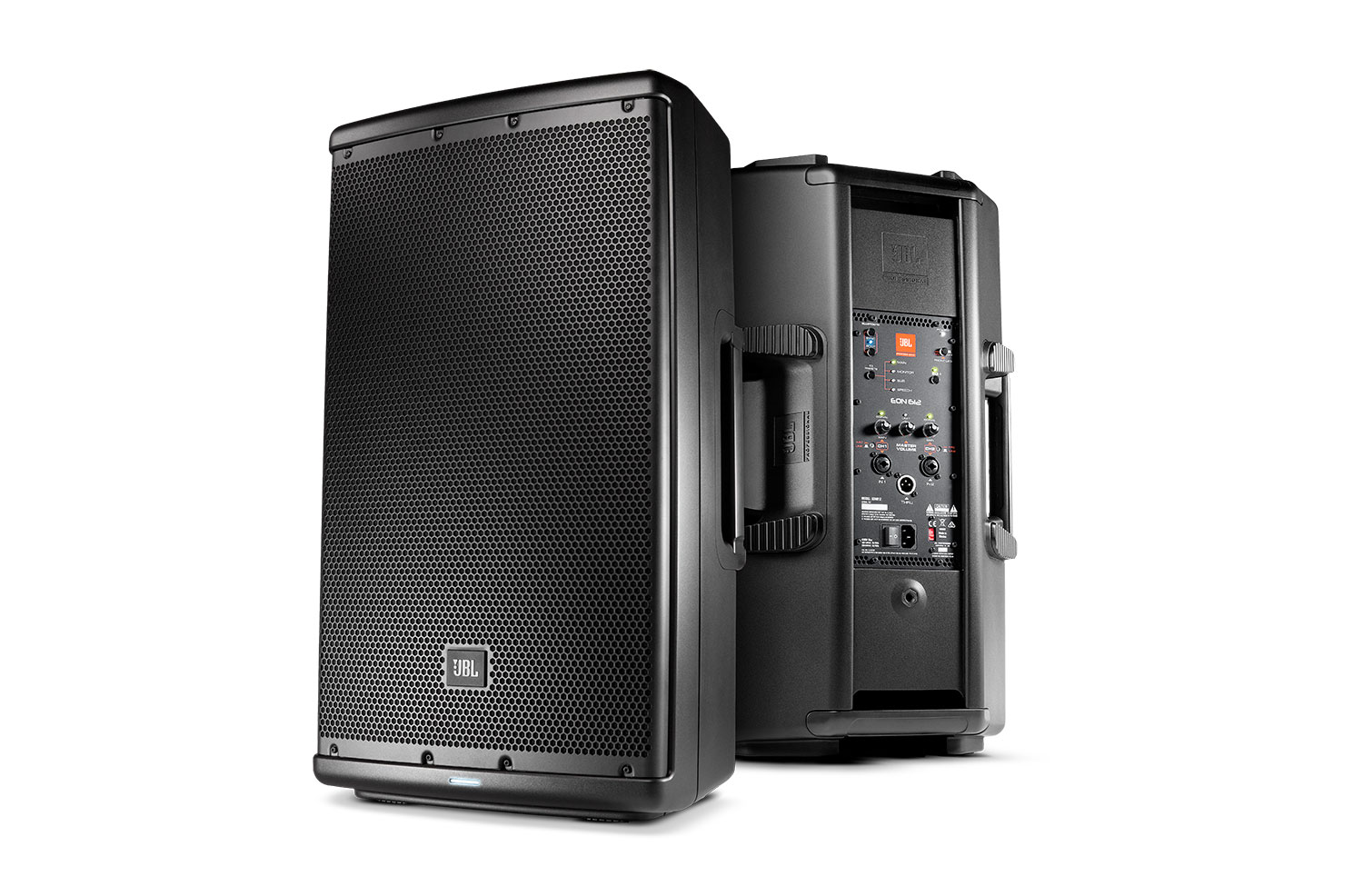

JBL EON 612-16 Two-Way Multipurpose Self-Powered Sound Reinforcement Speaker
The JBL EON 612-16 is a powerful 12" two-way self-powered speaker designed for versatile sound reinforcement. Featuring advanced JBL Waveguide technology and Bluetooth-enabled DSP control, it delivers professional-grade audio quality in a portable, rugged package ideal for musicians, DJs, and event sound providers.
Key Features
- Purpose-built design for superior sound performance
- JBL Waveguide technology for precise audio dispersion
- Bluetooth integration for wireless remote control of onboard DSP EQ parameters
- High-efficiency Class D amplifier delivering up to 1000W peak power
- Portable and rugged cabinet suitable for various applications
Specifications
System Type: Self-powered 12", two-way, bass-reflex
Maximum SPL Output: 126 dB
Frequency Range (-10 dB): 48 Hz - 20 kHz
Frequency Response (±3 dB): 57 Hz - 20 kHz
Coverage Pattern: 100° x 60°
Amplifier Design: Class D
Power Rating: 1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF)
Dimensions (H x W x D): 664 x 380 x 316 mm (26.14 x 14.96 x 12.44 in)
Net Weight: 14.96 kg (33 lbs)
( Specifications )
| Frequency Range | (-10dB) 48 Hz - 20 kHz |
| Frequency Response | (+/- 3dB) 57 Hz - 20 kHz |
| Max SPL Output | 126 dB |
| Power Handling (RMS): | 1000W Peak (700W LF + 300W HF), 500W Continuous (350W LF + 150W HF) |
