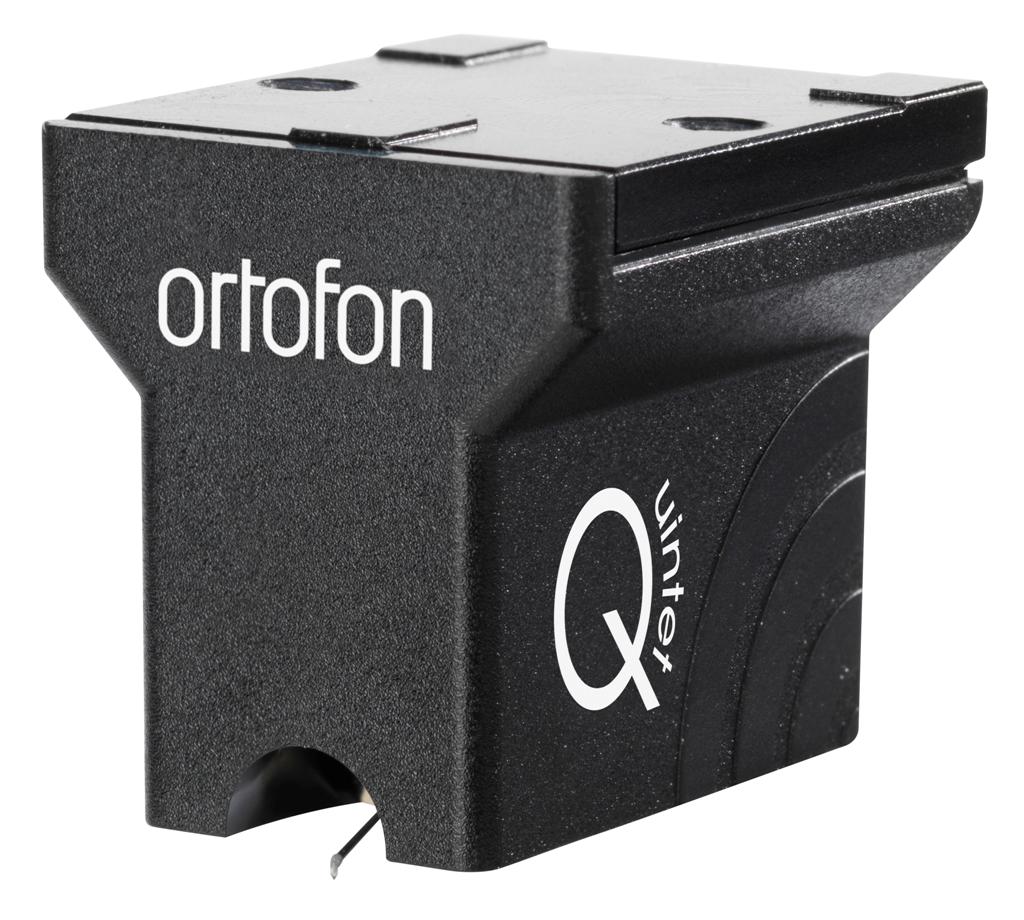

Ortofon MC QuintetBlack Moving CoilCartridge

Discover exceptional sound clarity and precision with the Ortofon MC Quintet Black Moving Coil Cartridge, featuring a Nude Shibata diamond stylus and a high-performance Boron cantilever for accurate audio reproduction across all music genres.

Key Features

• Nude Shibata diamond stylus for wide groove contact and detailed sound
• High-performance Boron cantilever for precise tracking
• Accurate sound reproduction across all musical genres
• Low output voltage of 0.3 mV at 1000 Hz, 5 cm/sec
• Lightweight cartridge body made of ABS and aluminium (9 g)
• High channel separation and excellent frequency response

Specifications

• Output voltage at 1000 Hz, 5 cm/sec: 0.3 mV
• Channel balance at 1 kHz: < 1.0 dB
• Channel separation at 1 kHz: > 23 dB
• Channel separation at 15 kHz: > 15 dB
• Frequency range at -3 dB: 20 - 25,000 Hz
• Frequency response 20-20,000 Hz: ±1.5 dB
• Tracking ability at 315 Hz (recommended tracking force): 80 µm
• Compliance, dynamic, lateral: 15 µm/mN
• Stylus type: Nude Shibata on Boron cantilever
• Stylus tip radius: r/R 6/50 µm
• Tracking force range: 2.1 - 2.5 g (21 - 25 mN)
• Recommended tracking force: 2.3 g (23 mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 5 Ohm
• Recommended load impedance: > 20 Ohm
• Cartridge body material: ABS/aluminium
• Coil wire material: Aucurum
• Cartridge colour: Black
• Cartridge weight: 9 g
