( 01 / 01 )Pro-JectRecord Box E

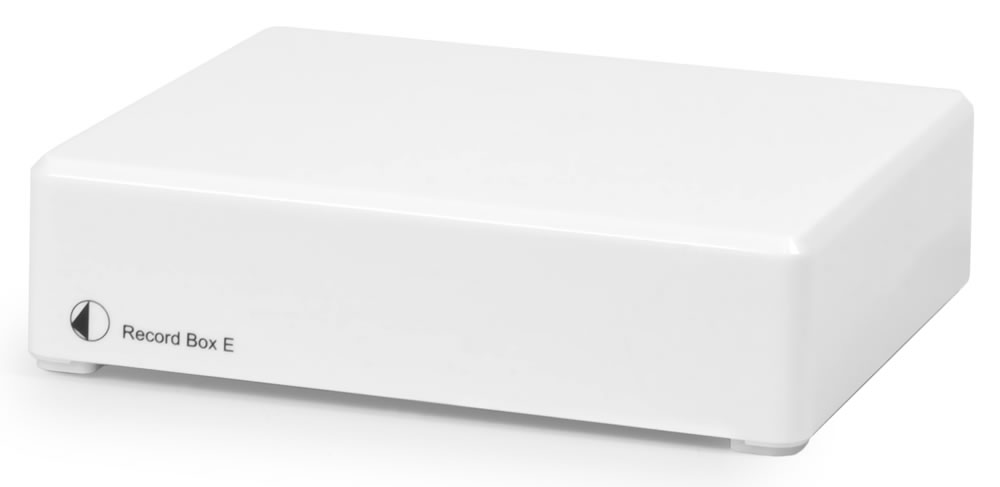

Pro-Ject RecordBox E PhonoPreamplifier
Contact for availability
Sold out
12 monthly paymentsfrom R 208 / month
Illustrative estimate. Final payment terms are confirmed at checkout.Delivered byMonday, 14 September
Estimated from today, excluding weekends.Pro-Ject Record Box E - Phono Preamplifier
The Pro-Ject Record Box E is a premium phono preamplifier designed for audiophiles seeking pure vinyl sound and easy digitisation. Compatible with MM and MC cartridges, it connects effortlessly to your computer via USB for seamless vinyl-to-digital conversion.
Key Features
- Amplification and RIAA equalisation for MM and MC cartridges
- Inspired by Dr. Sykora's design principles
- Digitises vinyl records directly to USB using compatible recording software
- Automatic device recognition with no additional drivers required
- Compatible with Windows®, Mac OS®, and Linux operating systems
- Low-noise SMD circuitry with advanced components
- Internal metal shielding to prevent interference
- Compact design allows placement close to the turntable
- Gold-plated RCA input and output sockets for optimal signal quality
- Includes outboard 18V/500mA DC power supply suitable for local mains
- Available in black or white casing
Specifications
| Specification | Details |
|---|---|
| Input Capacitance / Input Impedance | MC: 100 ohms / 120 pF (low output MC) MM: 47 kohms / 120 pF (MM or high output MC) |
| Gain (MM / MC) | 40 dB / 60 dB |
| Output Voltage (typical) | 300 mV / 1 kHz at 3 mV / 1 kHz (MM) or 0.3 mV / 1 kHz (MC) |
| Maximum Output | 9.5 V (1 kHz) |
| Noise Floor (MM / MC) | 94 dB (A-weighted) / 75 dB (A-weighted) |
| THD (MM / MC) | <0.01% / <0.05% |
| RIAA Equalisation Curve Accuracy | 20 Hz - 20 kHz / max. 0.5 dB |
| A/D Converter | Burr Brown PCM2904 16-Bit Delta Sigma |
| Sampling Rates | 32, 44.1, and 48 kHz |
| USB Output | 5-pin mini B connector (USB cable supplied) |
| USB Signal | Digital serial data protocol USB 1.1 |
| Operating Systems | Windows XP®, Vista®, 7®, 8®, Mac OS®, Linux |
| Input / Line Output | 1 pair RCA/Cinch sockets each |
| Outboard Power Supply | 18V / 500mA DC, suitable for your country's mains supply |
| Power Consumption | 100 mA DC |
| Dimensions (W x H x D) | 120 x 32 x 100 mm (115 mm with sockets) |
| Weight | 250 g (without power supply) |
What's in the Box
- Pro-Ject Record Box E phono preamplifier
- Outboard 18V/500mA DC power supply
- USB cable (5-pin mini B)
