Rega Ania MCCartridge

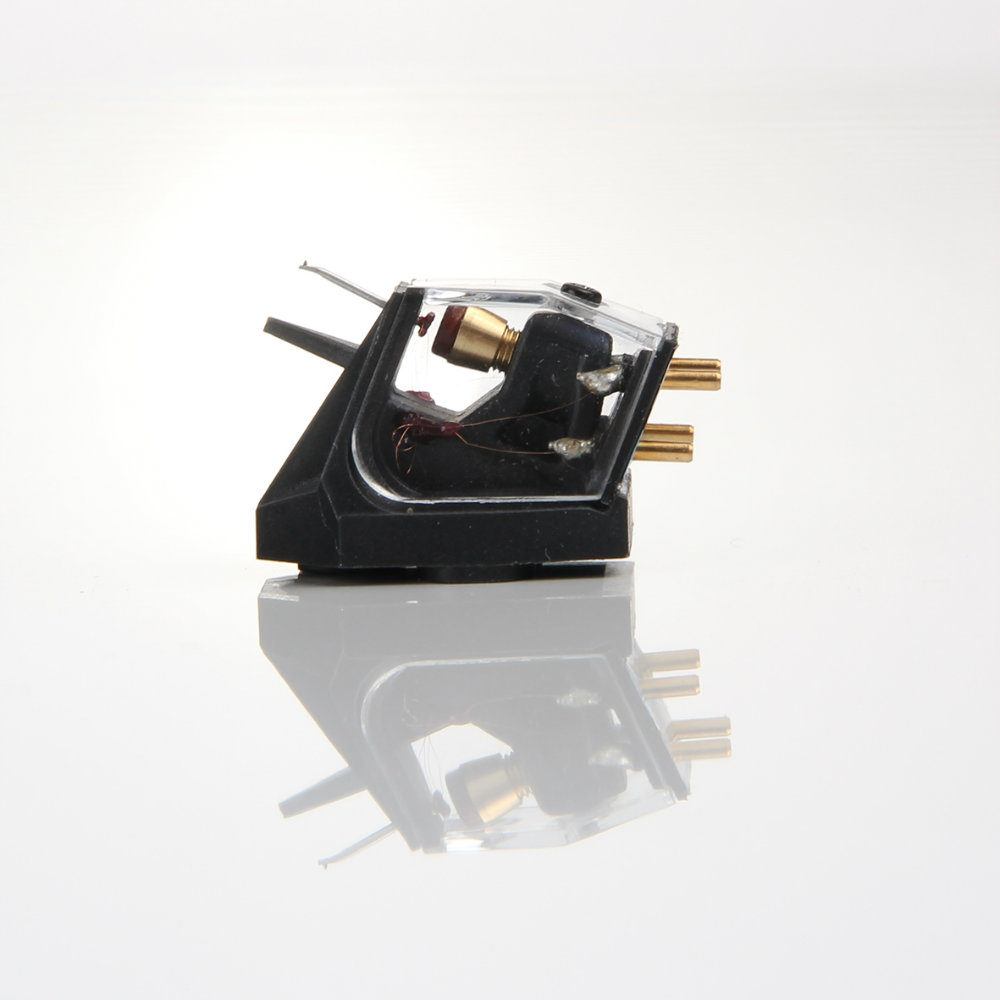

Rega Ania - MC Cartridge

Experience exceptional vinyl playback with the Rega Ania Moving Coil (MC) Cartridge, designed to deliver balanced, dynamic sound and precise tracking for audiophiles and vinyl enthusiasts.

The Ania cartridge draws inspiration from Rega's acclaimed Apheta 2 and Aphelion MC cartridges, featuring a complex hand-wound micro coil housed in a unique Polyphenylene Sulphide (PPS) rigid body. This innovative design ensures accurate construction and uses Rega's three-point fixing method for optimum headshell connection and automatic overhang setting. A CAD-designed clear rigid cover protects the delicate internal wires, making installation safe and risk-free.

Equipped with a super high-powered neodymium magnet and a coil meticulously hand-wound onto an iron cross, the Ania offers superior groove tracking and extracts remarkable detail from vinyl records. It is the perfect partner for Rega Planar 3, Planar 6, or RP8 turntables, with factory-fitted options available on select models—please consult your retailer for details.

Key Features

• Iron cross and micro coil assembly
• One of the world’s smallest MC generators
• Cutting-edge neodymium magnet system
• Elliptical profile diamond-tipped stylus
• Constructed with high-specification 0.018mm fine wire
• High specification stainless steel inserts
• Unique rhomboid pivot cantilever system
• Load settings compatible with adjustable MC stages

Specifications

• Tracking Pressure: 1.75 - 2.00g
• Input Load Impedance: 100 ohms
• Output Impedance: 10 ohms
• Nominal Output Voltage: 350μV
• Channel Balance: ≥ 20μV
• Separation: ≥ -29dB
• Mass: 6g
• Impedance: 100 ohms
• Capacitance: 1000pF
• Gain Setting: High ("On" position for Rega phono stages)

Compatibility

The Ania is designed to work seamlessly with Rega Planar 3, Planar 6, and RP8 turntables. Factory-fitted options are available for some models; please check with your retailer.

Additional Information

Rega’s unique MC cartridge design achieves an ultra-low mass generator without damping wires, utilising a rhomboid pivot cantilever powered by an exclusive neodymium magnet system. The PPS body material, reinforced with 40% glass, offers hardness and dimensional stability, critical for performance and cost efficiency. The intricate injection mould tool used to produce the body was crafted with micron-level precision by expert toolmakers, ensuring the highest quality standards.
